LED-Reverse Light - Q90 compact - 12/24V
Shop rating 4.3, from 4 customer reviews of Agri LightingAvailable to order
-
Ordered in from our supplier
It usually reaches us the next working day and is dispatched the day it arrives - UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- LED
- Lens colour
- Clear
- Light functions
- Reverse light
- IP rating
- IP67, IP69K
About this LED work light
LED-Reverse Light - Q90 compact - 12/24V is a Hella LED work light for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: reverse light. Mounting: bolted. It carries R23 / R10 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is A25-005621 (previously PT/996284511), and it replaces or is equivalent to 2ZR 996 284-511, 5333690, 3005444, 3005554.
The Q90 LED compact reversing spotlight is the ideal LED reversing spotlight that combines powerful light output in a practical design. Four high-power LEDs generate a light output of 1,200 lumens, which are beamed homogeneously and broadly behind the vehicle by a reflector. The Q90 LED compact reversing spotlight is ideally suited for mounting on the rear of the vehicle to enable safe manoeuvring even at night. The energy consumption is only 15 watts (in comparison: Standard halogen worklight H3 / 55 W). The low energy consumption is particularly suitable for use on vehicles with battery operation and on vehicles whose alternator is already heavily loaded. Reversing lights are exposed to particularly high demands such as water, salt and stone impact. Thanks to the innovative heat-conducting plastic housing, the Q90 LED compact reversing spotlight is optimally protected against corrosion and can withstand even the toughest conditions. With 5,000 Kelvin colour temperature, the light of the LED reversing spotlight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue.
- Four high-power LEDs generate a light output of 1,000 lumens, which is homogeneously and widely illuminated behind the vehicle by a reflector.
- This headlamp is ideal for mounting on the rear of the vehicle to enable safe manoeuvring at night.
- The energy consumption is only 15 watts, making it particularly suitable for use on battery-powered vehicles and vehicles whose alternator is already heavily loaded.
- The Q90 compact LED reversing spotlight is perfectly protected against corrosion thanks to the innovative Thermo Pro plastic housing and withstands even the toughest conditions.
- With a colour temperature of 6,500 Kelvin, the light is very similar to daylight. This means that colours differ more clearly in the dark than in the yellowish light of halogen bulbs.
- Lamp Type: LED - Number of LEDs: 4 - Power consumption: 15W - Colour Temperature: 5000K
- Light functions: 1 - with reverse light (LED) - Lens Colour: Crystal clear - Fitting Position: Rear
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | LED |
| Lens colour | Clear |
| Light functions | Reverse light |
| IP rating | IP67, IP69K |
| Mounting | Bolted |
| Fastening | Suspended / Vertical |
| Bulb type | LED |
| Fitting position | Rear |

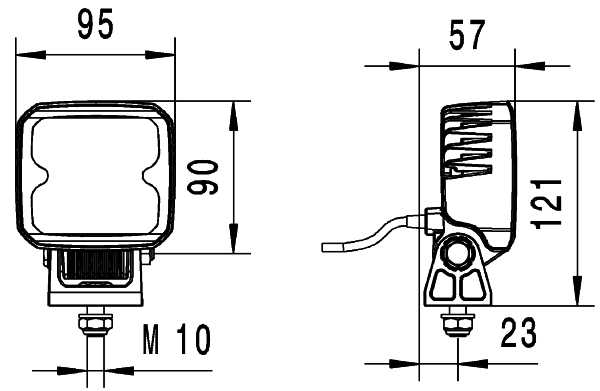

| Width | 95 mm |
| Length | 139 mm |
| Light distribution | Short distance lighting |
| ECE approval | R23 / R10 |

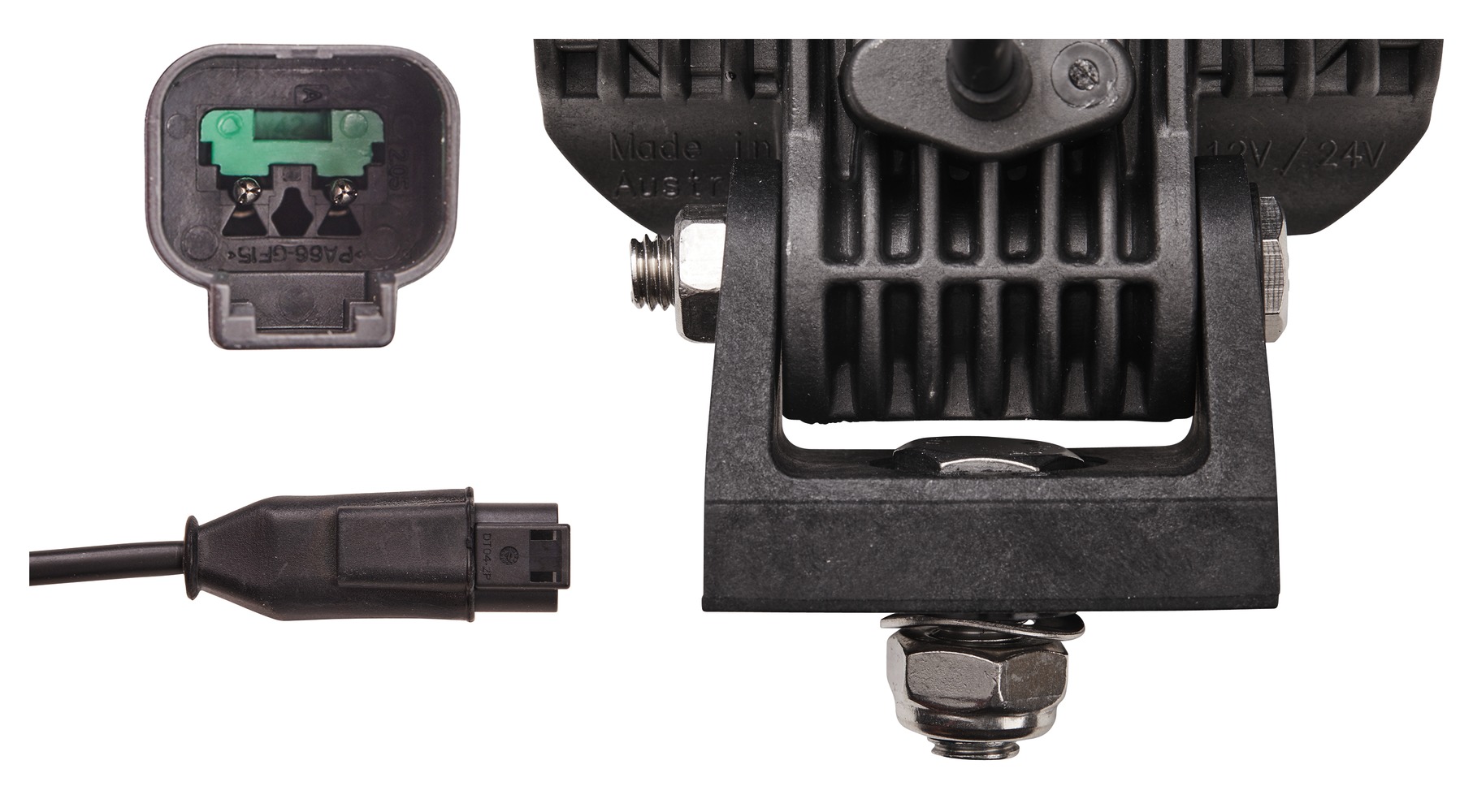

| Connector | DEUTSCH plug |
| Luminous flux | 1000 lm |
| Colour temperature | 5000 K |
| Cable | 500 mm |
| Number of LEDs | 4 |
| Housing colour | black |
| Power consumption | 15 W |
| Number of pins | 2 -pin connector |
| Weight | 393 g |
| Part number | A25-005621 |
| Brand | Hella |
Part numbers
Our part number for this item is A25-005621. It was previously listed as PT/996284511, and either number finds it in the search.
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 2ZR 996 284-511
- 5333690
- 3005444
- 3005554
