Hella Part no. A25-005640 Previously PT/996376091

LED-Reverse Light - Modul 70 Gen. III - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£78.60 ex VAT
£94.32 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
Reverse light
IP rating
IP67, IP69K

About this LED work light

LED-Reverse Light - Modul 70 Gen. III - 12/24V is a Hella LED work light for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: reverse light. Mounting: bracket mounting / mounting. It carries R23 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005640 (previously PT/996376091), and it replaces or is equivalent to 2ZR 996 376-091, 5644073, 1126574, 5363120.

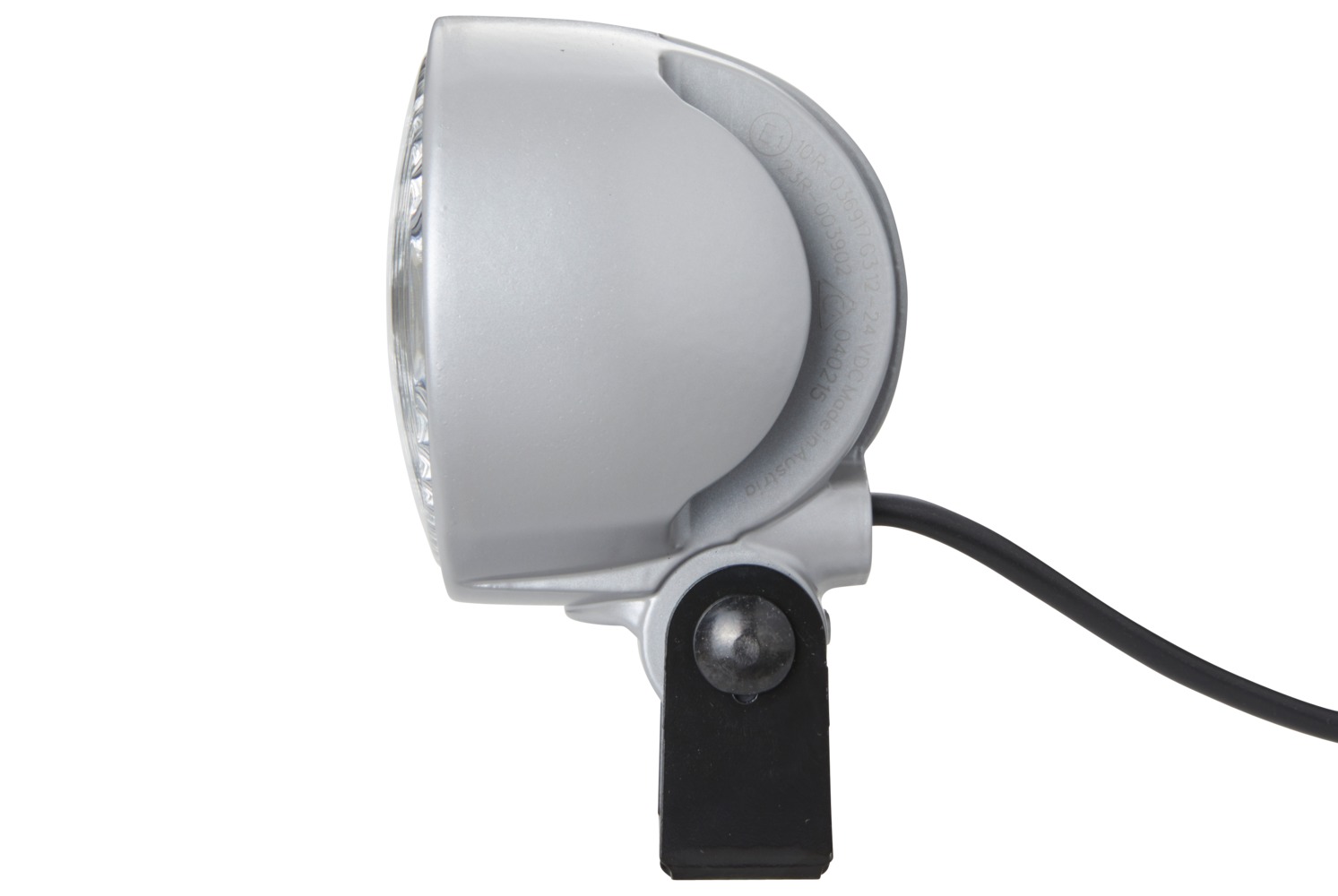

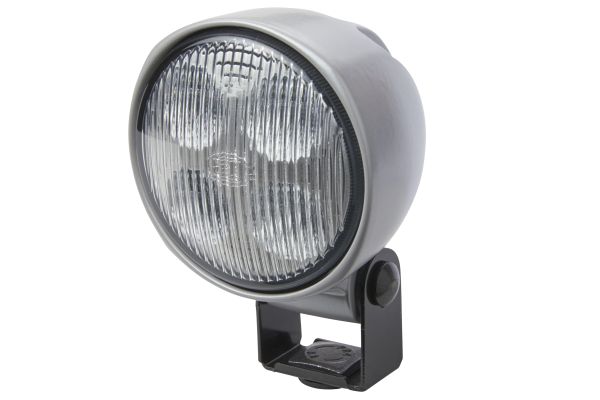

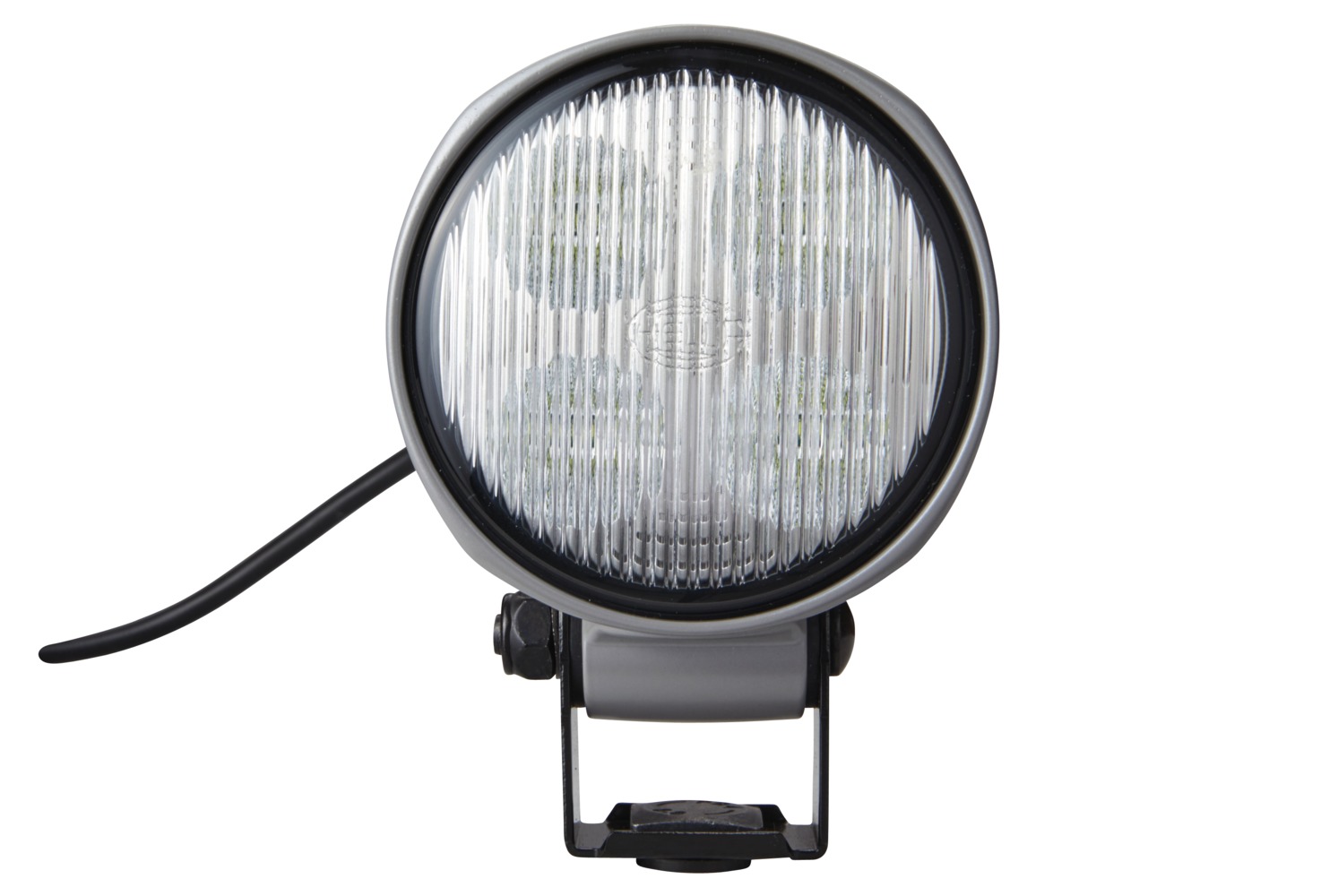

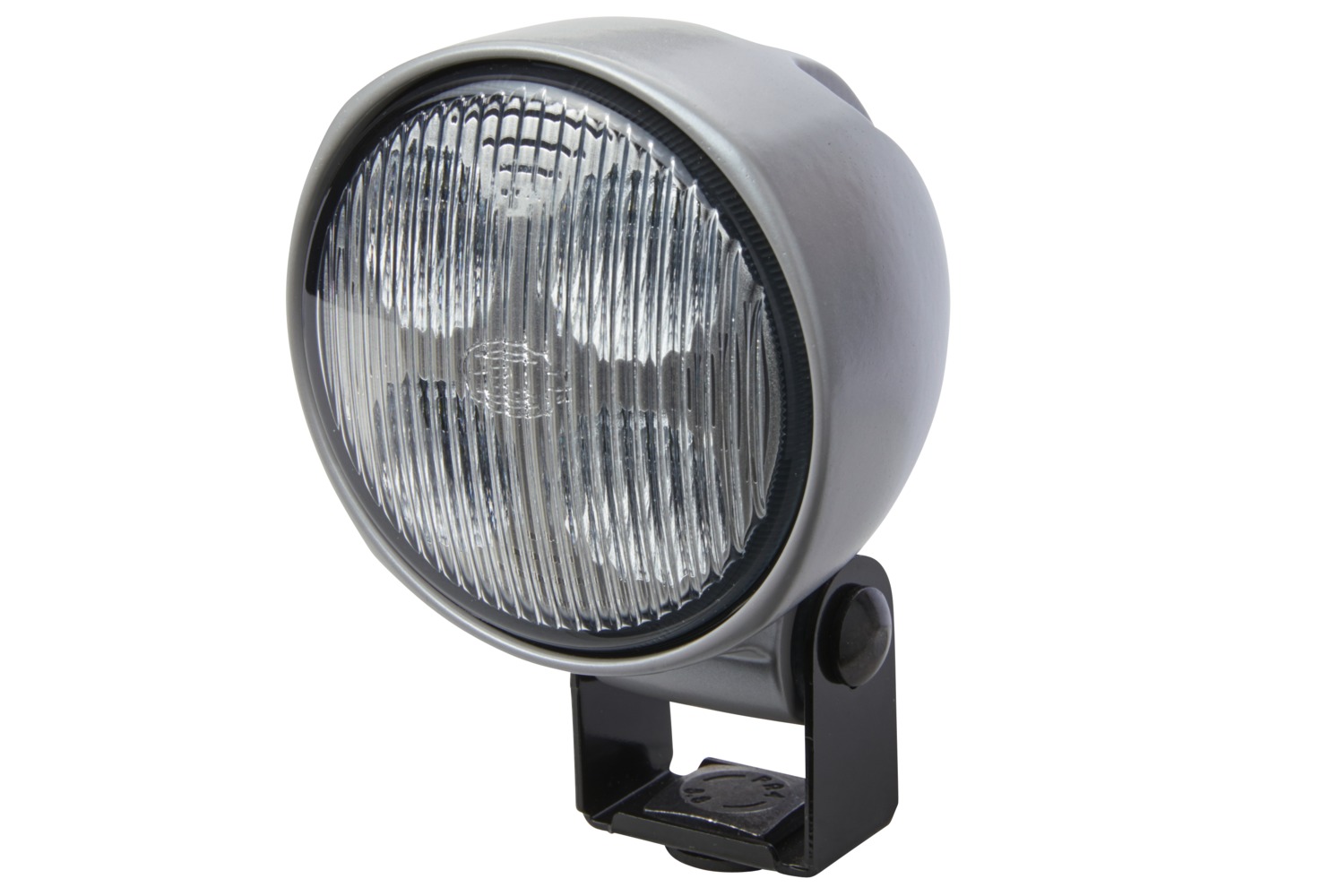

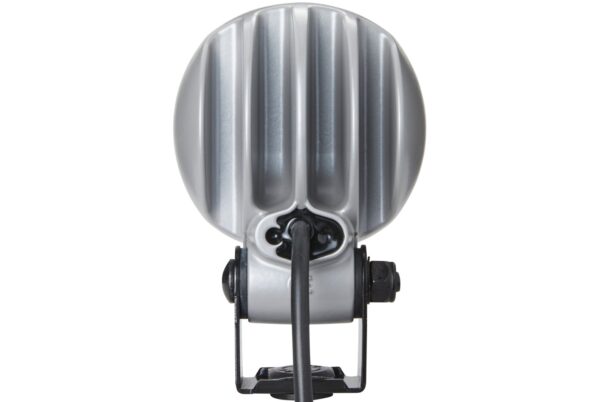

The Module 70 LED Generation III reversing spotlight uses four high-power LEDs as a light source. The LEDs are multivolt-compatible (12 and 24 V). Due to its low power consumption, this LED reversing spotlight is ideal for use on vehicles with battery operation or whose alternator is already heavily loaded. The Module 70 LED Gen. III Reversing light is resistant to shocks, vibrations, stone chips and salt. The reversing spotlight does not require any maintenance after installation. With 5,700 Kelvin, the light of the LED reversing spotlight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The grey powder-coated housing of this reversing spotlight is made of aluminium and has cooling fins. These ensure the necessary heat dissipation of the four high-performance LEDs. This is the only way to ensure the long service life of the LED. Due to its compact dimensions, the Modul 70 LED Gen. III Reversing spotlight is perfectly suited for mounting situations where space is at a premium.

  • This reversing spotlight uses four high-power LEDs as light source. The LEDs are multi-voltage capable (12V and 24V).
  • Thanks to its low power consumption, the Modul 70 LED reversing spotlight is ideal for use on battery-powered vehicles or whose alternator is already heavily loaded.
  • The Modul 70 LED is absolutely resistant to shocks, vibrations, stone chipping and salt.
  • At 5,700 Kelvin, the light is very similar to daylight. This means that colours differ more clearly in the dark than in the yellowish light of halogen bulbs.
  • The reversing light requires no maintenance after installation.
  • Lamp Type: LED - Number of LEDs: 4 - Power consumption: 13W - Colour Temperature: 5000K
  • Light functions: 1 - with reverse light (LED) - Lens Colour: Crystal clear - Fitting Position: Rear

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsReverse light
IP ratingIP67, IP69K
MountingBracket mounting / mounting
FasteningVertical / Suspended
Bulb typeLED
Fitting positionRear
Width83 mm
Length123 mm
Ø83 mm
Light distributionShort distance lighting
ECE approvalR23 / R10

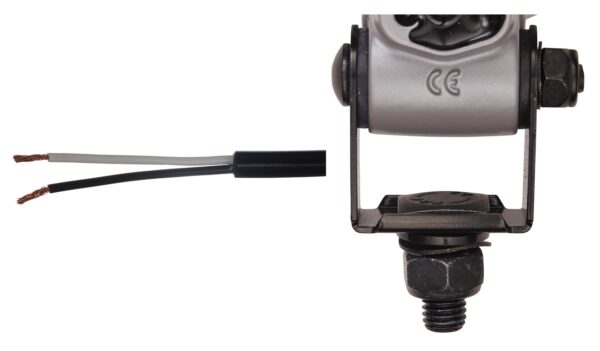

Connectoropen cable ends
Luminous flux800 lm
Colour temperature5000 K
Cable2000 mm
Number of LEDs4
Housing colourgrey
Power consumption13 W
Number of pins2 -pin connector
Weight533 g
Part numberA25-005640
BrandHella

Part numbers

Our part number for this item is A25-005640. It was previously listed as PT/996376091, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2ZR 996 376-091
  • 5644073
  • 1126574
  • 5363120
