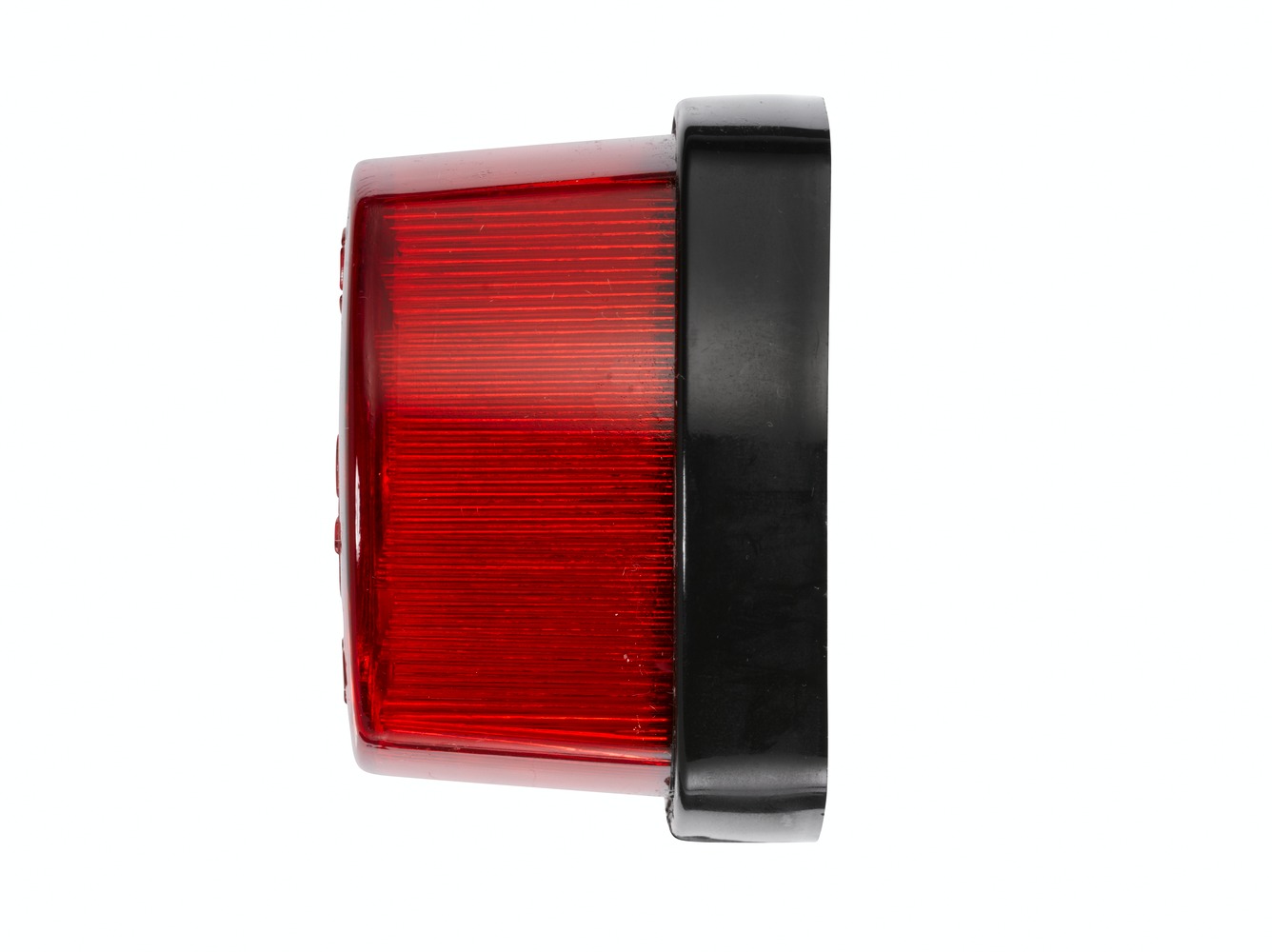

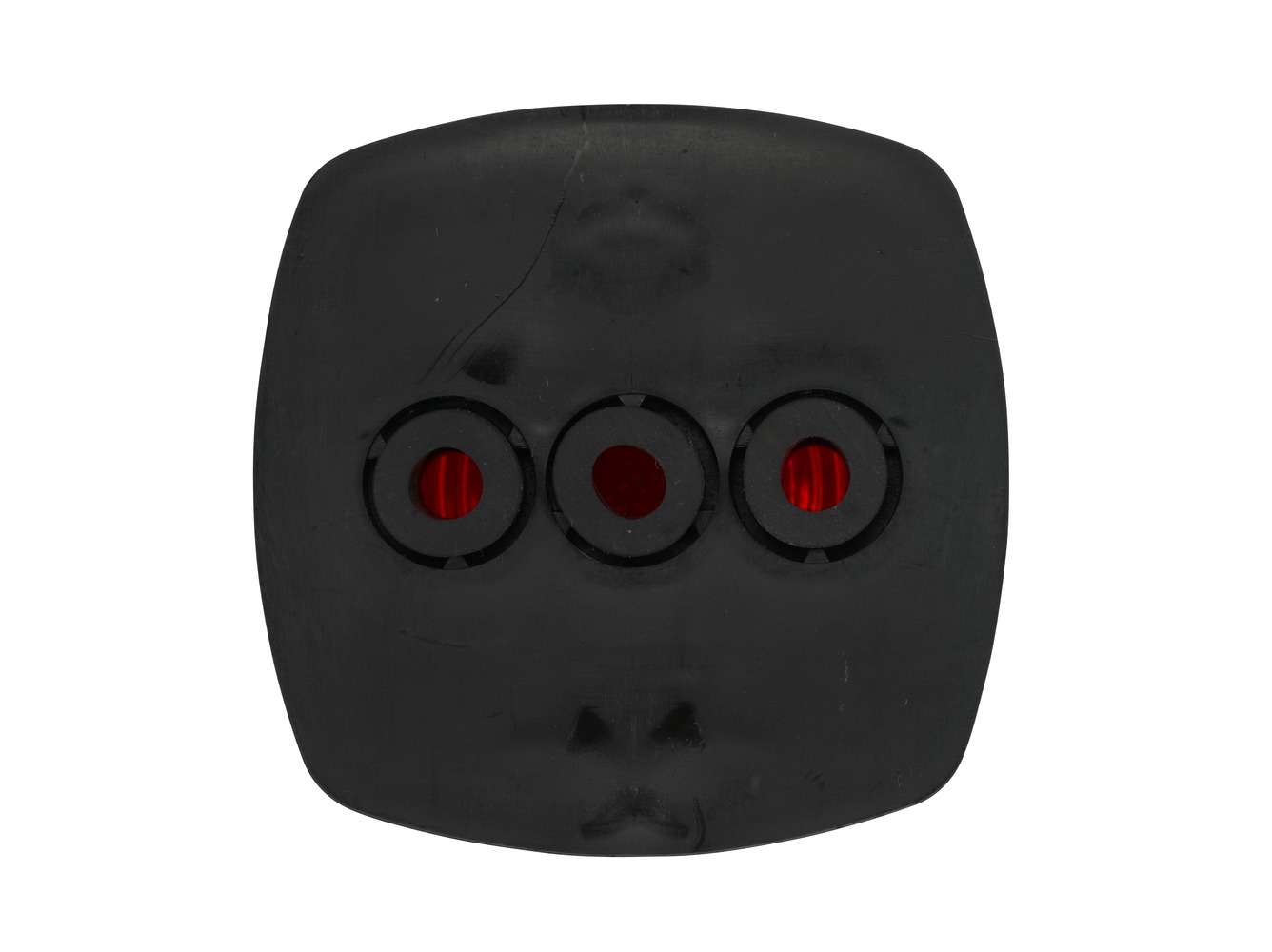

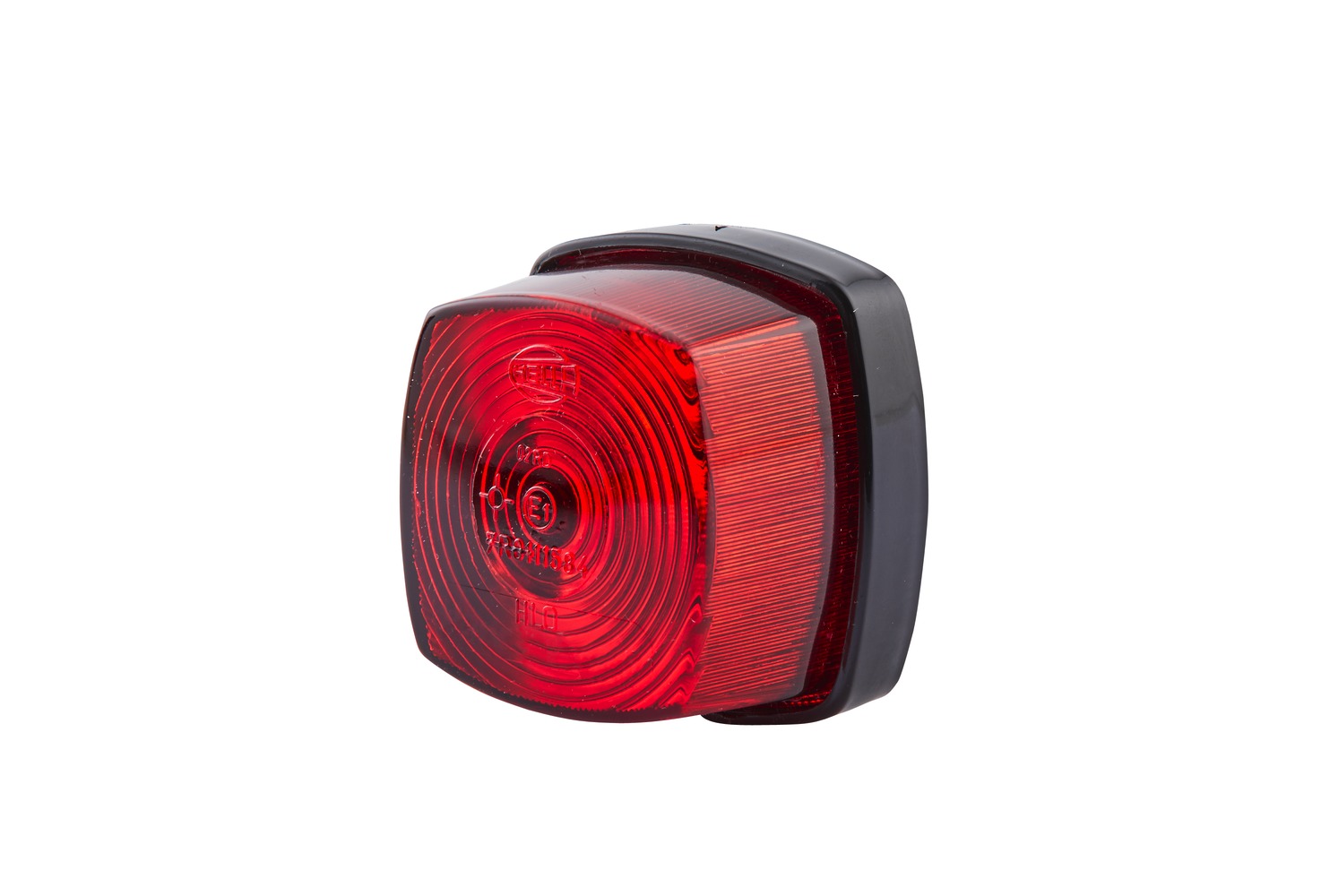

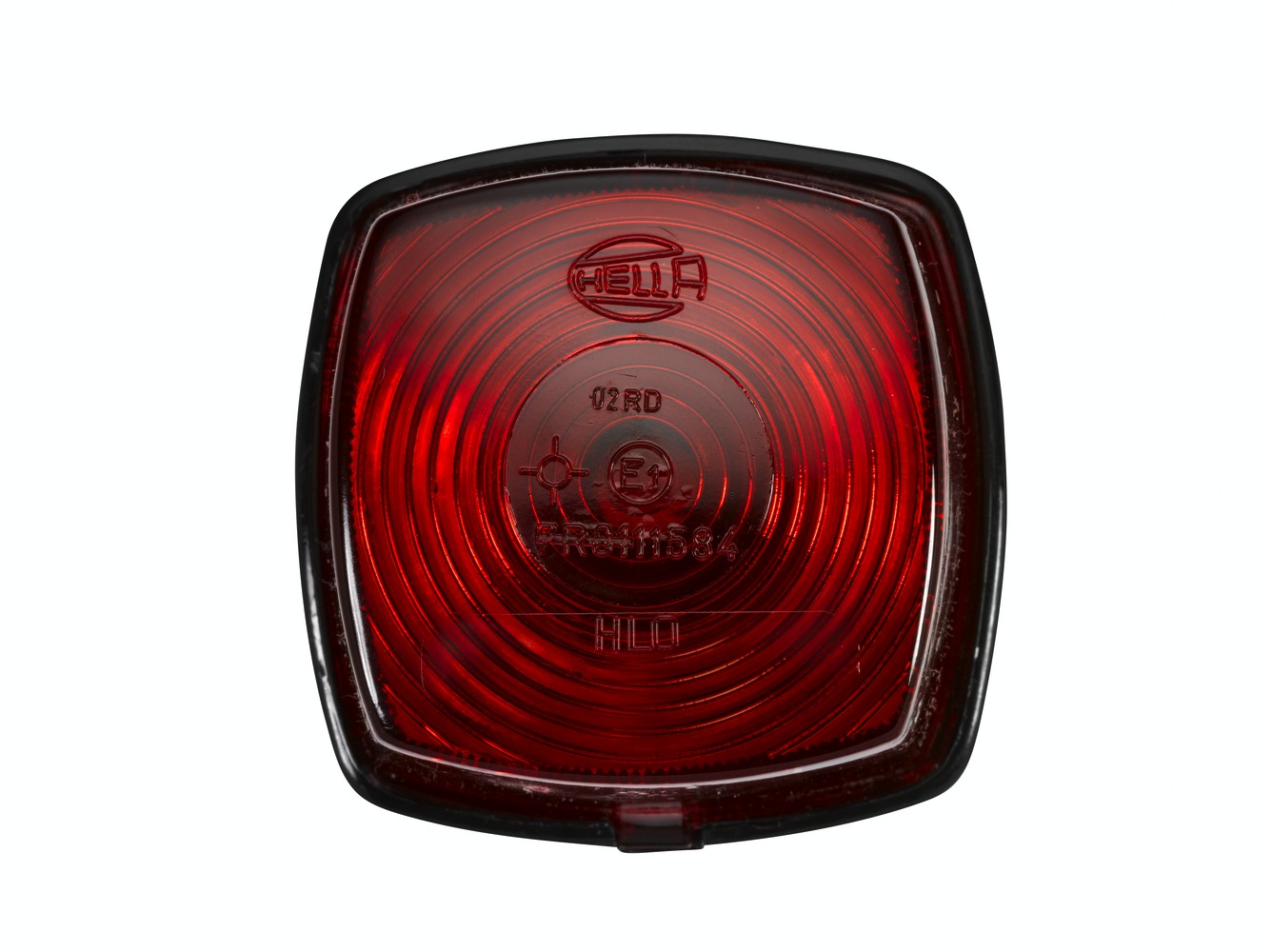

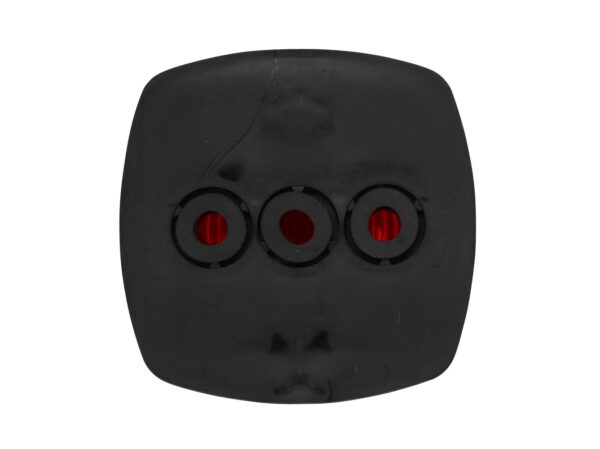

Tail Light - Halogen - 24/12V

Hella Part no. A25-000511 Previously PT/003057021

Tail Light - Halogen - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£5.18 ex VAT
£6.22 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £3.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Red
Light functions
Tail light
IP rating
IP54K

About this rear lamps led

Tail Light - Halogen - 24/12V is a Hella rear lamps led for 12/24V electrical systems. The light source is LED, the lens is red, the housing is sealed to IP54K. Light functions: tail light. Mounting: mounting. It carries R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000511 (previously PT/003057021), and it replaces or is equivalent to 2SA 003 057-021, 6961, 406961, 1427049, 81252256162, 17057021 and 28 more.

HELLA combination rear lights. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rear lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

  • Halogen tail light for rear mounting (horizontal / vertical, left / right) - with ECE approval
  • The tail light has 1 light function: Bringing up the rear

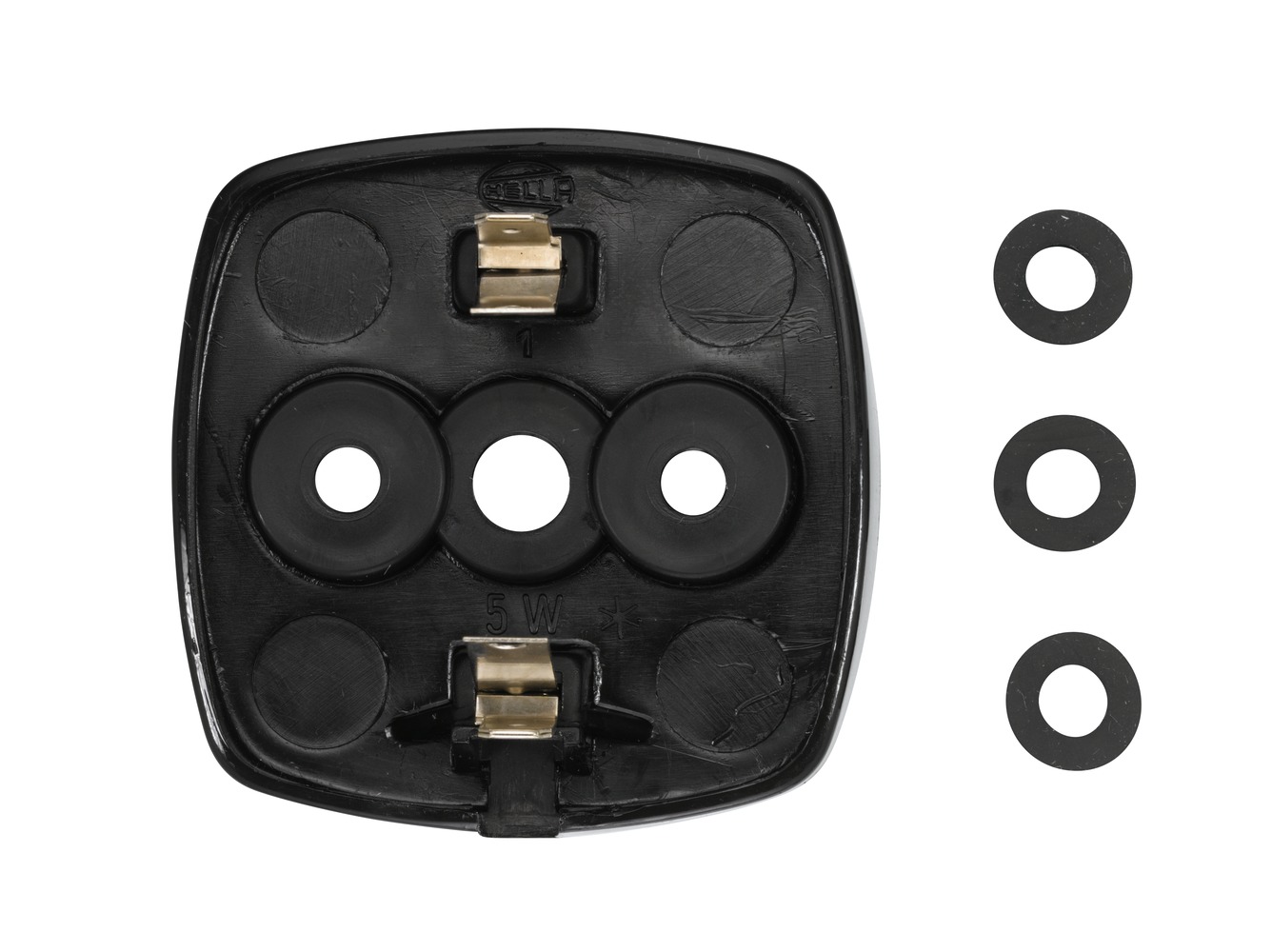

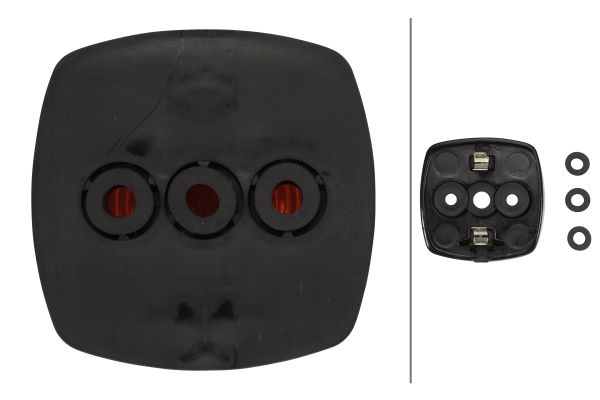

  • Lamp type: C5W, without bulbs, plastic base plate, 2 holes for fixing screws M5, luminaire can also be mounted double
  • Length: 40mm - Width: 52mm - Height: 52mm - Lamp Type: C5W - without bulbs
  • Light functions: 1 - with taillight
  • Registration Type: ECE - fulfils ECE norm: R7 - Prot.type (IP Code): IP5K4K/IPX9K
  • Housing Colour: Black - Lens Colour: Red

Specifications

Voltage12/24V
TechnologyLED
Lens colourRed
Light functionsTail light
IP ratingIP54K
Mountingmounting
Fasteningfor vertical fastening / for horizontal fastening
Bulb typeC5W
Fitting positionleft / Right Rear / right / Left Rear
Height52 mm
Width52 mm
Length40 mm
ConnectorMale
ECE approvalR7
Housing colourblack
Power consumption5 W
Weight48 g
Part numberA25-000511
BrandHella

Part numbers

Our part number for this item is A25-000511. It was previously listed as PT/003057021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2SA 003 057-021
  • 6961
  • 406961
  • 1427049
  • 81252256162
  • 17057021
  • 1906703
  • 10597957
  • 8519965
  • 99708519965
  • 122170
  • 1334
  • 14583023
  • 6262011
  • 6515208
  • CC6262011
  • 6003035
  • 607134008
  • 1345462
  • 5033598
  • 1144
  • 402051
  • 1026287
  • 8176200
  • 16028430
  • 28306760
  • NA099
  • 1020000361
  • 30000108
  • 99700167
  • 3401400
  • 30061079
  • I024160
  • W270005747

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £3.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
