Rearlight - EasyConn I - Bulb - 24V

Hella Part no. A25-004073 Previously PT/340930031

Rearlight - EasyConn I - Bulb - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£51.84 ex VAT
£62.21 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
Bulb
Lens colour
Red
Light functions
Brake light, Fog light, Indicator, Reflector, Reverse light, Side marker, Tail light
IP rating
IP54K

About this rear lamps bulb

Rearlight - EasyConn I - Bulb - 24V is a Hella rear lamps bulb for 24V electrical systems. The light source is Bulb, the lens is red, the housing is sealed to IP54K. Light functions: brake light, fog light, indicator, reflector, reverse light, side marker, tail light. Mounting: bolted / mounting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004073 (previously PT/340930031), and it replaces or is equivalent to 2VP 340 930-031, 906598, 7100423, 31643.

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

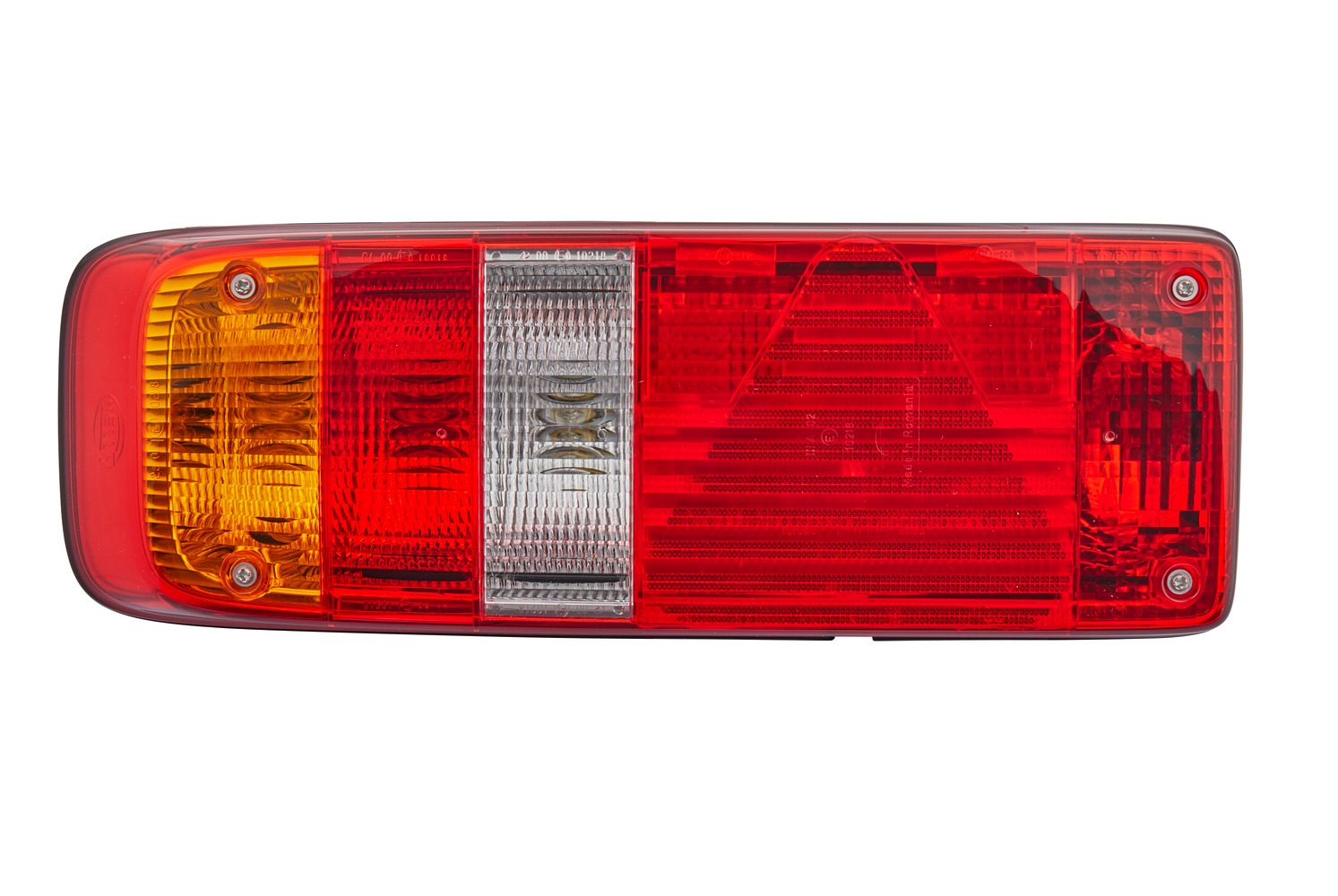

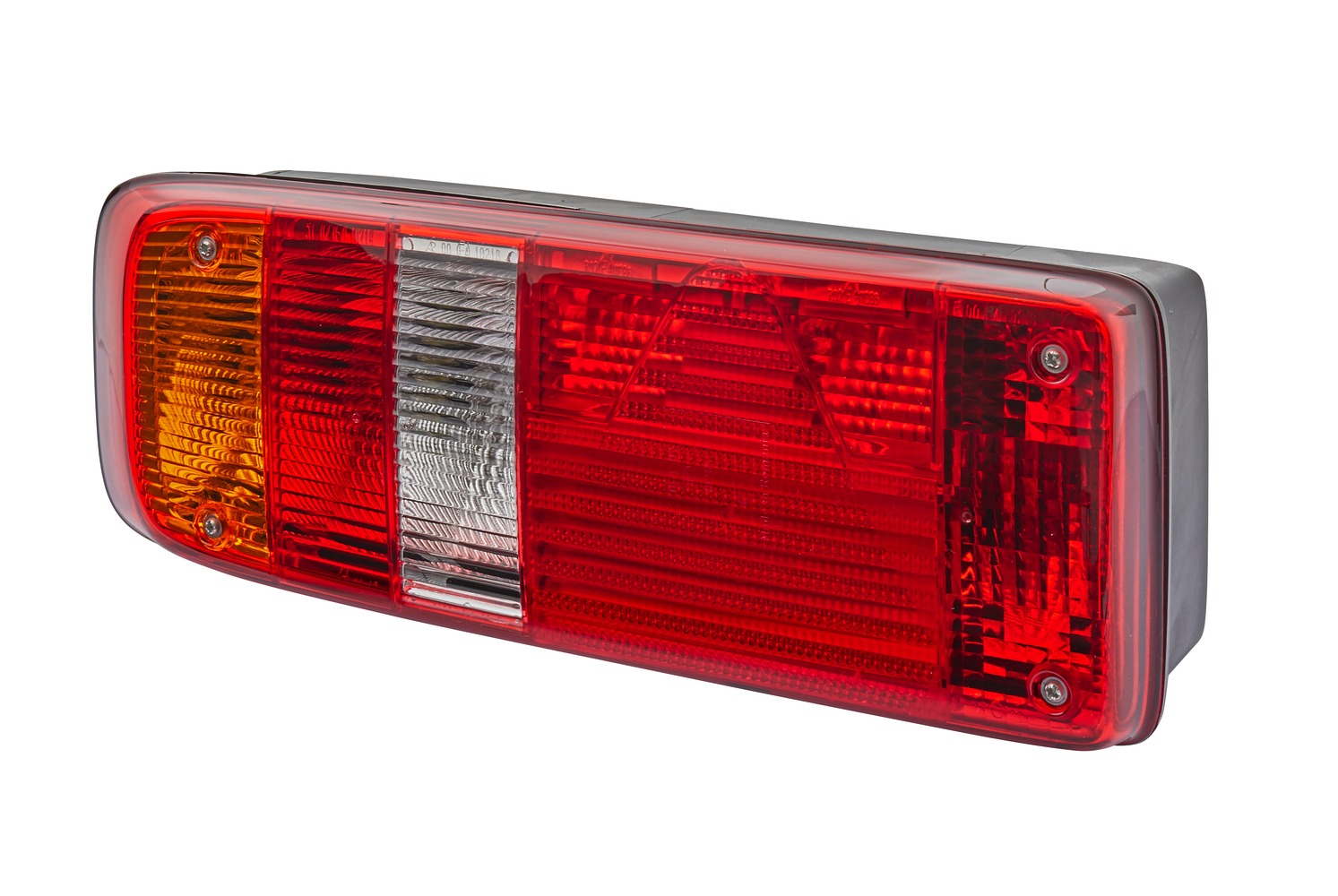

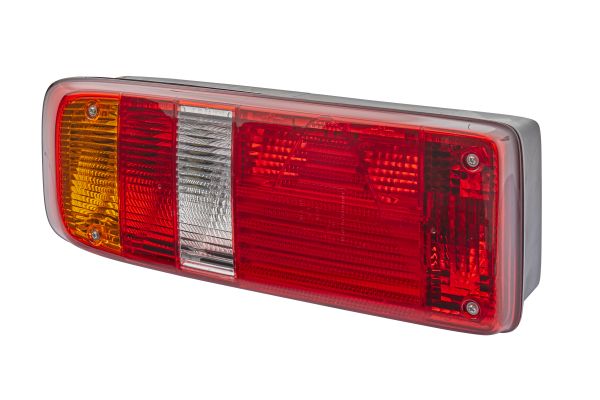

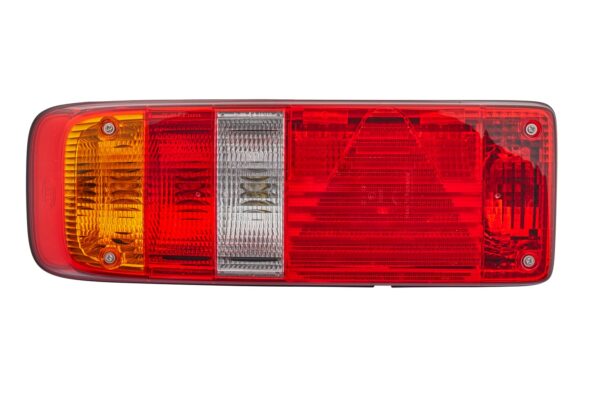

  • Tail-triangular reflector-stop-indicator-fog-reverse side marker-reflector EasyConn I for horizontal surface-mounting on trailers (left) - with ECE approval, ADR/GGVS-tested
  • The combination rearlight has 7 light functions: Tail light / stop light / indicator / rear fog light / reversing light / side marker light / reflex reflectors

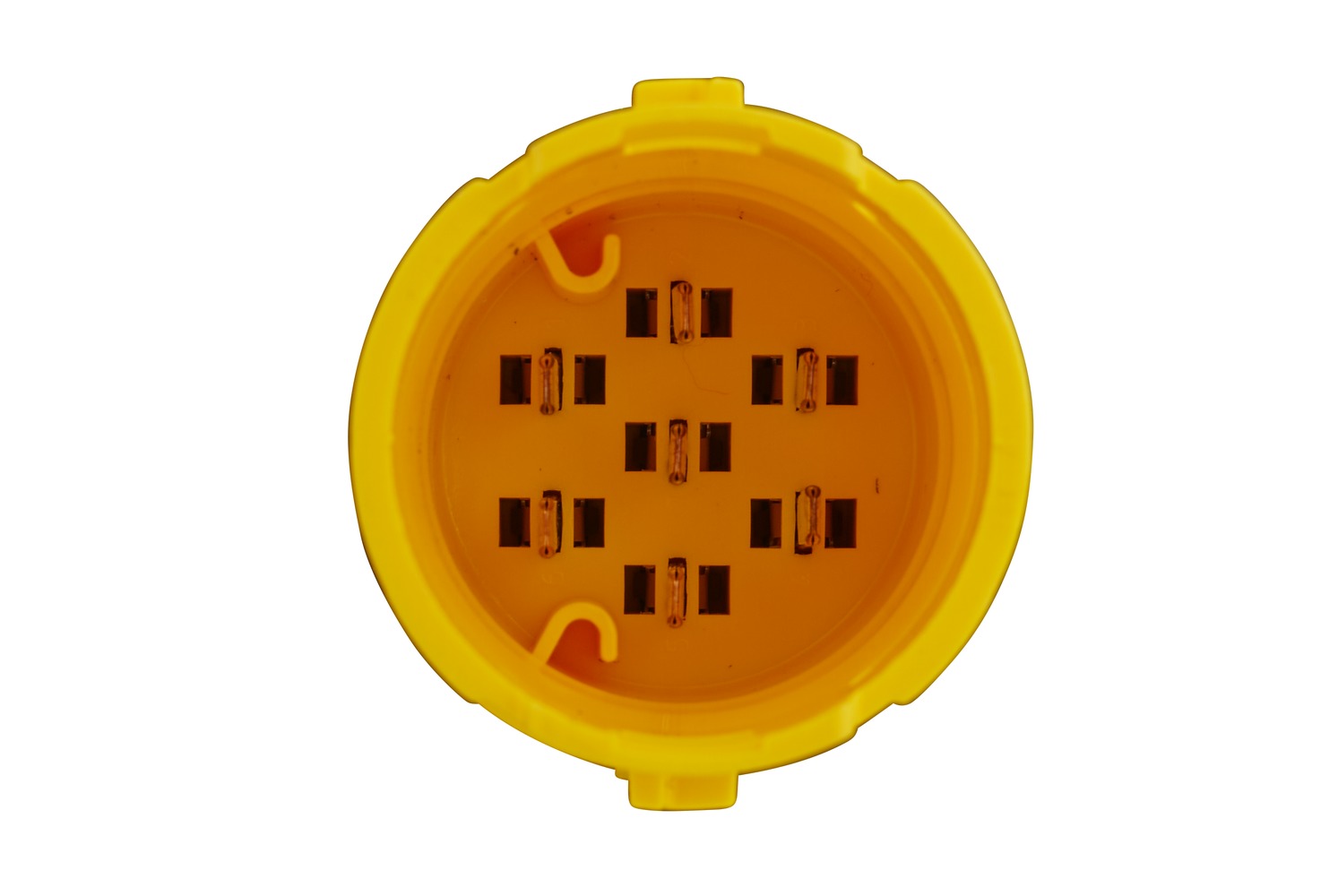

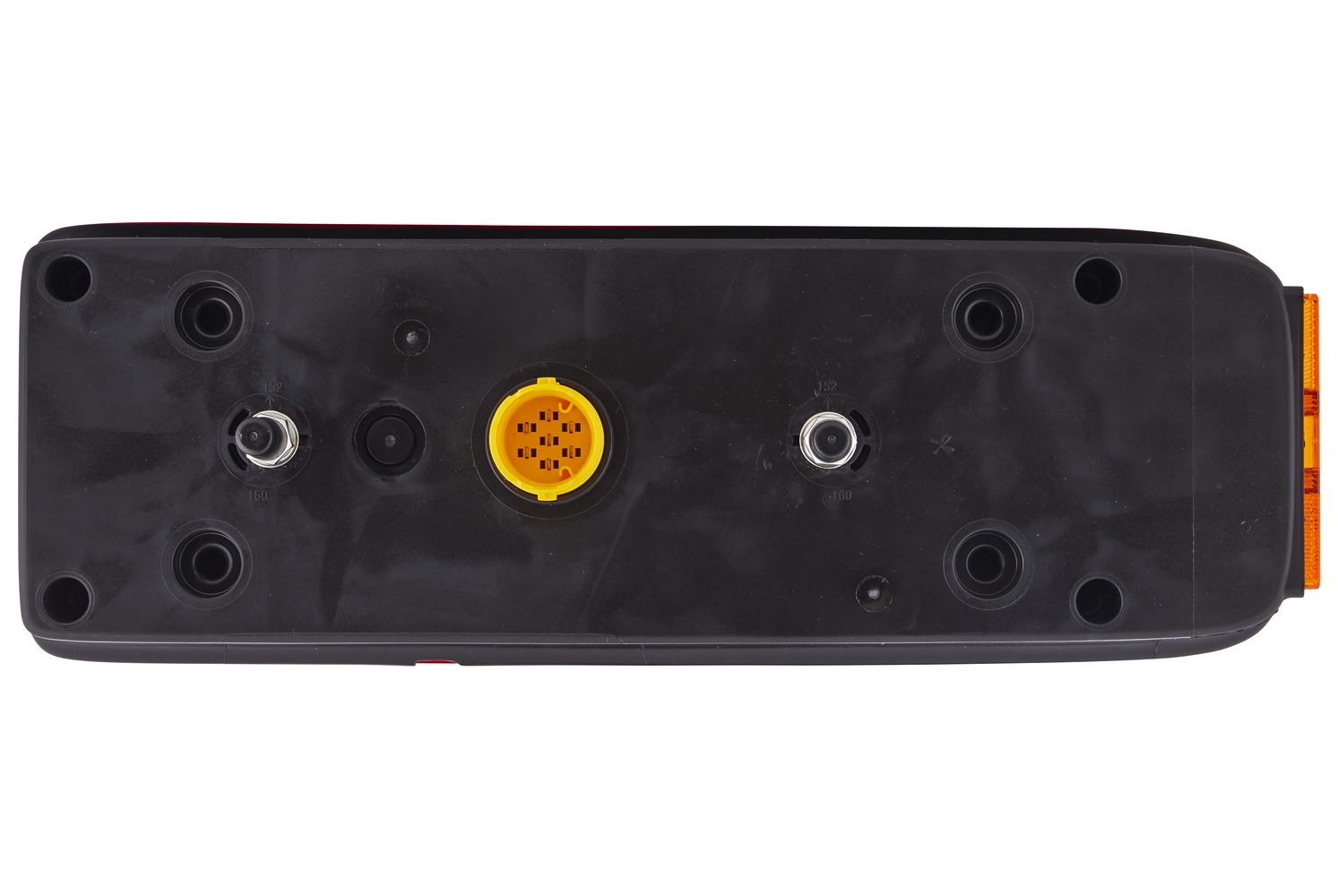

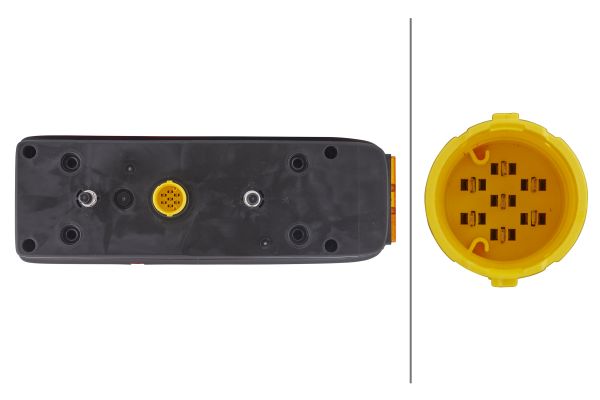

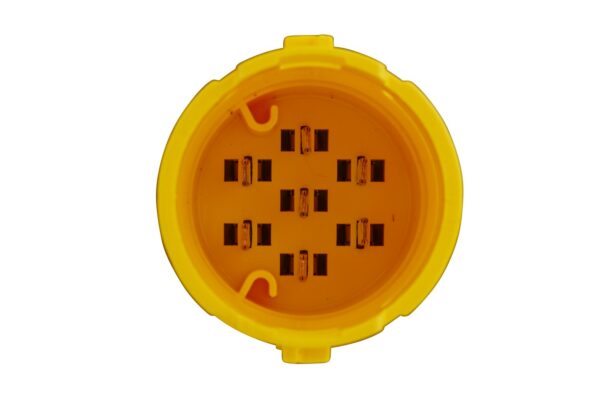

  • Lamp type: P21W/R10W, with 7-pole EasyConn central plug, 4 integrated vibration dampers and 24V bulbs, black plastic housing, 2 M8 fixing screws
  • Length: 370mm - Width: 130mm - Height: 85mm - Lamp Type: R10W/P21W - with bulbs/for trailer

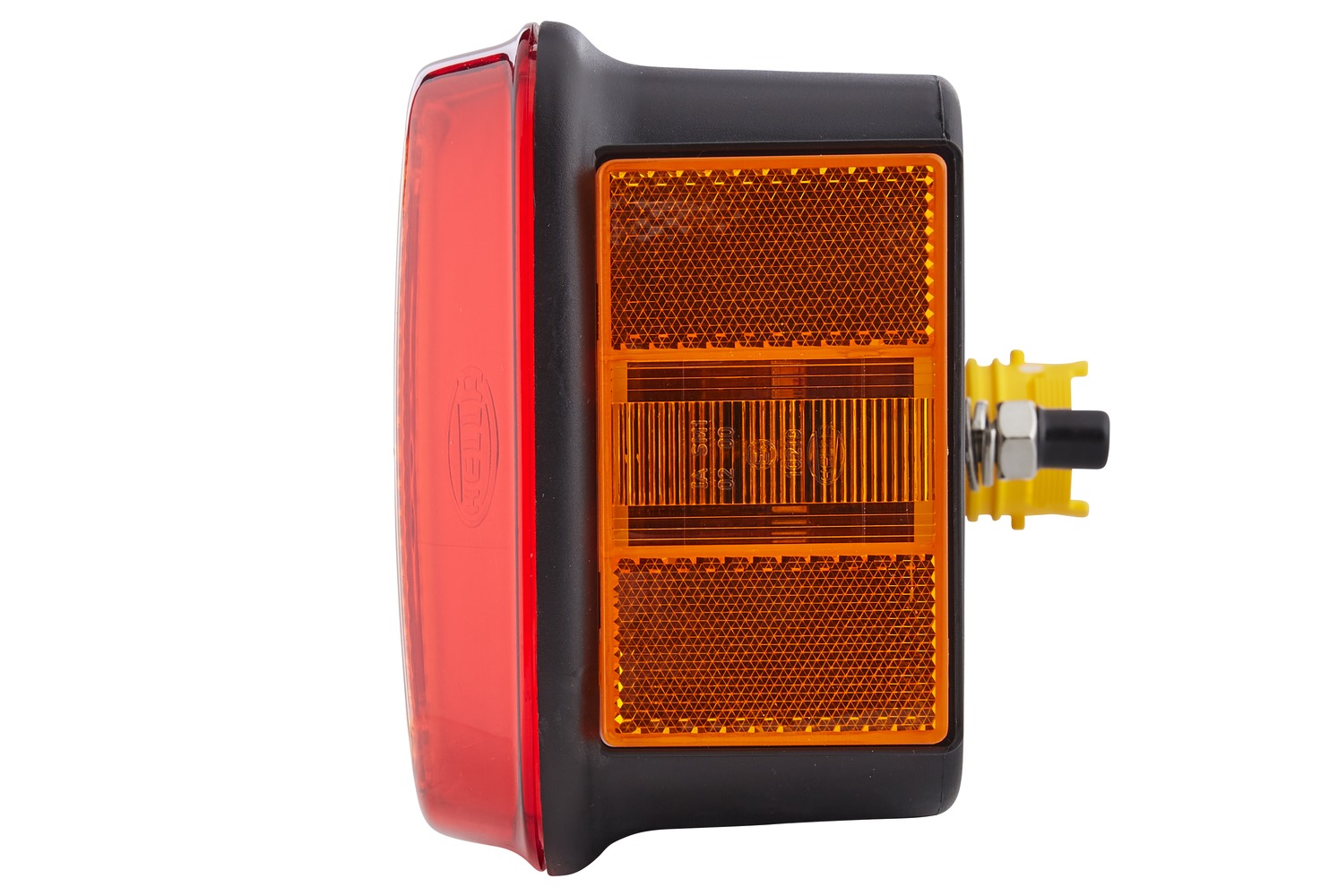

  • Light functions: 7 - with stop light/with rear fog light/with reverse light/with side marker light/with taillight/with indicator/with reflector
  • Registration Type: ECE/ADR/GGVS/no SAE - Prot.type (IP Code): IP5K4K
  • Housing Colour: Black - Lens Colour: Multi-coloured

Specifications

Voltage24V
TechnologyBulb
Lens colourRed
Light functionsBrake light, Fog light, Indicator, Reflector, Reverse light, Side marker, Tail light
IP ratingIP54K
MountingBolted / mounting
Fasteningfor horizontal fastening
Bulb typeP21W / R10W
Fitting positionleft
Height85 mm
Width130 mm
Length370 mm
ConnectorMale
Housing colourBlack
Weight917 g
Part numberA25-004073
BrandHella

Part numbers

Our part number for this item is A25-004073. It was previously listed as PT/340930031, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2VP 340 930-031
  • 906598
  • 7100423
  • 31643

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
