Rearlight - Bulb - 24V

Hella Part no. A25-004020 Previously PT/340101011

Rearlight - Bulb - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£50.52 ex VAT
£60.62 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
Bulb
Lens colour
Red
Light functions
Brake light, Fog light, Indicator, Reflector, Reverse light, Side marker, Tail light

About this rear lamps bulb

Rearlight - Bulb - 24V is a Hella rear lamps bulb for 24V electrical systems. The light source is Bulb, the lens is red. Light functions: brake light, fog light, indicator, reflector, reverse light, side marker, tail light. Mounting: bolted / mounting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004020 (previously PT/340101011), and it replaces or is equivalent to 2SK 340 101-011, 867492, 2197480, 80333423, 40061, 63392 and 5 more.

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

  • Tail-stop-indicator-fog-reversing side marker-reflector lamp for horizontal mounting on trailers (left / right) - with ECE approval, ADR/GGVS-tested
  • The combination rearlight has 7 light functions: Brake / tail / indicator / rear fog / reversing / side marker light / reflex reflectors

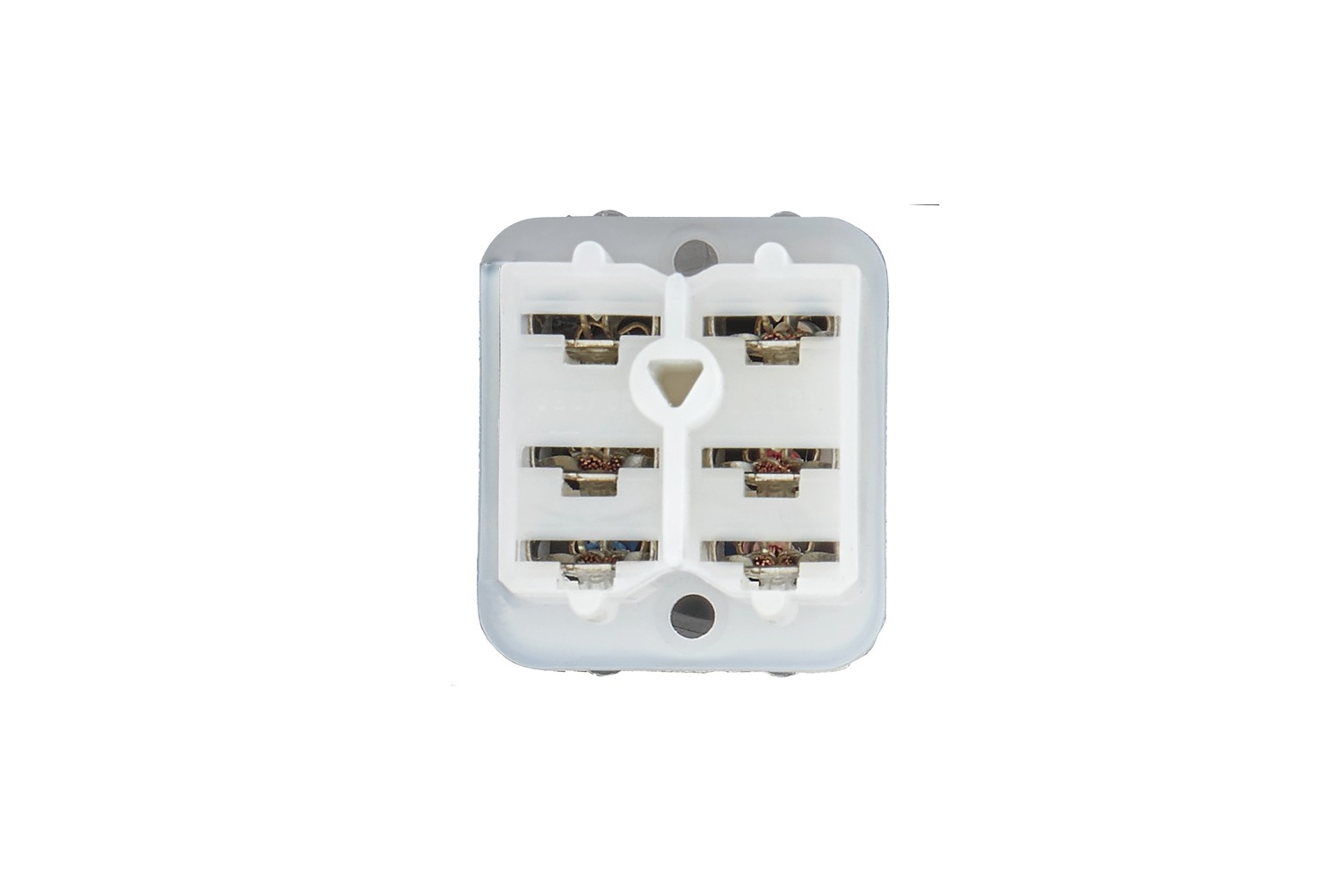

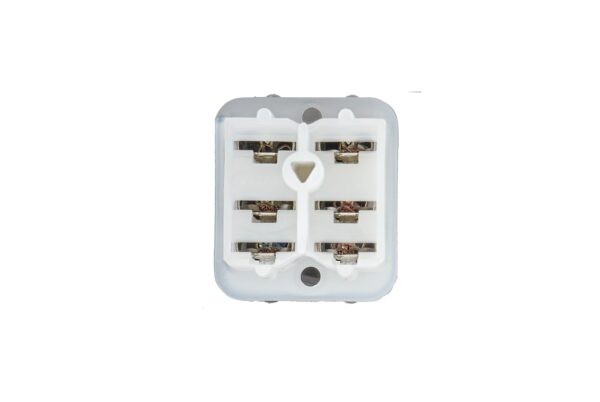

  • Lamp type: C5W/P21W/R10W, with 24V bulbs, vibration damping and earth wire, with 1.4 m long wire and 6-pole plug, black plastic housing, 2 fixing screws
  • Length: 439mm - Width: 130mm - Height: 94mm - Lamp Type: P21W/R10W/C5W - with bulbs
  • Light functions: 7 - with side marker light/with indicator/with reflector/with stop light/with taillight/with rear fog light/with reverse light
  • Registration Type: ECE/ADR/GGVS
  • Lens Colour: Multi-coloured

Specifications

Voltage24V
TechnologyBulb
Lens colourRed
Light functionsBrake light, Fog light, Indicator, Reflector, Reverse light, Side marker, Tail light
MountingBolted / mounting
Bulb typeP21W / C5W / R10W
Fitting positionleft / right
Height94 mm
Width130 mm
Length439 mm
Connectoropen cable ends
Cable1400 mm
Weight1.55 kg
Part numberA25-004020
BrandHella

Part numbers

Our part number for this item is A25-004020. It was previously listed as PT/340101011, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2SK 340 101-011
  • 867492
  • 2197480
  • 80333423
  • 40061
  • 63392
  • ELO0070004
  • 46823
  • 333402
  • 333423
  • 335241

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
