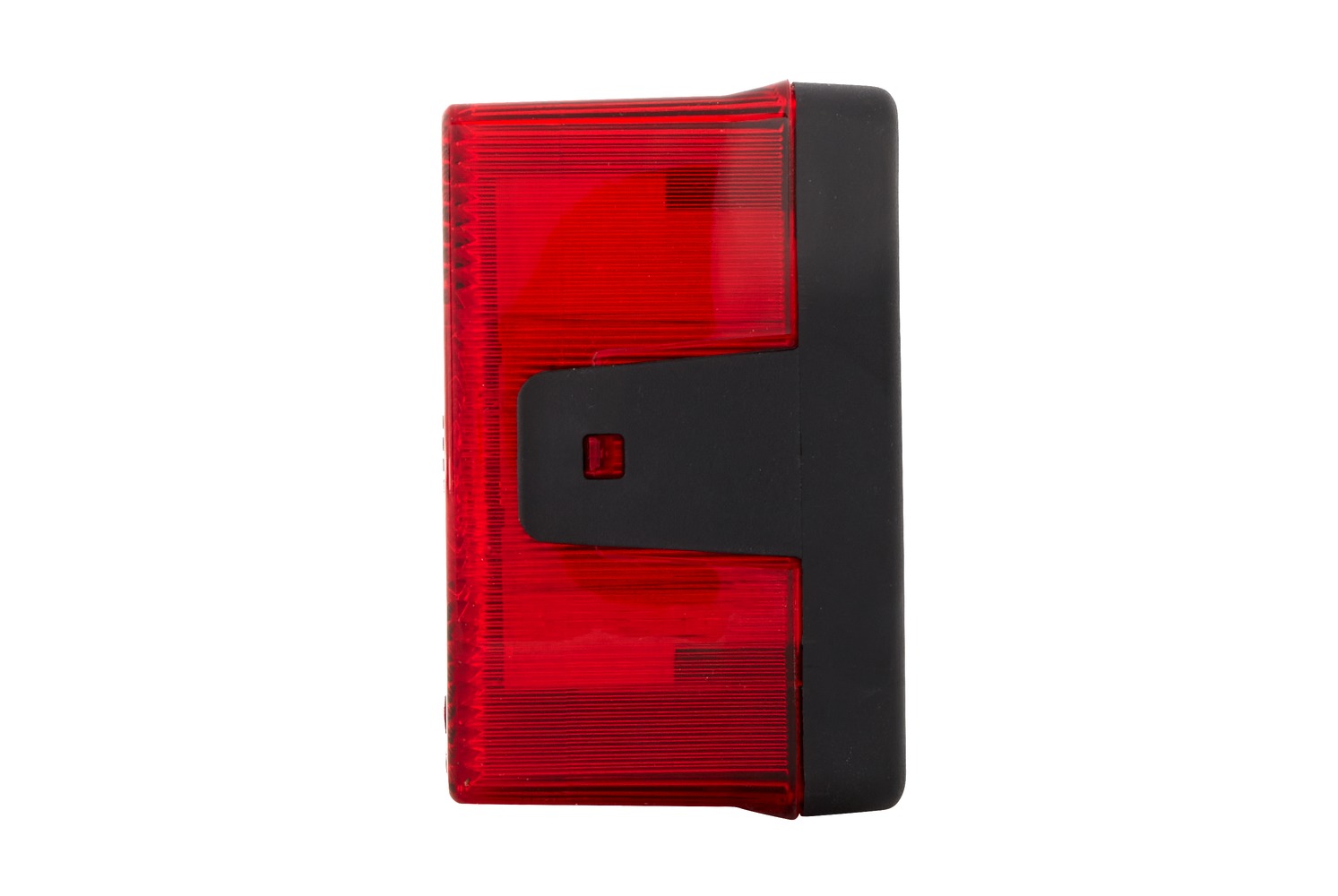

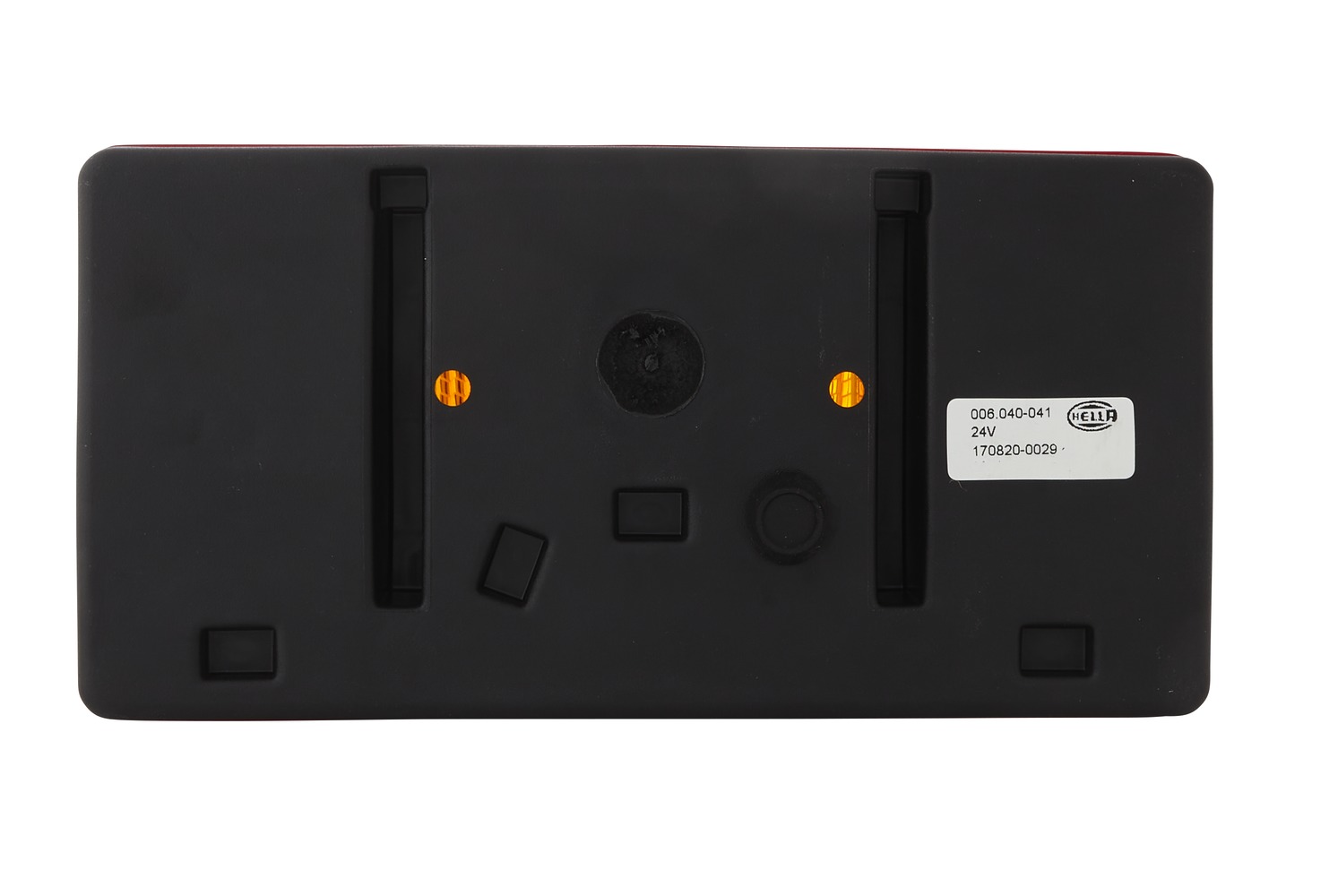

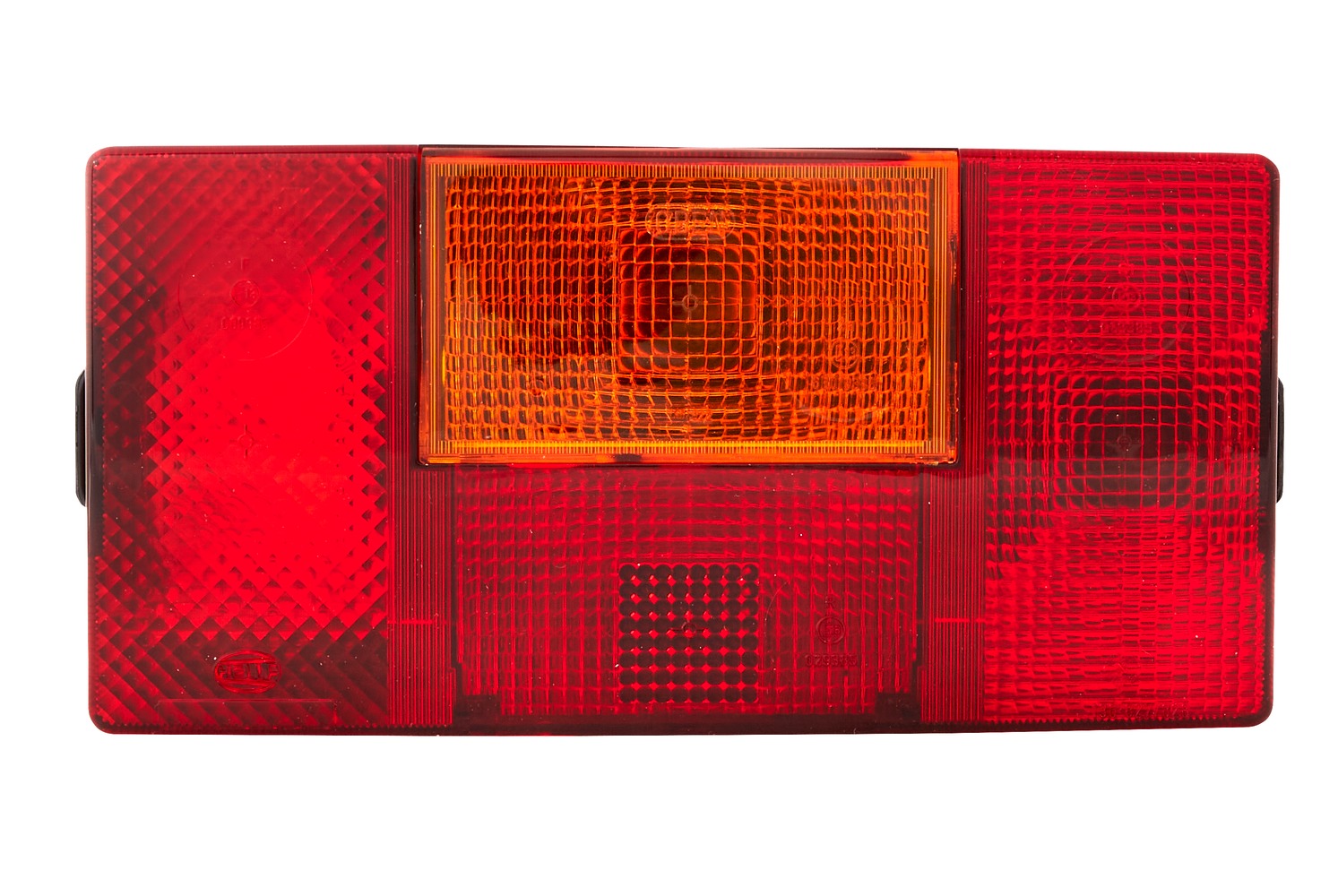

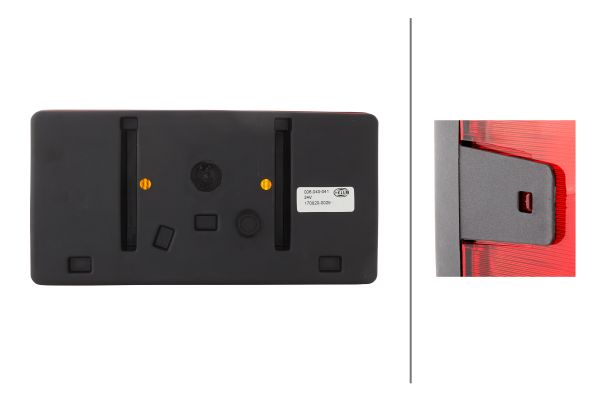

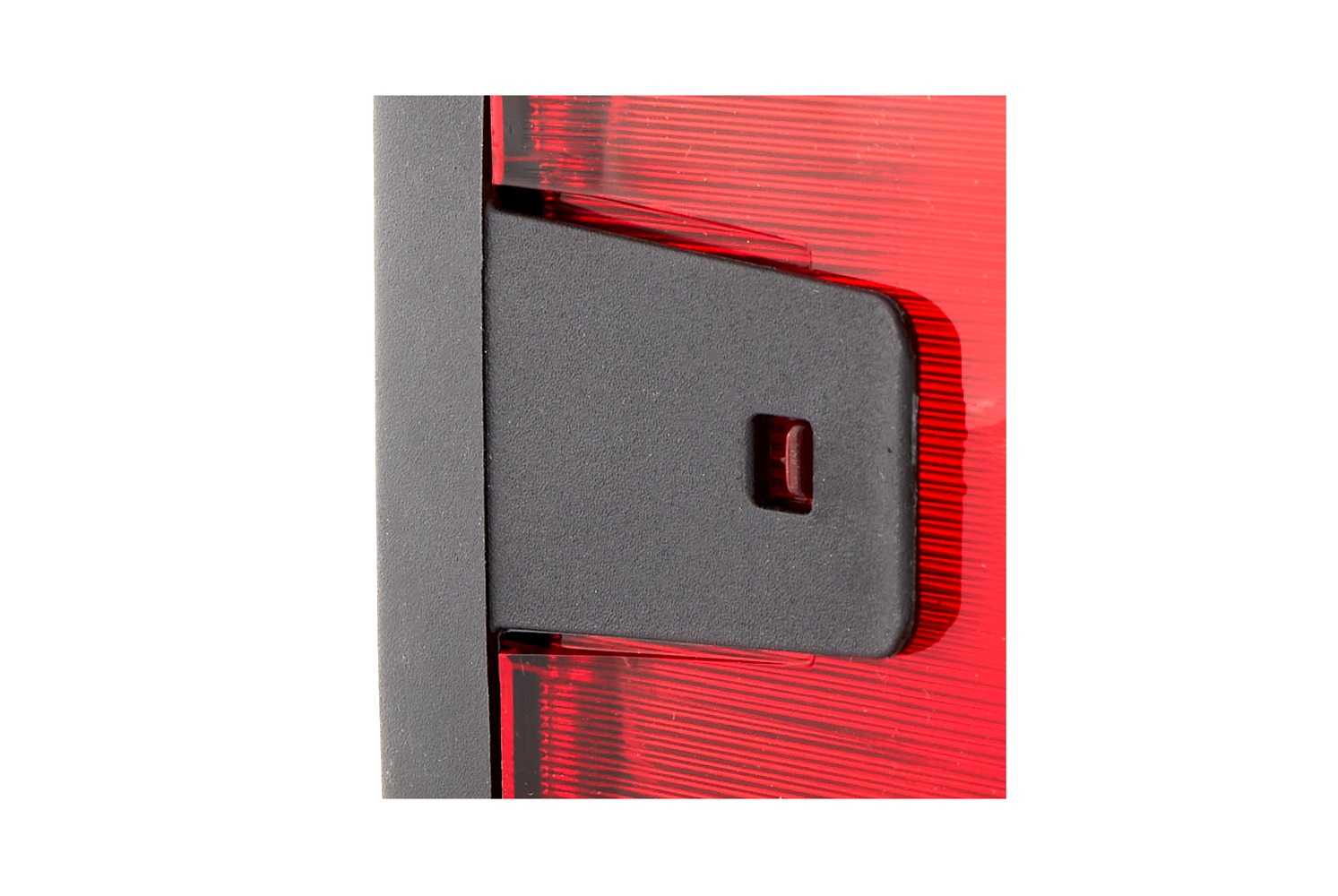

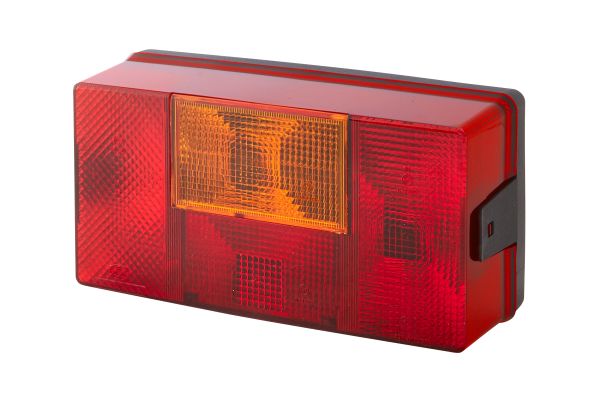

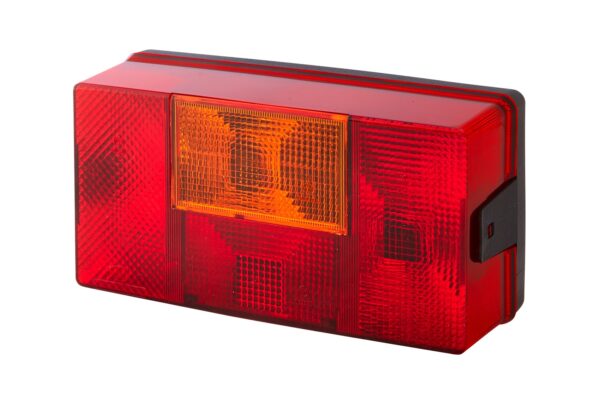

Rearlight - Bulb - 24/12V

Hella Part no. A25-000796 Previously PT/006040041

Rearlight - Bulb - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£19.52 ex VAT
£23.42 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Bulb
Lens colour
Amber, Red
Light functions
Brake light, Fog light, Indicator, Tail light

About this rear lamps bulb

Rearlight - Bulb - 24/12V is a Hella rear lamps bulb for 12/24V electrical systems. The light source is Bulb, the lens is amber, red, the housing is sealed to IPX4K / IPX9K / IP5KX. Light functions: brake light, fog light, indicator, tail light. Mounting: fitting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000796 (previously PT/006040041), and it replaces or is equivalent to 2SD 006 040-041, 75260100000, 752601000000, 2186705, 5350650495, 4401148 and 3 more.

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

  • Tail-brake-indicator rear fog light for horizontal mounting on trailer (right) - with ECE approval
  • The combination rearlight has 4 light functions: Brake light / tail light / indicator / rear fog light
  • Lamp type: P21W/R10W, without bulbs, with grommet, tail light, brake light and rear fog light red, indicator yellow, base plate black, 4 holes Ø 6 mm for fixing screws
  • Length: 210mm - Width: 108mm - Height: 66mm - Lamp Type: R10W/P21W - without bulbs/for trailer
  • Light functions: 4 - with taillight/with rear fog light/with stop light/with indicator
  • Registration Type: ECE/no SAE - Prot.type (IP Code): IPX4K /IPX9K/IP5KX
  • Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Specifications

Voltage12/24V
TechnologyBulb
Lens colourAmber, Red
Light functionsBrake light, Fog light, Indicator, Tail light
MountingFitting
Fasteningfor horizontal fastening
Bulb typeP21W / R10W
Fitting positionright
Height66 mm
Width108 mm
Length210 mm
ConnectorBlade Terminal
IP ratingIPX4K / IPX9K / IP5KX
Housing typeSynthetic Material Housing
Housing colourBlack
Paired article number2SD 006 040-031
Weight457 g
Part numberA25-000796
BrandHella

Part numbers

Our part number for this item is A25-000796. It was previously listed as PT/006040041, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2SD 006 040-041
  • 75260100000
  • 752601000000
  • 2186705
  • 5350650495
  • 4401148
  • 5002592
  • 7002316
  • 99700135

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
