Rearlight - Bulb - 24/12V

Hella Part no. A25-000541 Previously PT/003184031

Rearlight - Bulb - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£11.49 ex VAT
£13.79 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Bulb
Lens colour
Amber, Red
Light functions
Brake light, Indicator, Tail light

About this rear lamps bulb

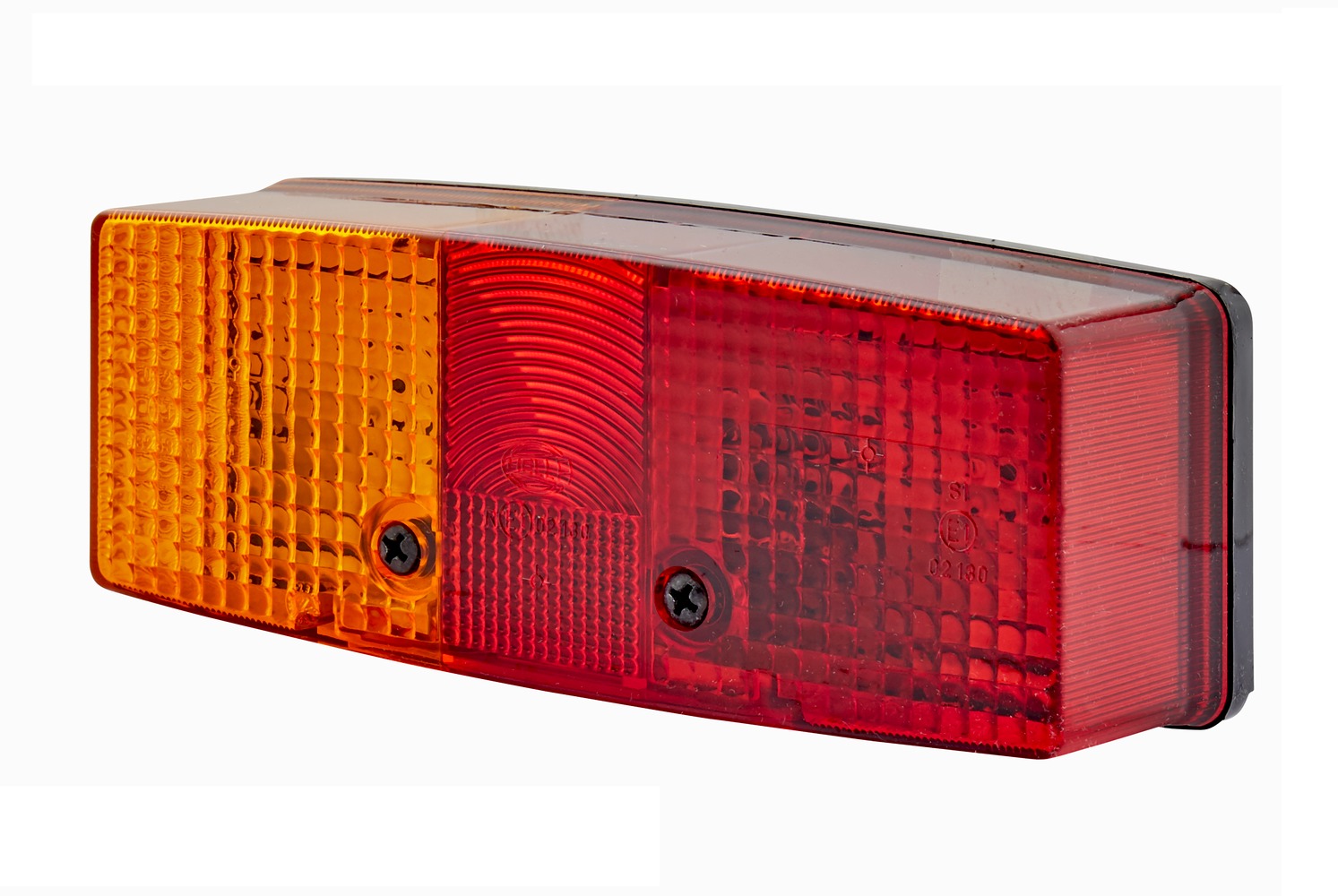

Rearlight - Bulb - 24/12V is a Hella rear lamps bulb for 12/24V electrical systems. The light source is Bulb, the lens is amber, red. Light functions: brake light, indicator, tail light. Mounting: mounting / bolted.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000541 (previously PT/003184031), and it replaces or is equivalent to 2SD 003 184-031, 5170045, 867486, 5001840678, 7526122000, 75261220000 and 52 more.

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

  • Tail-stop-indicator lamp for horizontal surface-mounting (left) - with ECE approval, E-type approved
  • The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
  • Lamp type: P21W/R10W, without bulbs, without gasket, with grommet, tail light and brake light red, indicator light yellow, 2 fixing screws B3,9 x 16, black plastic housing
  • Length: 158mm - Width: 64mm - Height: 51mm - Lamp Type: P21W/R10W - without bulbs
  • Light functions: 3 - with stop light/with indicator/with taillight
  • Registration Type: ECE
  • Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Specifications

Voltage12/24V
TechnologyBulb
Lens colourAmber, Red
Light functionsBrake light, Indicator, Tail light
Mountingmounting / Bolted
Fasteningfor horizontal fastening
Bulb typeP21W / R10W
Fitting positionleft
Height51 mm
Width64 mm
Length158 mm
ConnectorBlade Terminal
Housing typeSynthetic Material Housing
Housing colourBlack
Tightening torque1.5 Nm
Weight165 g
Part numberA25-000541
BrandHella

Part numbers

Our part number for this item is A25-000541. It was previously listed as PT/003184031, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2SD 003 184-031
  • 5170045
  • 867486
  • 5001840678
  • 7526122000
  • 75261220000
  • 150320900
  • 36252256008
  • N1011025270
  • 1912001
  • PJ5170045
  • 10949210
  • 5231598
  • 505169
  • AL35176
  • VPM3717
  • 72380712
  • X830180047
  • 3042085M2
  • X830180047000
  • Y2527024
  • B969071282008
  • 1186781
  • 5751153
  • 501258
  • 76535307
  • 325531
  • 1271560
  • 1678737
  • 4401143
  • 526363
  • M04407155
  • 11025270
  • 11025336
  • 150325300
  • 90178088
  • 16006222600
  • 1084102
  • 27001310802
  • 1093
  • 60973
  • 2801341001
  • 11291
  • 28304950
  • 502040141
  • 50204141
  • 5035379
  • 830495
  • 2300861
  • 203267
  • 5800519
  • 7700200
  • 10831363
  • 132203
  • TA04930060
  • TA04930073
  • TA04930074
  • W252SD003184031

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £6.50 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
