Reflector - Lens Colour: Red - rectangular - Glued/mounting

Hella Part no. A25-000688 Previously PT/004412021

Reflector - Lens Colour: Red - rectangular - Glued/mounting

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£0.99 ex VAT
£1.19 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £3.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Lens colour
Red
Light functions
Reflector

About this vehicle reflex reflector

Reflector - Lens Colour: Red - rectangular - Glued/mounting is a Hella vehicle reflex reflector. The lens is red. Light functions: reflector. Mounting: glued / mounting. It carries R3 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000688 (previously PT/004412021), and it replaces or is equivalent to 8RA 004 412-021, 15440892, 5444405, 11883216, EHC13A566A, 4399791 and 47 more.

As additional passive light elements, the reflectors from HELLA improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

  • Horizontal or vertical mounting
  • Reflecting area 18 cm²
  • Registration Type: CCC/SAE/ADR/GGVS/ECE - fulfils ECE norm: R3
  • with reflector

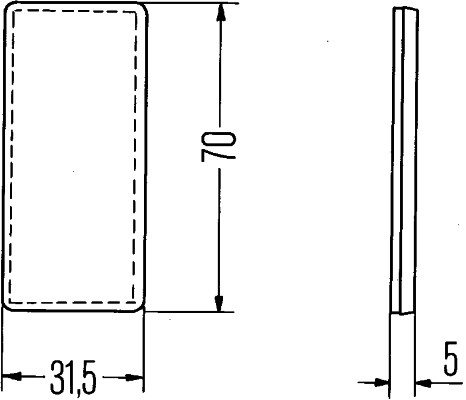

  • Length: 69mm - Width: 32mm - Height: 6mm
  • with fastening material
  • Effective reflective surface: 18cm²

Specifications

Lens colourRed
Light functionsReflector
MountingGlued / mounting
Fasteningfor vertical fastening
Fitting positionRear
Width32 mm
Length69 mm
Height6 mm
Thickness6 mm
ECE approvalR3
Effective reflective surface18 cm²
Shaperectangular
Housing typeSynthetic Material Housing
Weight10 g
Part numberA25-000688
BrandHella

Part numbers

Our part number for this item is A25-000688. It was previously listed as PT/004412021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 8RA 004 412-021
  • 15440892
  • 5444405
  • 11883216
  • EHC13A566A
  • 4399791
  • 91FH01800
  • 3868344C1
  • 882085
  • 5006000983
  • 503334554
  • SP1050580
  • 13892518
  • RM13892518
  • VOE11883216
  • LVU26964
  • 4413298
  • 4413298EY200549
  • D04413298
  • 3389596M1
  • 20K4631820
  • 3389596M01A
  • 811400920
  • 85804012
  • 4195548A
  • 4929006
  • 2279859
  • 6004350
  • 5350658357
  • 3515164100
  • ZK0448922300
  • 9012190
  • 526786
  • 9940102
  • 2814146
  • 90231606
  • 1000027030
  • 3321507
  • 1076211
  • 15292
  • 450432
  • 7115913
  • ND021
  • 5452813
  • 10001244
  • 7401464
  • 113302
  • A0005444405
  • A0015440892
  • 2118276
  • 87590000
  • 40150139
  • 146973
