Interior Light - Mini OvalLED - LED - 12V

Hella Part no. A25-004217 Previously PT/343570011

Interior Light - Mini OvalLED - LED - 12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£37.15 ex VAT
£44.58 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12V
Technology
LED
Lens colour
Clear
Light functions
Cab light
IP rating
IP69K

About this interior light

Interior Light - Mini OvalLED - LED - 12V is a Hella interior light for 12V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP69K. Light functions: cab light. Mounting: fitting. It carries R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004217 (previously PT/343570011), and it replaces or is equivalent to 2JA 343 570-011, 89000001001400, 5751292.

The Mini OvalLED indoor lamp offers optimum light output thanks to the use of 4 LEDs. The product can have power LEDs or standard LEDs. In addition, ambient lighting can be achieved via a separate switch for a red (or blue) LED. The crystal-clear plexiglas lens and the black, shatterproof housing made of impact-resistant and UV-resistant plastic (ABS) complement the design of the lamp. The version without switch and bezel is waterproof and therefore ideal for use in cold and damp environments. The variant with switch offers the convenience of simple and quickly accessible operation. The lamp can be installed using screw mounting or as a flush-mounted version.

  • Optimum light output
  • Ambient lighting via separate switch
  • Particularly shatterproof housing

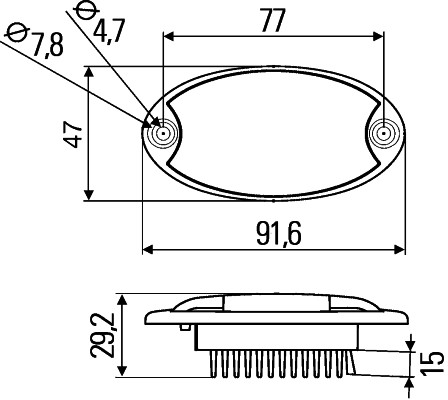

  • Length: 92mm - Width: 11mm - Height: 47mm - Depth: 28mm
  • Housing Colour: Black - Light functions: 1 - with cabin light - Lamp Type: LED
  • fulfils ECE norm: R10 - Prot.type (IP Code): IP6K9K
  • without frame

Specifications

Voltage12V
TechnologyLED
Lens colourClear
Light functionsCab light
IP ratingIP69K
MountingFitting
Bulb typeLED
Fitting positionInterior
Length92 mm
Width11 mm
Height47 mm
Depth28 mm
ECE approvalR10
Number of LEDs5
Housing colourblack
Cable150 mm
Rated current0.3 A
Power consumption1.2 W
Weight60 g
Part numberA25-004217
BrandHella

Part numbers

Our part number for this item is A25-004217. It was previously listed as PT/343570011, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2JA 343 570-011
  • 89000001001400
  • 5751292

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £6.50 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
