Side Marker Light - LED - 24V

Hella Part no. A25-004348 Previously PT/345600031

Side Marker Light - LED - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£21.52 ex VAT
£25.82 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
LED
Lens colour
Amber
Light functions
Reflector, Side marker
IP rating
IP69K

About this side marker lamp

Side Marker Light - LED - 24V is a Hella side marker lamp for 24V electrical systems. The light source is LED, the lens is amber, the housing is sealed to IP69K. Light functions: reflector, side marker. Mounting: mounting / screw connection. It carries R91 / R10 / R3 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004348 (previously PT/345600031), and it replaces or is equivalent to 2PS 345 600-031, 1963109, 181660.

HELLA 2PS 345 600-031 Side Marker Light - LED - 24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: Yellow - Cable: 4530mm - Plug: AMP - 2-pin connector - Lateral Mounting - Quantity: 1

  • The innovative Light Guide technology has been applied for the first time in a side marker luminaire. It creates a slim, linear night design. The homogeneous light distribution is pioneering
  • Sealed to withstand high pressure cleaning: Tested according to HELLA standard 67101, IP 6K9K, protected against high pressure and steam jet cleaning
  • LED technology offers maximum reliability and vibration resistance. An extremely long service life of the luminaire is therefore achieved
  • By combining efficient light-emitting diodes (LEDs) and precision optics in Light Guide design, the luminaires achieve an optimum signal pattern with extremely low power consumption
  • The Light-Guide optics create a continuous light band. This combines a stylish, linear design with optimum visibility in all side marking, position and clearance light functions
  • Length: 111mm - Width: 51mm - Height: 43mm - Lamp Type: LED - Number of LEDs: 2
  • Light functions: 2 - with side marker light (LED)/with reflector

Specifications

Voltage24V
TechnologyLED
Lens colourAmber
Light functionsReflector, Side marker
IP ratingIP69K
Mountingmounting / Screw Connection
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionLateral Mounting
Height43 mm
Width51 mm
Length111 mm

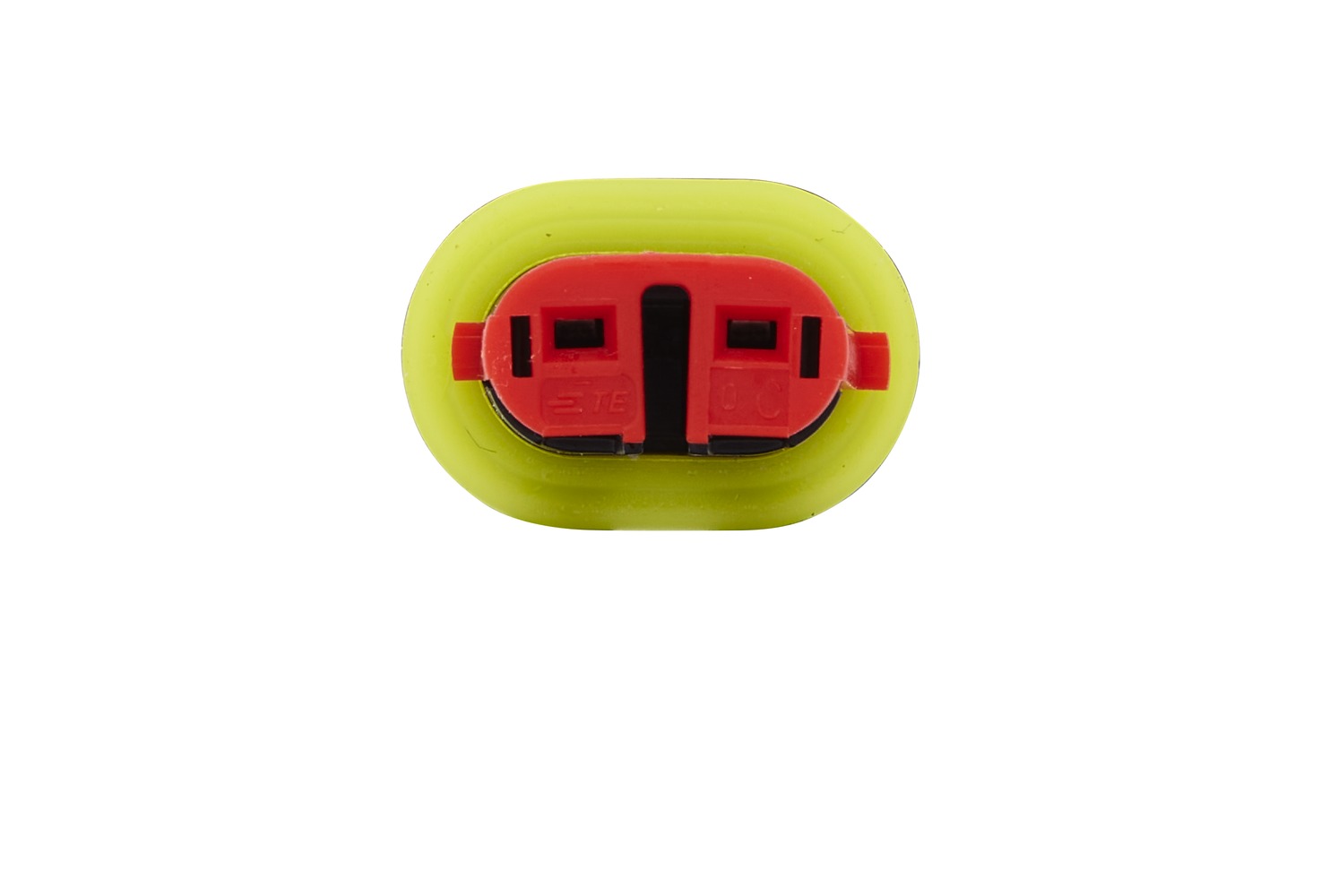

ConnectorAMP
ECE approvalR91 / R10 / R3
Number of LEDs2
Led colouryellow
Cable4530 mm
Housing typeHousing with Plastic Lid
Housing colourblack
Power consumption1.2 W
Number of pins2 -pin connector
Weight227 g
Part numberA25-004348
BrandHella

Part numbers

Our part number for this item is A25-004348. It was previously listed as PT/345600031, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PS 345 600-031
  • 1963109
  • 181660

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £6.50 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
