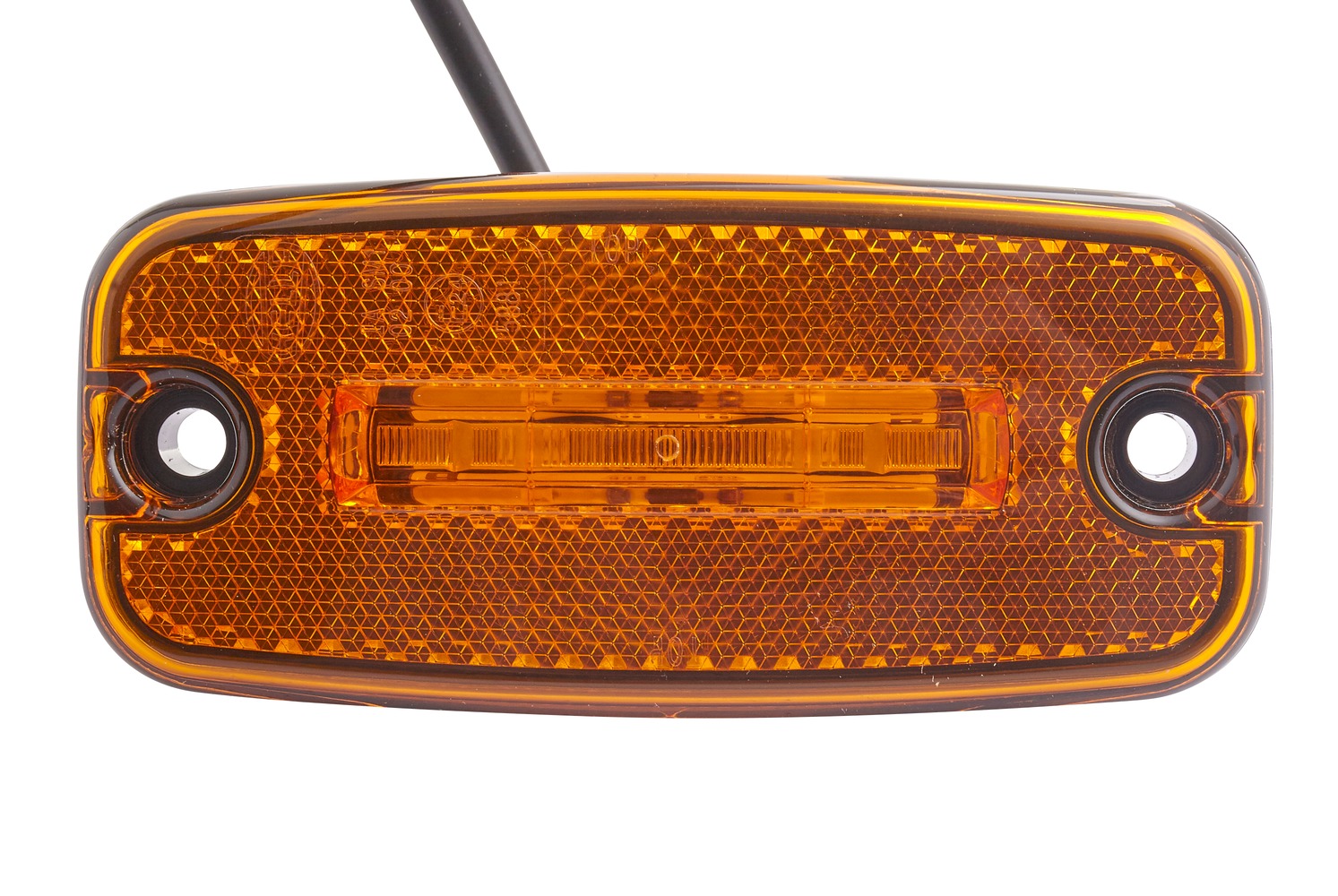

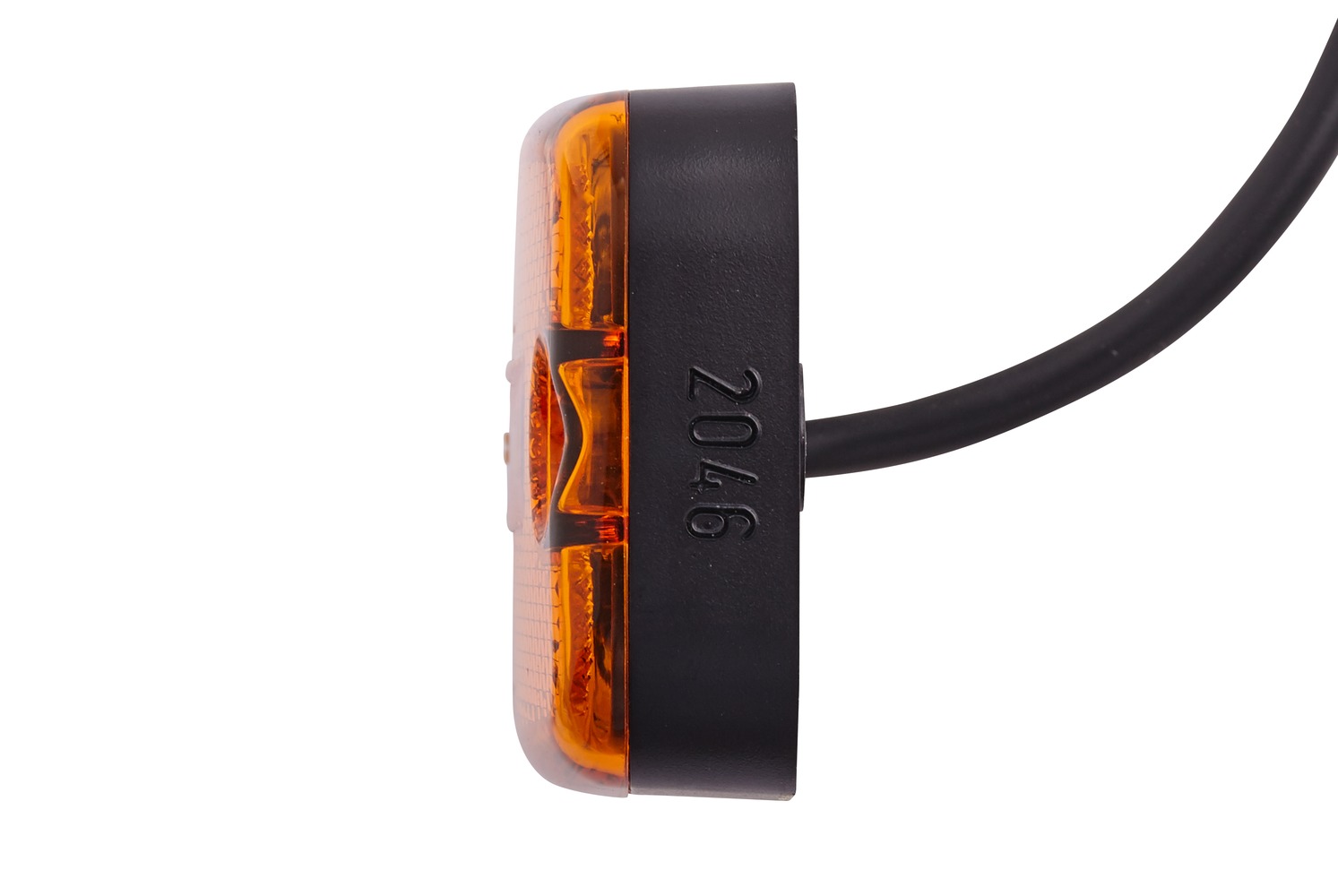

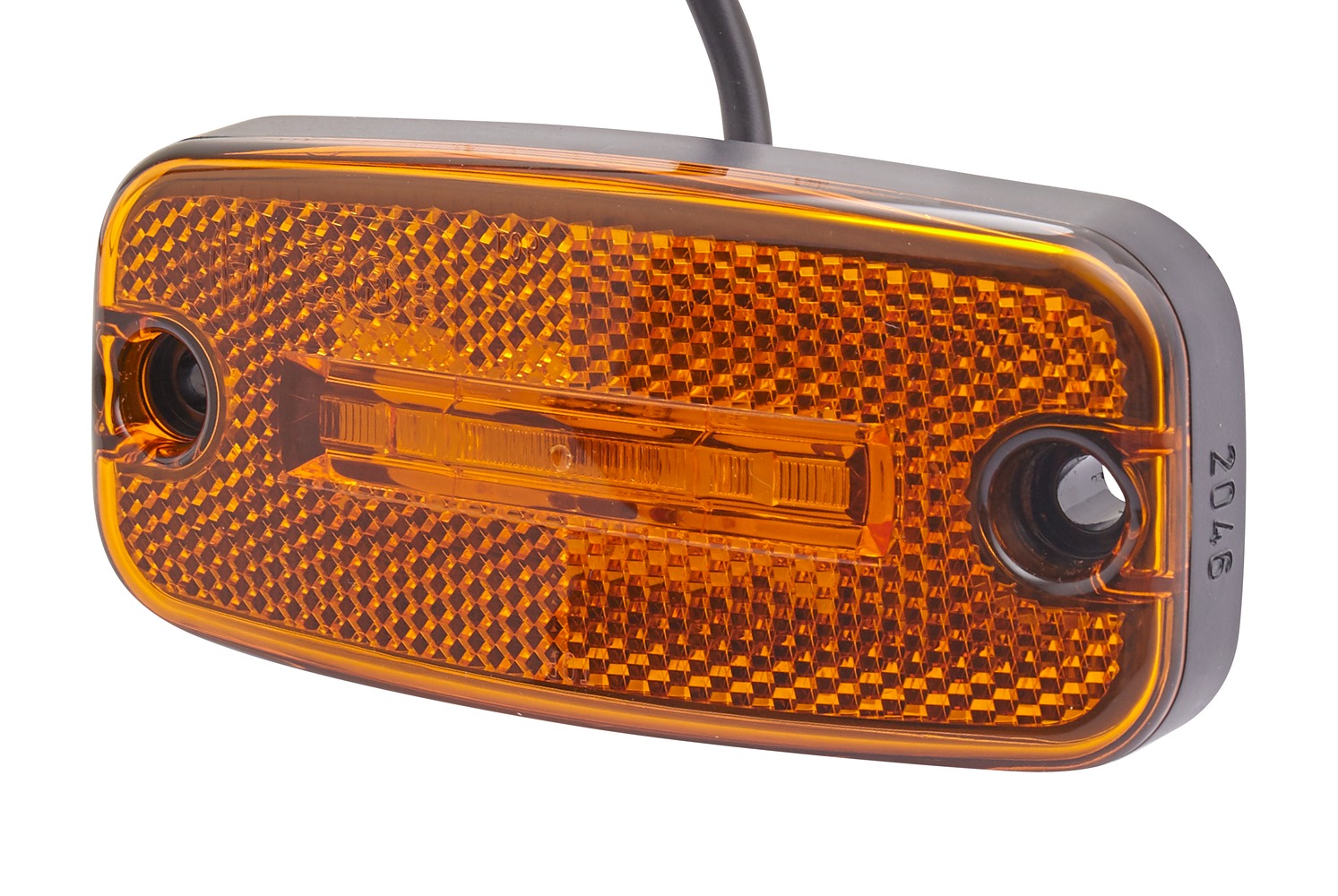

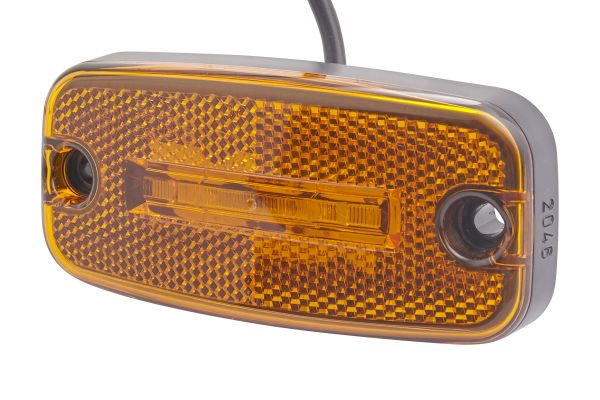

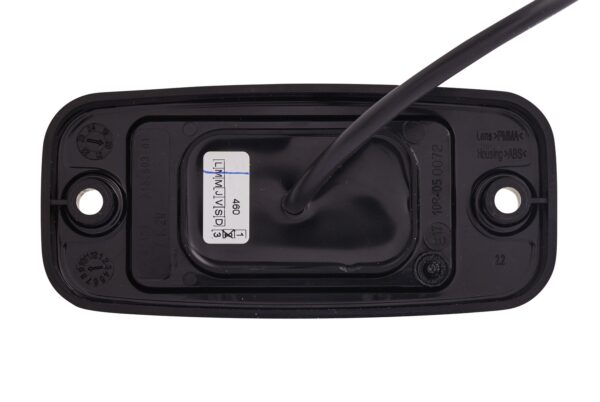

Side Marker Light - LED - 24V

Hella Part no. A25-004346 Previously PT/345600011

Side Marker Light - LED - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£14.80 ex VAT
£17.76 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
LED
Lens colour
Amber
Light functions
Reflector, Side marker
IP rating
IP59K

About this side marker lamp

Side Marker Light - LED - 24V is a Hella side marker lamp for 24V electrical systems. The light source is LED, the lens is amber, the housing is sealed to IP59K. Light functions: reflector, side marker. Mounting: screw connection / mounting. It carries R91 / R10 / R3 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004346 (previously PT/345600011), and it replaces or is equivalent to 2PS 345 600-011, 1962482, 500083855, 579936184, 2416931, 22705001 and 5 more.

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark - particularly useful for vehicles with large dimensions such as combine harvesters, long transporters, etc. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known premium HELLA quality.

  • The innovative Light Guide technology has been applied for the first time in a side marker luminaire. It creates a slim, linear night design. The homogeneous light distribution is pioneering
  • Sealed to withstand high pressure cleaning: Tested according to HELLA standard 67101, IP 6K9K, protected against high pressure and steam jet cleaning
  • LED technology offers maximum reliability and vibration resistance. An extremely long service life of the luminaire is therefore achieved
  • By combining efficient light-emitting diodes (LEDs) and precision optics in Light Guide design, the luminaires achieve an optimum signal pattern with extremely low power consumption
  • The Light-Guide optics create a continuous light band. This combines a stylish, linear design with optimum visibility in all side marking, position and clearance light functions
  • Length: 111mm - Width: 51mm - Height: 21mm - Lamp Type: LED - Number of LEDs: 2 - without holder - Electromagnetic Compatibility (EMC)
  • Light functions: 2 - with side marker light (LED)/with reflector

Specifications

Voltage24V
TechnologyLED
Lens colourAmber
Light functionsReflector, Side marker
IP ratingIP59K
MountingScrew Connection / mounting
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionLateral Mounting
Height21 mm
Width51 mm
Length111 mm
Connectoropen cable ends
ECE approvalR91 / R10 / R3
Number of LEDs2
Led colouryellow
Cable500 mm
Housing typeHousing with Plastic Lid
Housing colourblack
Power consumption1.2 W
Number of pins2 -pin connector
Weight64 g
Part numberA25-004346
BrandHella

Part numbers

Our part number for this item is A25-004346. It was previously listed as PT/345600011, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PS 345 600-011
  • 1962482
  • 500083855
  • 579936184
  • 2416931
  • 22705001
  • 41500083
  • 7040692
  • 137592
  • 10632662
  • 30168170
