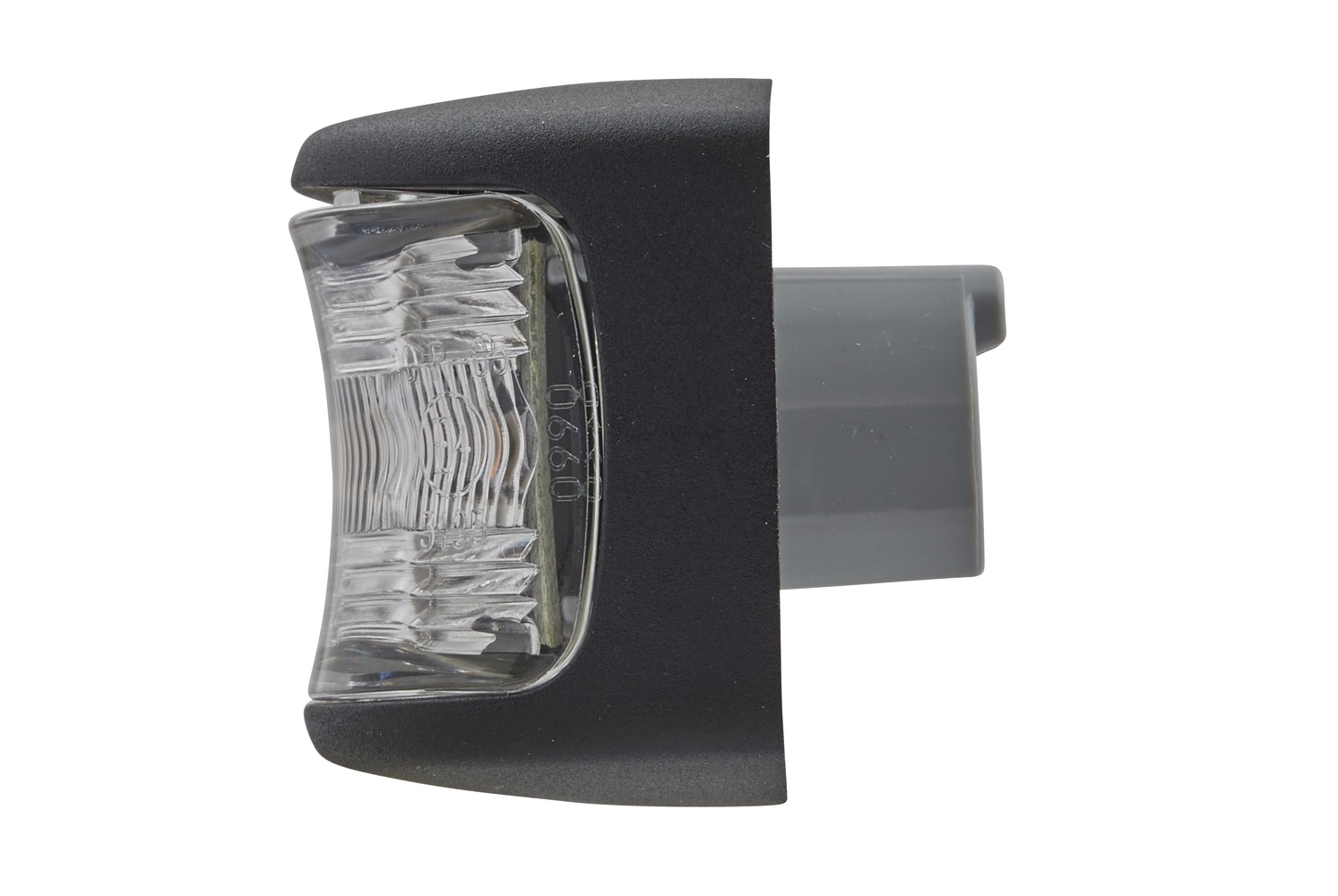

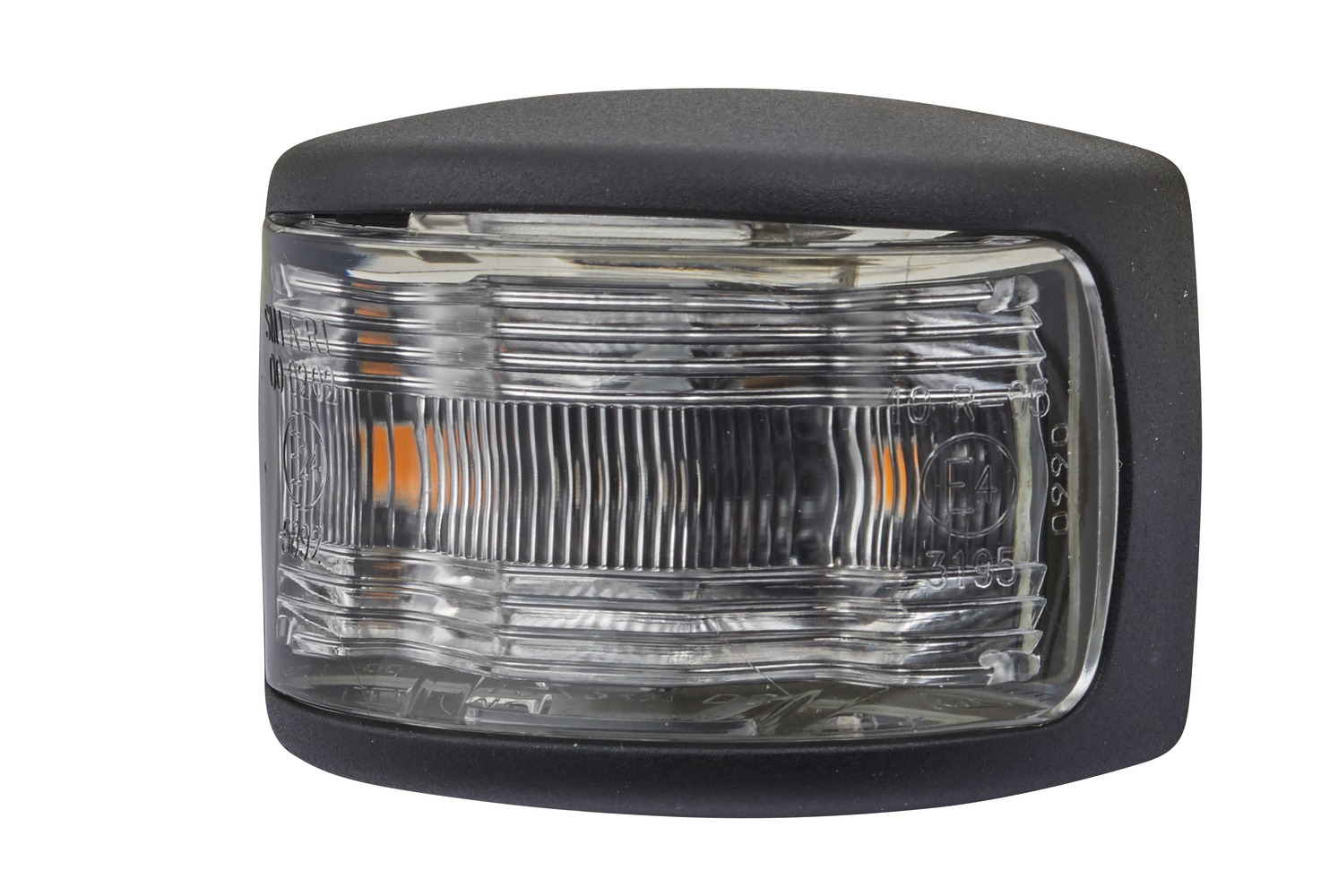

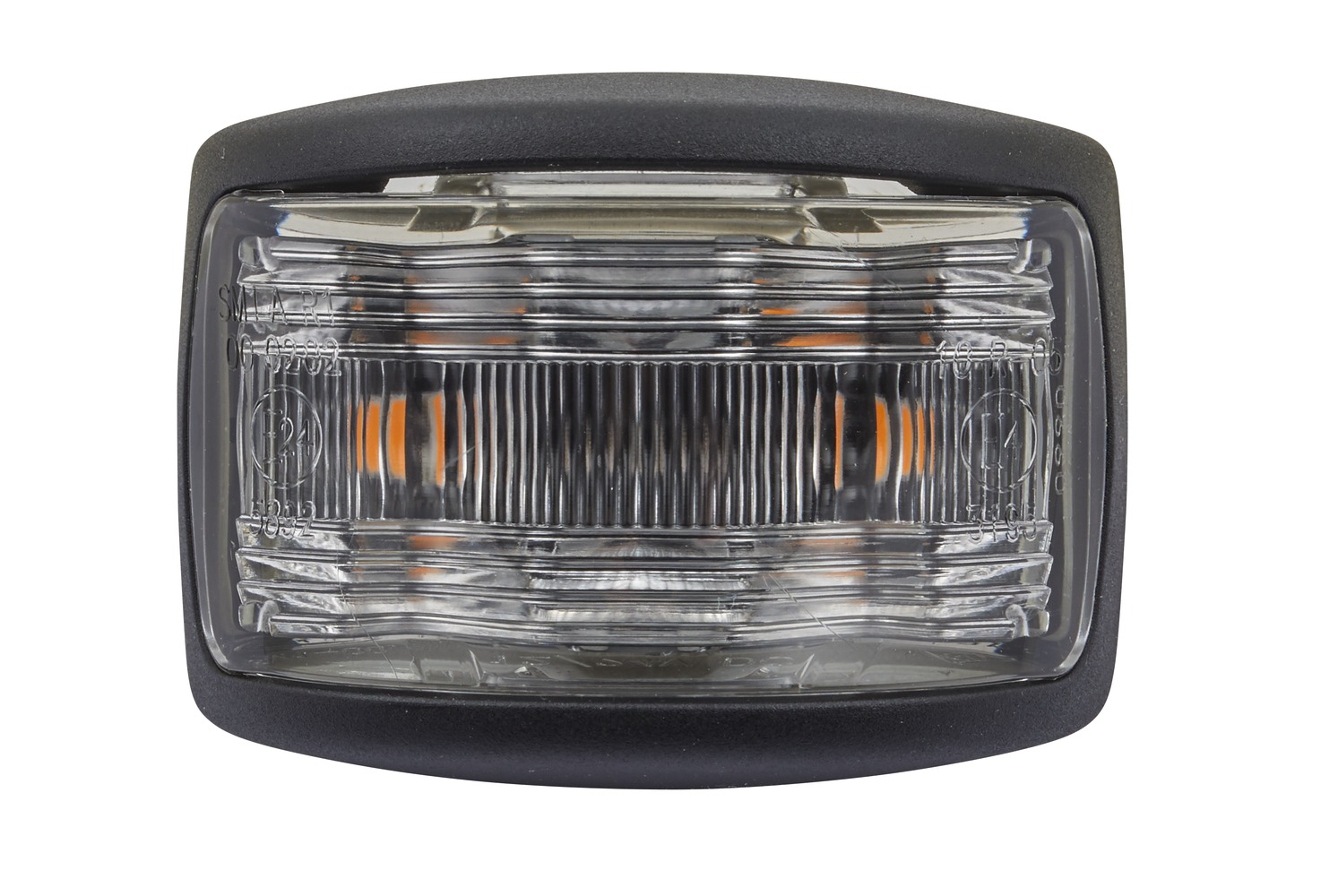

Side Marker Light - DuraLED DT - LED - 12/24V

Hella Part no. A25-005330 Previously PT/980990301

Side Marker Light - DuraLED DT - LED - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£13.24 ex VAT
£15.89 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £3.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Amber
Light functions
Side marker
IP rating
IP67

About this side marker lamp

Side Marker Light - DuraLED DT - LED - 12/24V is a Hella side marker lamp for 12/24V electrical systems. The light source is LED, the lens is amber, the housing is sealed to IP67. Light functions: side marker. Mounting: mounting / screw connection. It carries R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005330 (previously PT/980990301), and it replaces or is equivalent to 2PS 980 990-301.

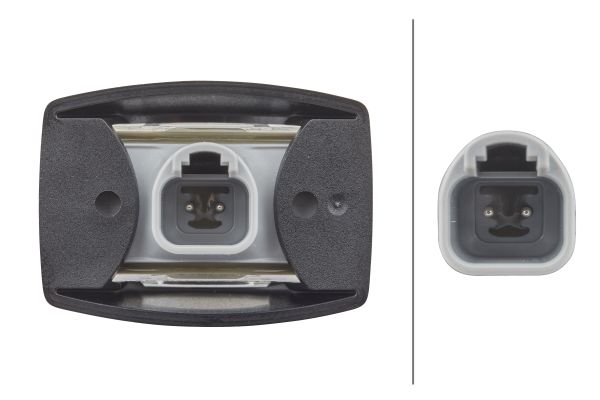

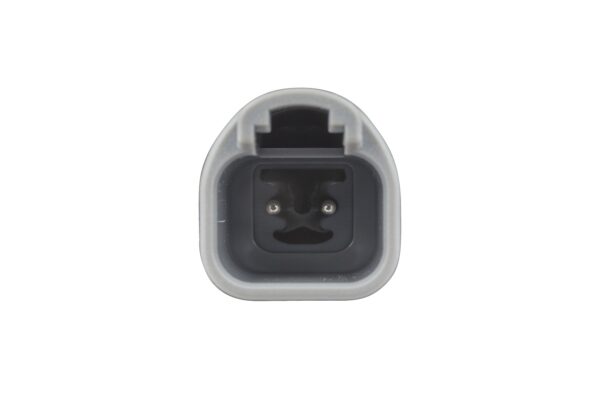

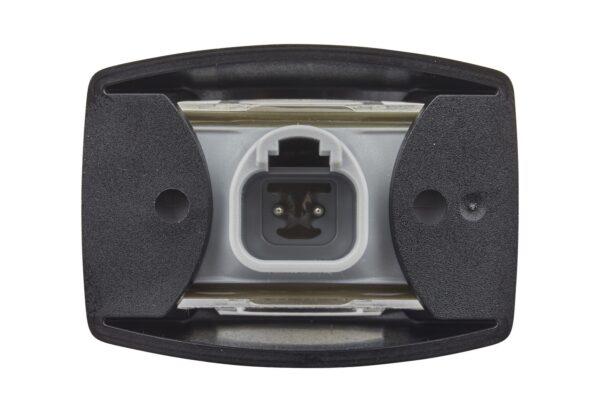

As the newest addition to HELLA’s iconic DuraLED Marker Lamp range, the new plug-in marker lamps offer quality and reliability in 3 easy installation steps: Choose your preferred wire, install the DEUTSCH DT-connector and simply plug the lamp in. For added security the extra-long socket features a rounded profile to complete the sealing with heat shrink tubing. The ultra-durable maker lamps are fully Multivolt for optimum brightness on 12 and 24 Volt systems and come in a complete set of functions with matching front, rear and side marker lamps for a consistent look to your vehicle or trailer. True to HELLA’s uncompromising quality standard these heavy duty marker lamps feature lenses made from Grilamid, the highly respected performance polyamide invented and manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of properties including toughness against impact, long term UV stability and resistance to commonly used chemicals and washes.

  • For this DuraLED luminaire series, HELLA has specified Grilamid, a revolutionary high-performance polyamide, as the lens material. This is particularly durable and resistant to UV radiation
  • Reverse polarity protection: Incorrect contact between poles ensures that the luminaire is not damaged
  • The luminaires are completely sealed to IP 6K7 and IP 6K9K and are resistant to high-pressure cleaning or temporary immersion
  • "Fit and Forget" technology: Fully sealed luminaires from HELLA are maintenance-free and reliable
  • High visibility from all sides: The light-screen design allows wide light diffusion and offers increased visibility
  • Length: 60mm - Width: 46mm - Height: 43mm - Lamp Type: LED - Number of LEDs: 2
  • Light functions: 1 - with side marker light

Specifications

Voltage12/24V
TechnologyLED
Lens colourAmber
Light functionsSide marker
IP ratingIP67
Mountingmounting / Screw Connection
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionright / left
Height43 mm
Width46 mm
Length60 mm
ECE approvalR10
Number of LEDs2
Housing typeHousing with Plastic Lid
Housing colourblack
Power consumption1 W
Weight40 g
Part numberA25-005330
BrandHella

Part numbers

Our part number for this item is A25-005330. It was previously listed as PT/980990301, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PS 980 990-301

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £3.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
