Position Light - LED - 24V

Hella Part no. A25-005182 Previously PT/964295111

Position Light - LED - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£17.51 ex VAT
£21.01 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
LED
Lens colour
Clear, White
Light functions
Position light, Reflector
IP rating
IP59K

About this position lamp

Position Light - LED - 24V is a Hella position lamp for 24V electrical systems. The light source is LED, the lens is clear, white, the housing is sealed to IP59K. Light functions: position light, reflector. Mounting: screw connection / mounting. It carries R3 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005182 (previously PT/964295111), and it replaces or is equivalent to 2PG 964 295-111, 1489727, SP1050023, 1872012637.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • LED position reflector light for front surface-mounting (horizontal) - with ECE approval
  • The position light has 2 light functions: Position light / reflector

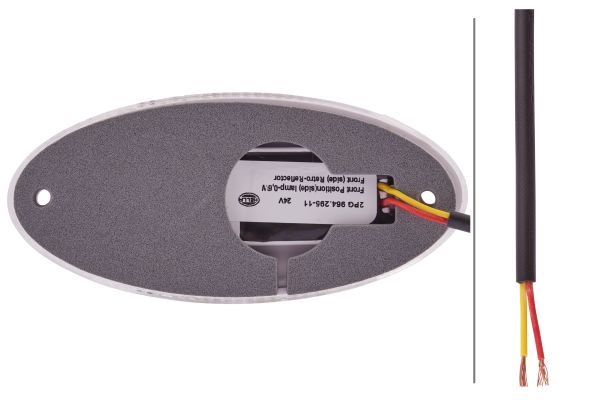

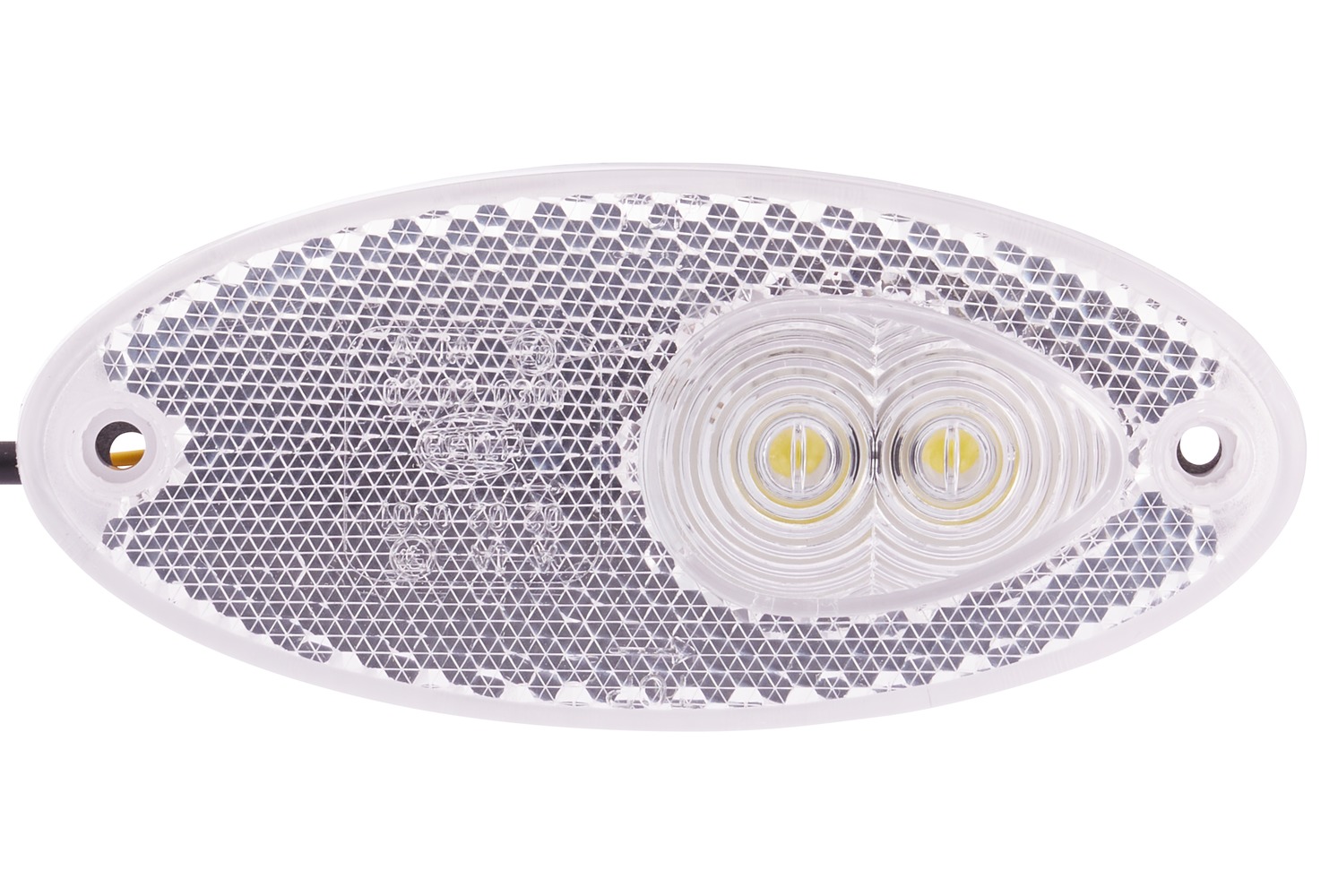

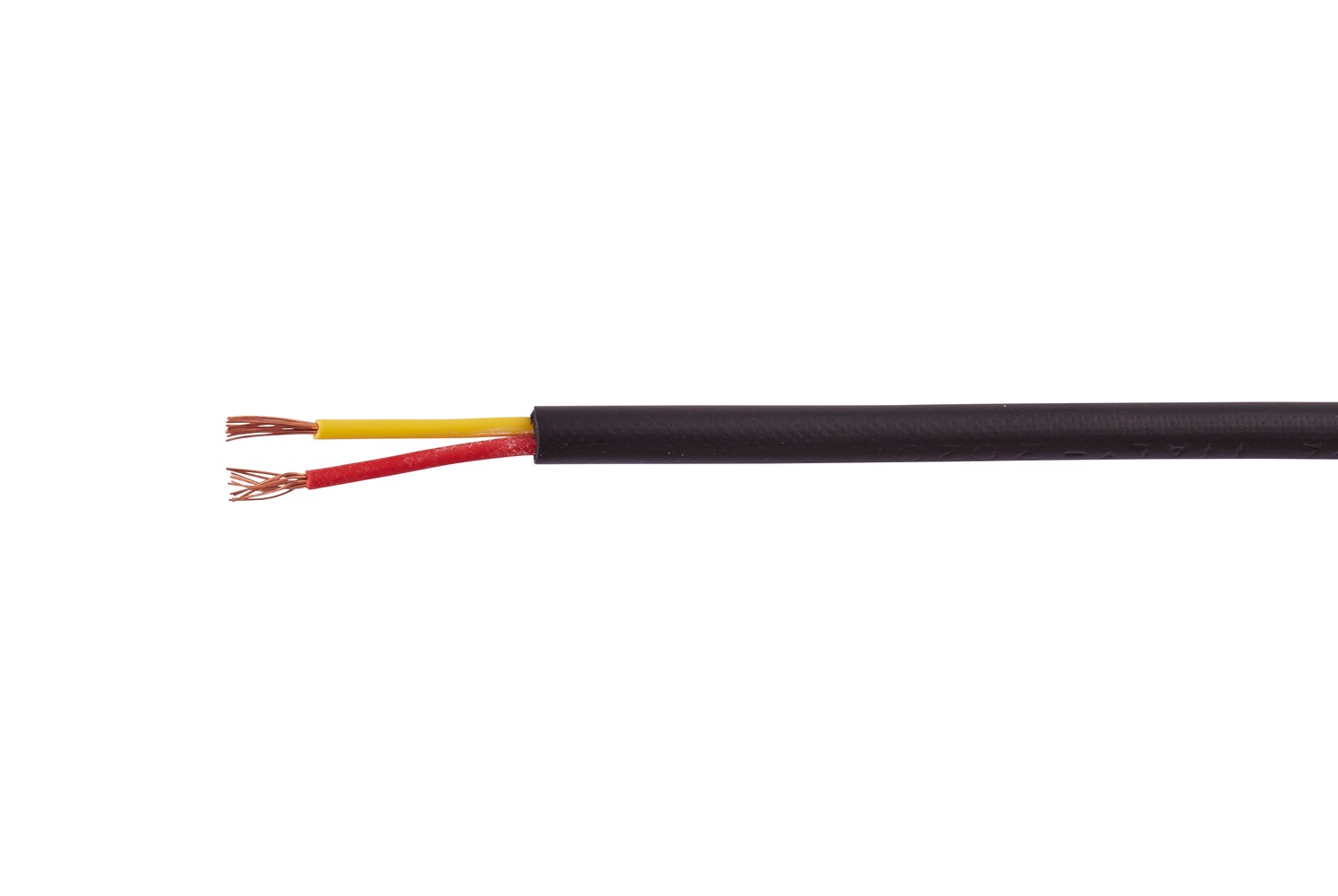

  • With 2 LEDs 24V0,6W, with seal and 5 m cable, 2 holes for fixing screws M3,5
  • Length: 102mm - Width: 45mm - Height: 13mm - Lamp Type: LED - Number of LEDs: 2
  • Light functions: 2 - with position light (LED)/with reflector
  • Registration Type: ECE - fulfils ECE norm: R7/R3 - Prot.type (IP Code): IP5K9K
  • Housing Colour: Grey - LED colour: White - Lens Colour: Crystal clear

Specifications

Voltage24V
TechnologyLED
Lens colourClear, White
Light functionsPosition light, Reflector
IP ratingIP59K
MountingScrew Connection / mounting
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionFront
Height13 mm
Width45 mm
Length102 mm
Connectoropen cable ends
ECE approvalR3 / R7
Number of LEDs2
Led colourwhite
Cable5000 mm
Housing colourgrey
Power consumption0.6 W
Weight118 g
Part numberA25-005182
BrandHella

Part numbers

Our part number for this item is A25-005182. It was previously listed as PT/964295111, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PG 964 295-111
  • 1489727
  • SP1050023
  • 1872012637
