Position Light - LED - 24V

Hella Part no. A25-004361 Previously PT/345600401

Position Light - LED - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£17.32 ex VAT
£20.78 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
LED
Lens colour
White
Light functions
Position light, Reflector

About this position lamp

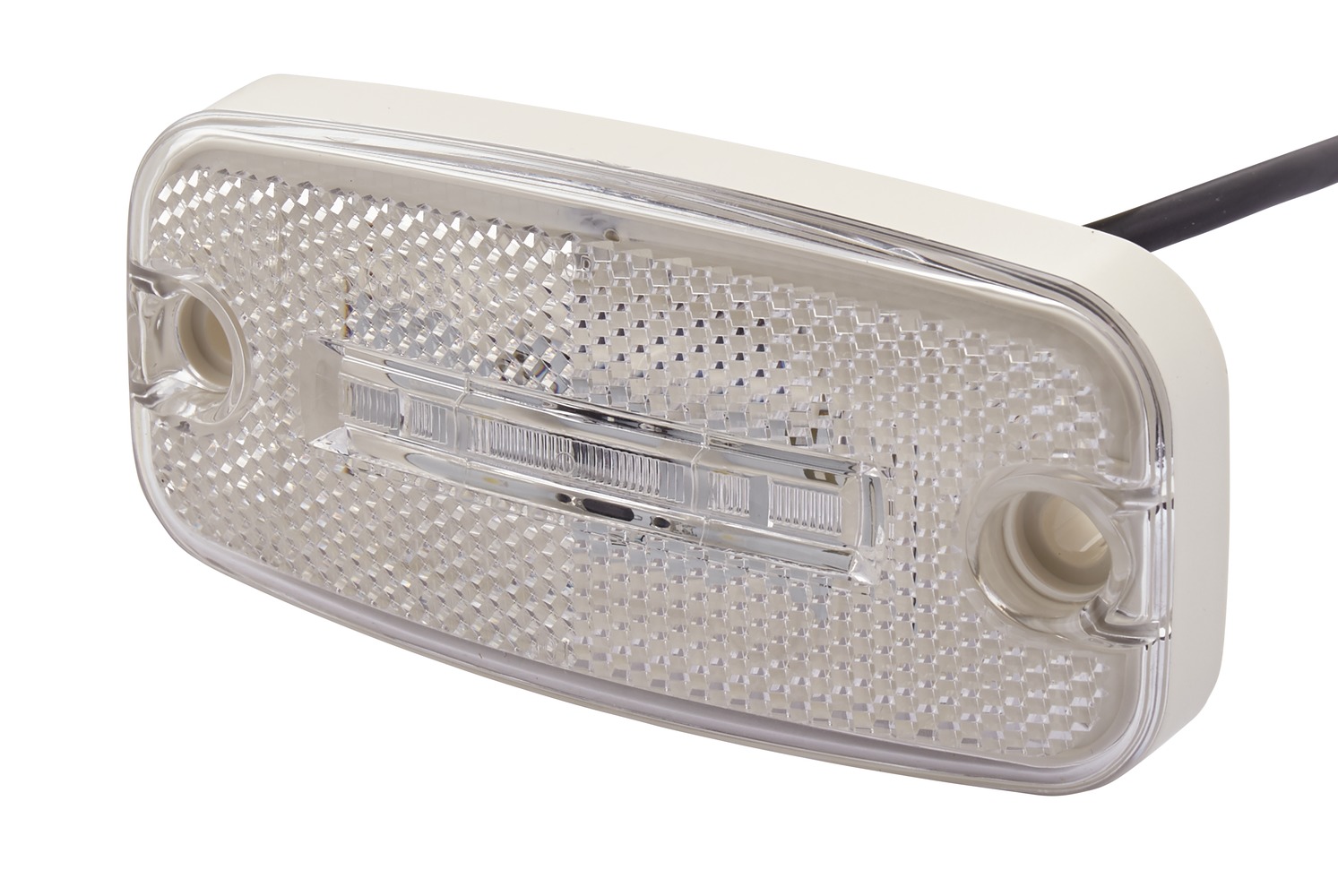

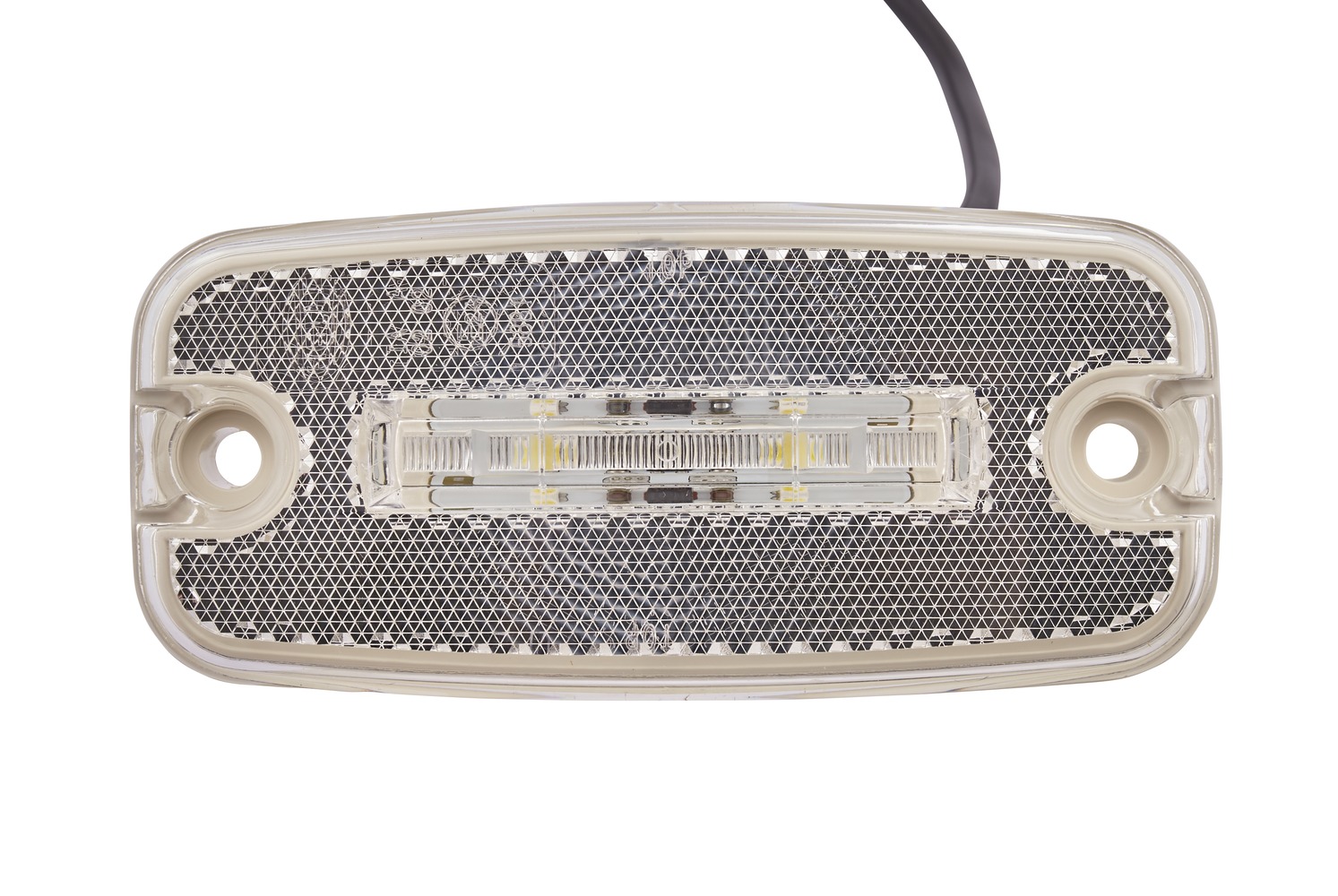

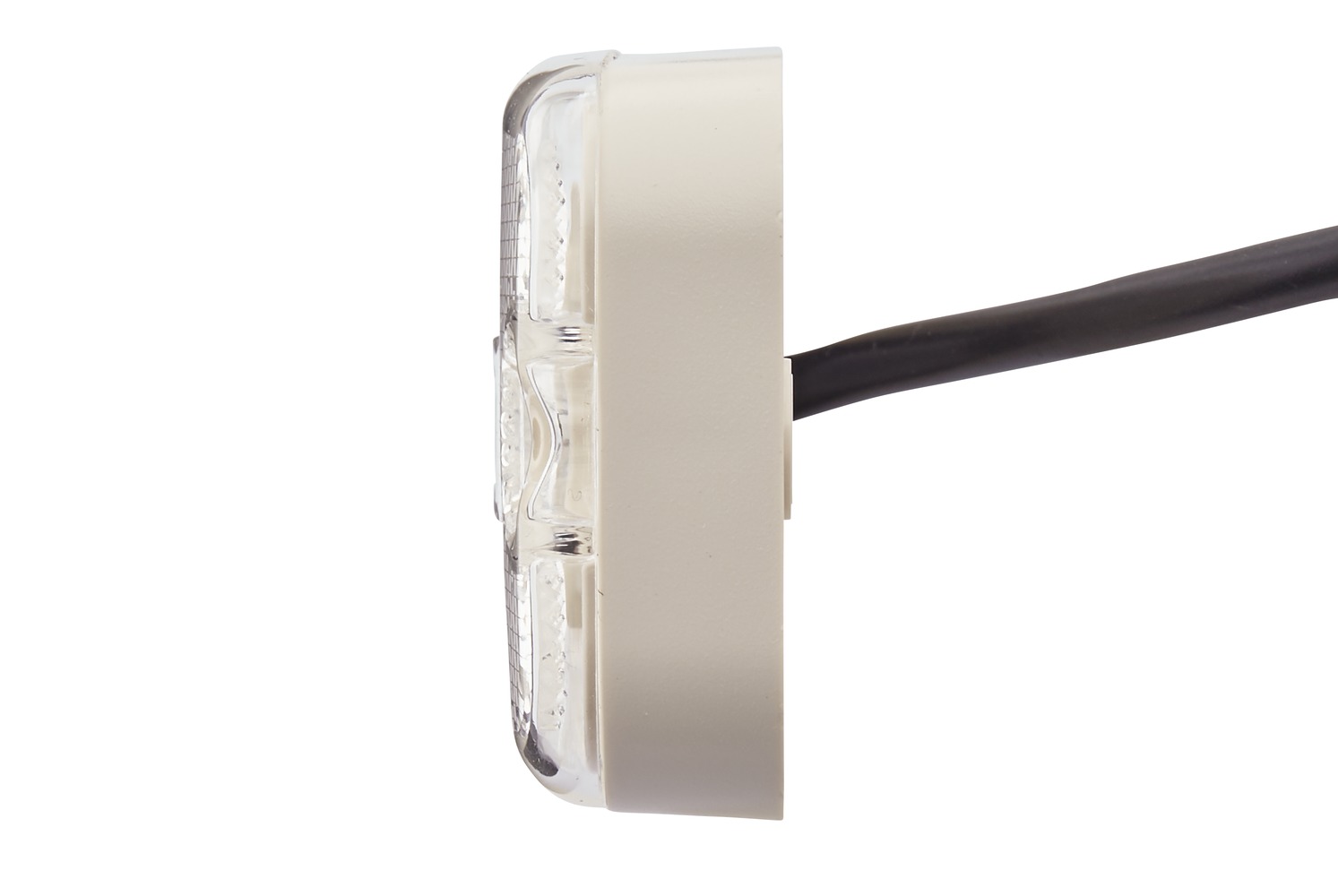

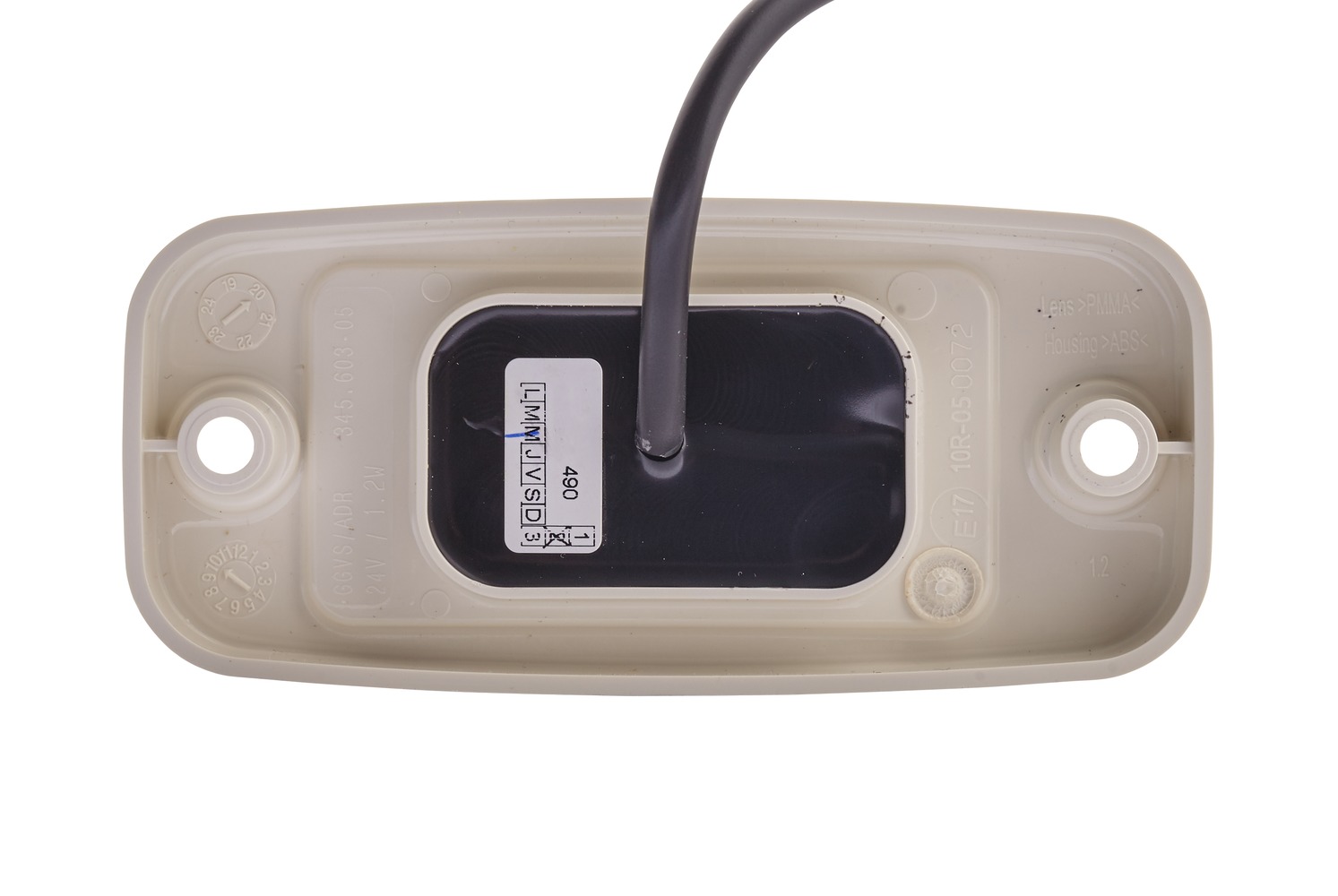

Position Light - LED - 24V is a Hella position lamp for 24V electrical systems. The light source is LED, the lens is white, the housing is sealed to IP5KX. Light functions: position light, reflector. Mounting: screw connection / mounting. It carries R3 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-004361 (previously PT/345600401), and it replaces or is equivalent to 2PG 345 600-401, 1962664, 2416928, SP1068246, 108300763200, 10958024 and 4 more.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. We also rely on the highest quality and the use of efficient technologies for these luminaires. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • The innovative Light Guide technology has been applied for the first time in a side marker luminaire. It creates a slim, linear night design. The homogeneous light distribution is pioneering
  • Sealed to withstand high pressure cleaning: Tested according to HELLA standard 67101, IP 6K9K, protected against high pressure and steam jet cleaning
  • LED technology offers maximum reliability and vibration resistance. An extremely long service life of the luminaire is therefore achieved
  • By combining efficient light-emitting diodes (LEDs) and precision optics in Light Guide design, the luminaires achieve an optimum signal pattern with extremely low power consumption
  • The Light-Guide optics create a continuous light band. This combines a stylish, linear design with optimum visibility in all side marking, position and clearance light functions
  • Length: 111mm - Width: 51mm - Height: 21mm - Lamp Type: LED - Number of LEDs: 2 - with pipe
  • Light functions: 2 - with position light (LED)/with reflector

Specifications

Voltage24V
TechnologyLED
Lens colourWhite
Light functionsPosition light, Reflector
MountingScrew Connection / mounting
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionFront
Height21 mm
Width51 mm
Length111 mm

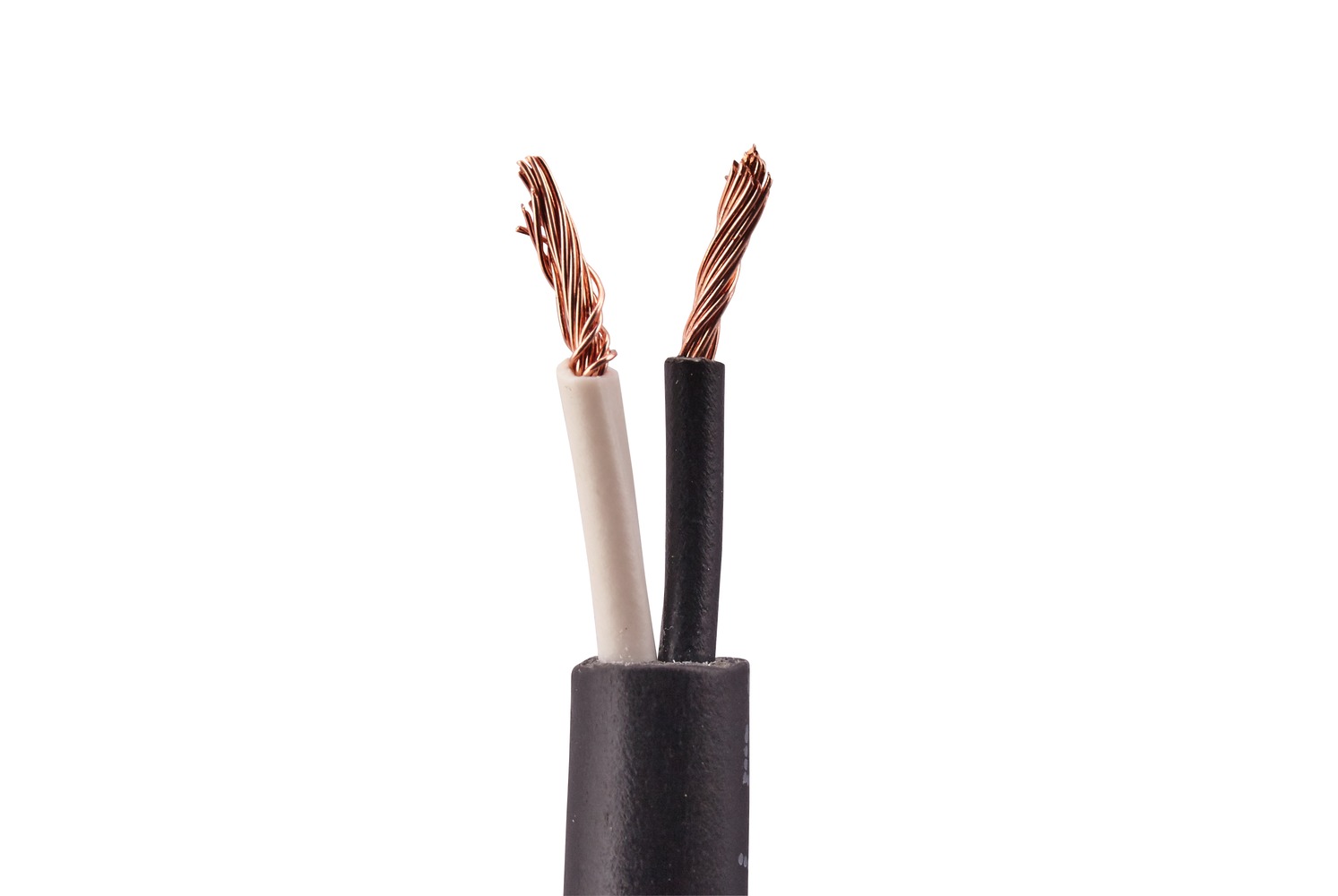

Connectoropen cable ends
Moisture protectionWaterproof to IP65
IP ratingIP5KX
ECE approvalR3 / R7
Number of LEDs2
Led colourwhite
Cable500 mm
Housing colourwhite
Power consumption1.2 W
Weight67 g
Part numberA25-004361
BrandHella

Part numbers

Our part number for this item is A25-004361. It was previously listed as PT/345600401, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PG 345 600-401
  • 1962664
  • 2416928
  • SP1068246
  • 108300763200
  • 10958024
  • 8076298
  • 41500081
  • 1019365
  • 1026148

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £6.50 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
