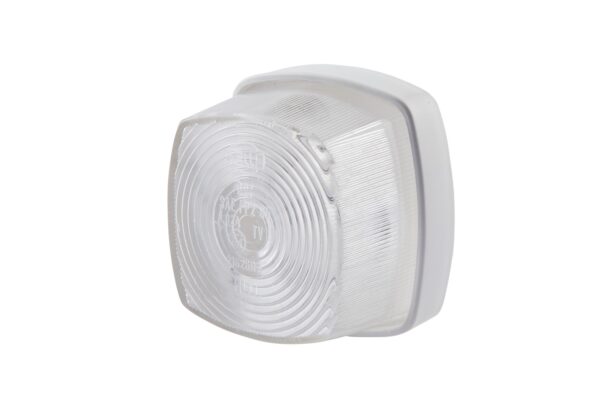

Position Light - Halogen - 12V

Hella Part no. A25-000509 Previously PT/003057001

Position Light - Halogen - 12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£5.16 ex VAT
£6.19 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12V
Technology
Halogen
Lens colour
Clear
Light functions
Position light
IP rating
IP54K

About this position lamp

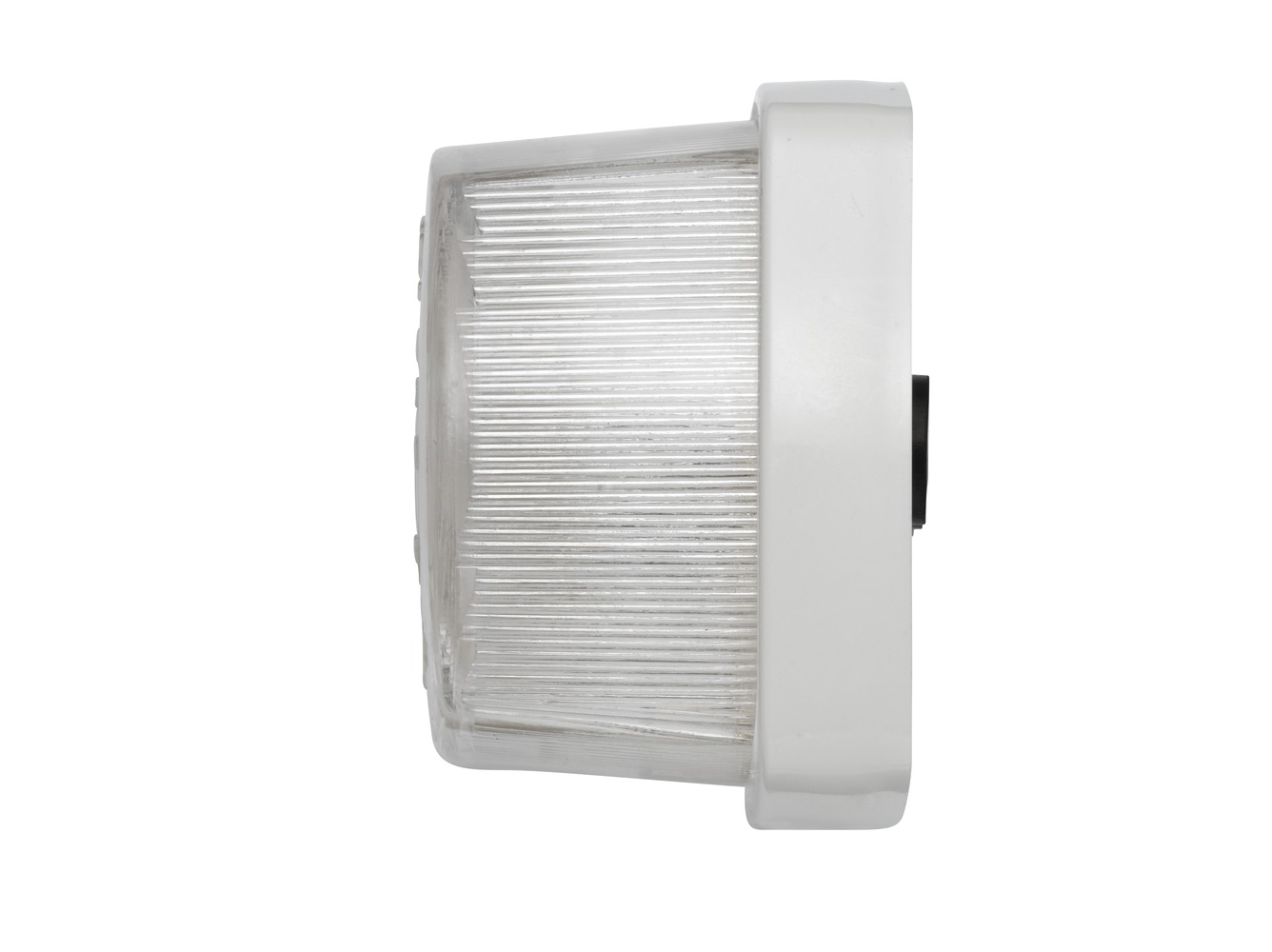

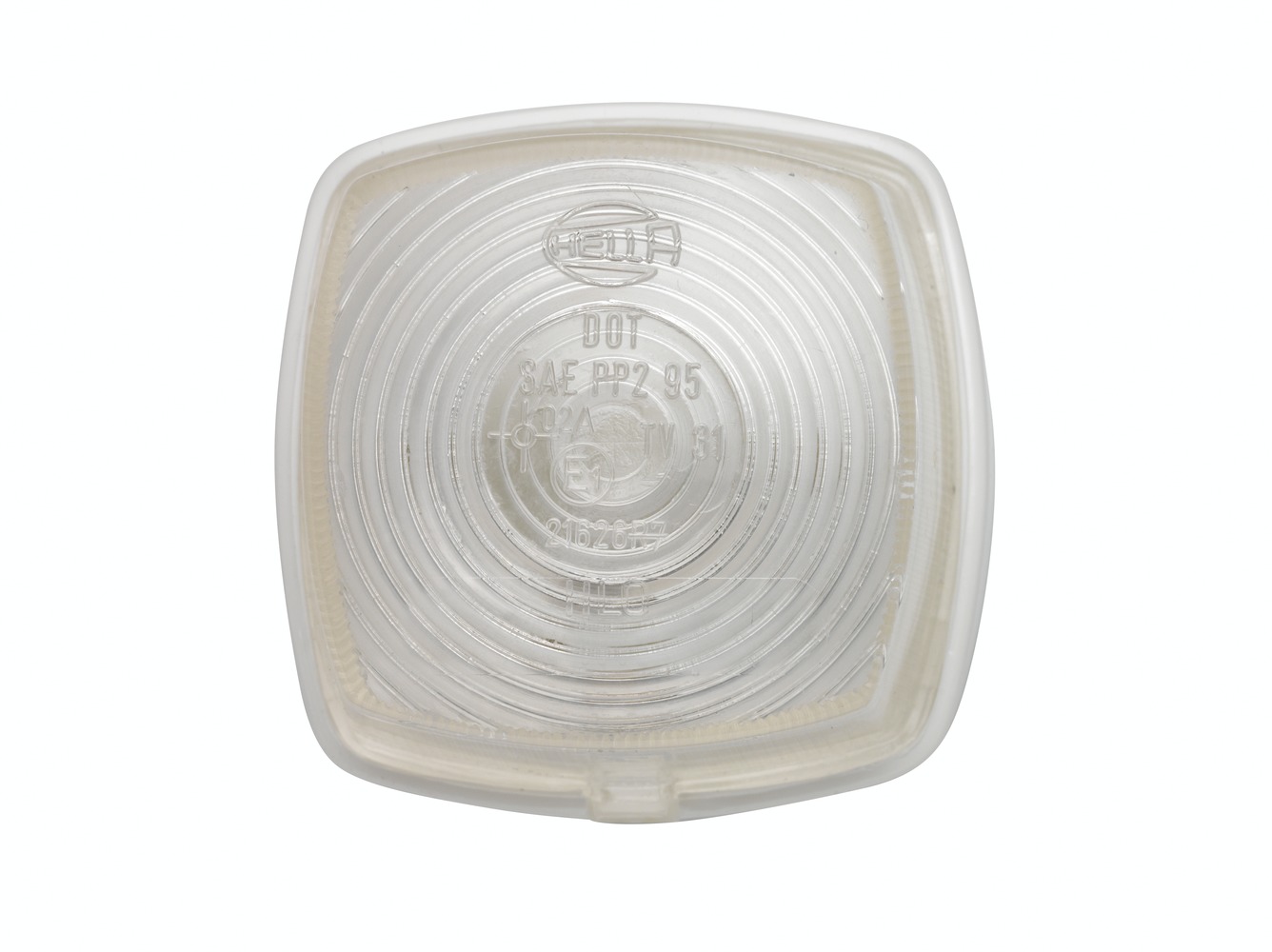

Position Light - Halogen - 12V is a Hella position lamp for 12V electrical systems. The light source is Halogen, the lens is clear, the housing is sealed to IP54K. Light functions: position light. Mounting: screw connection / mounting. It carries R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000509 (previously PT/003057001), and it replaces or is equivalent to 2PF 003 057-001, 5440129, 827092, 82252606015, 1906653, 20223864 and 11 more.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • Halogen position light for front surface-mounting (left / right, vertical / horizontal mounting) - with ECE approval
  • The position light has 1 light function: Position light

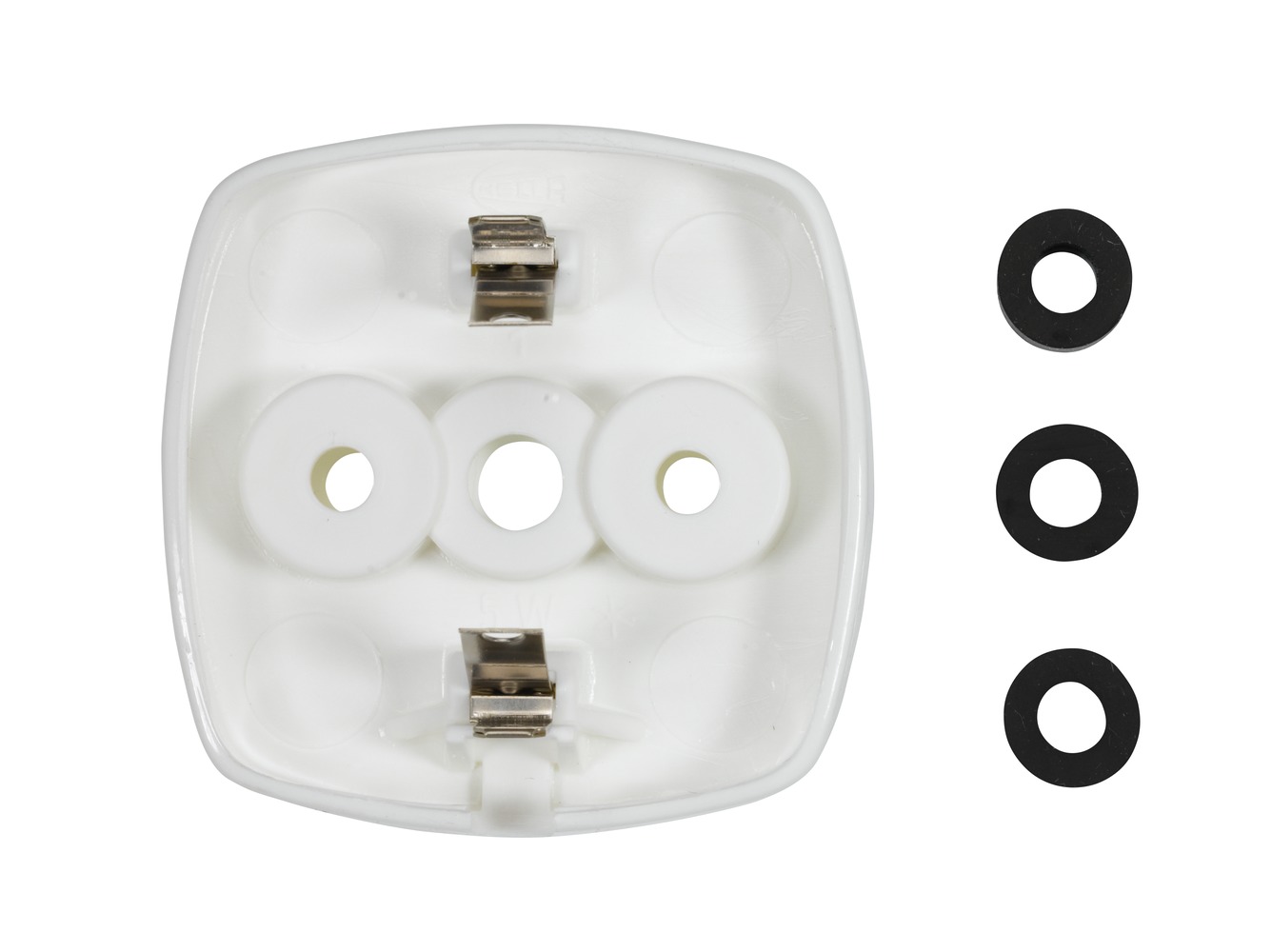

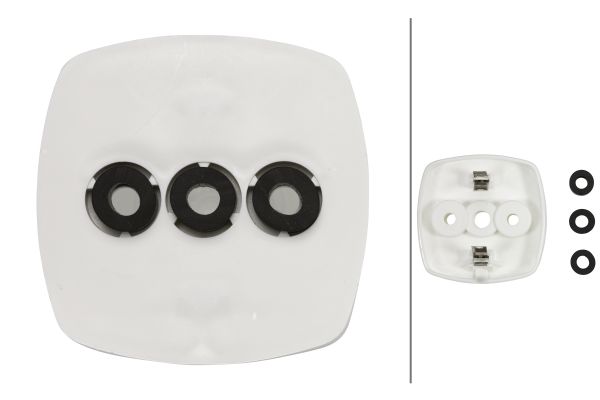

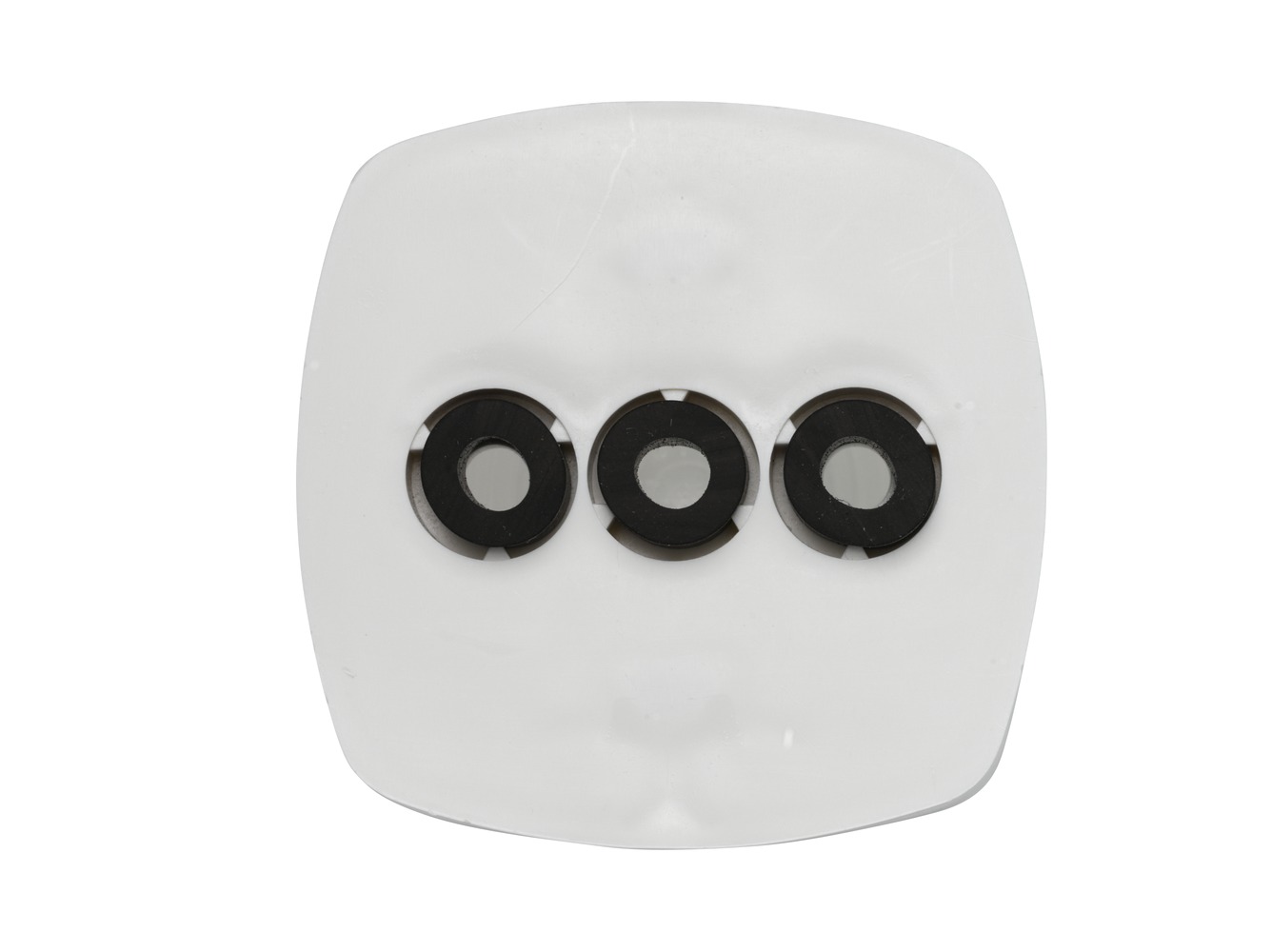

  • Lamp type: C5W, without bulbs, 2 holes for fixing screws M5, white plastic base plate
  • Length: 62mm - Width: 62mm - Height: 40mm - Lamp Type: C5W - without bulbs
  • Light functions: 1 - with position light
  • Registration Type: ECE - fulfils ECE norm: R7 - Prot.type (IP Code): IPX9K/IP5K4K
  • Housing Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage12V
TechnologyHalogen
Lens colourClear
Light functionsPosition light
IP ratingIP54K
MountingScrew Connection / mounting
Fasteningfor horizontal fastening / for vertical fastening
Bulb typeC5W
Fitting positionright / left
Height40 mm
Width62 mm
Length62 mm
ECE approvalR7
Housing colourblack
Power consumption5 W
Weight56 g
Part numberA25-000509
BrandHella

Part numbers

Our part number for this item is A25-000509. It was previously listed as PT/003057001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PF 003 057-001
  • 5440129
  • 827092
  • 82252606015
  • 1906653
  • 20223864
  • SP1030036
  • 505112
  • 607134108
  • 6071478
  • 2746
  • 401871
  • 4009002
  • A0005440129
  • 260145
  • 41710
  • 9975200
