Position Light - Halogen - 12/24V

Hella Part no. PT/003057041

Position Light - Halogen - 12/24V

5.0 Excellent, from 2 customer reviews
£6.52 inc VAT
£5.43 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £6.50, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
Position light
IP rating
IP54K

About this position lamp

Position Light - Halogen - 12/24V is a Hella position lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear, the housing is sealed to IP54K. Light functions: position light. Mounting: mounting / screw connection. It carries R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/003057041, and it replaces or is equivalent to 2PF 003 057-041, V76HB15442BB, 94463190500, 1427048, 17057041, 1906654 and 15 more.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • Halogen position light for front surface-mounting (left / right, vertical / horizontal mounting) - with ECE approval
  • The position light has 1 light function: Position light

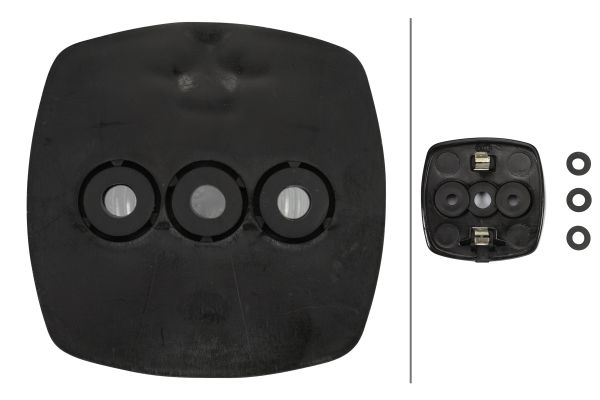

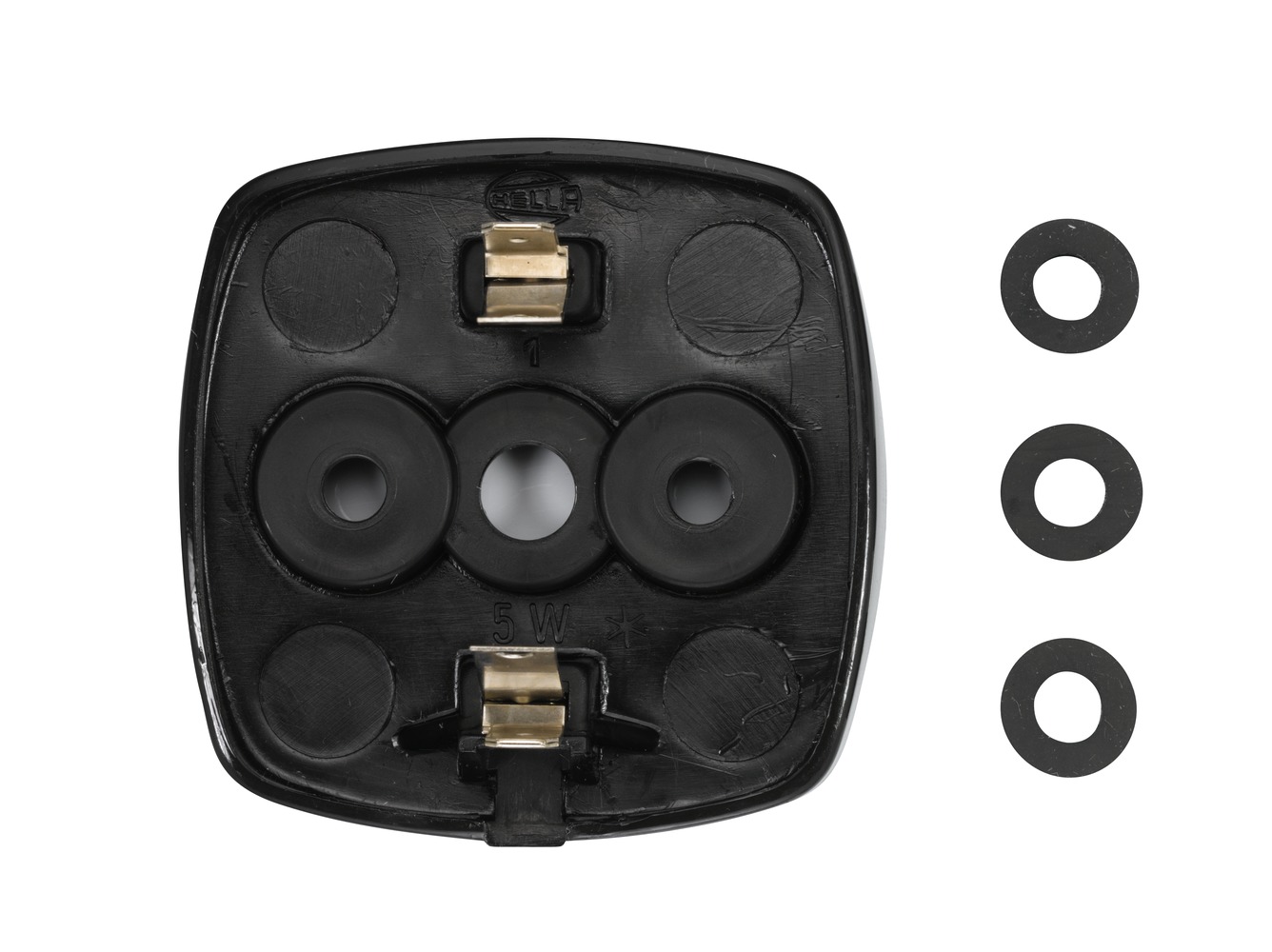

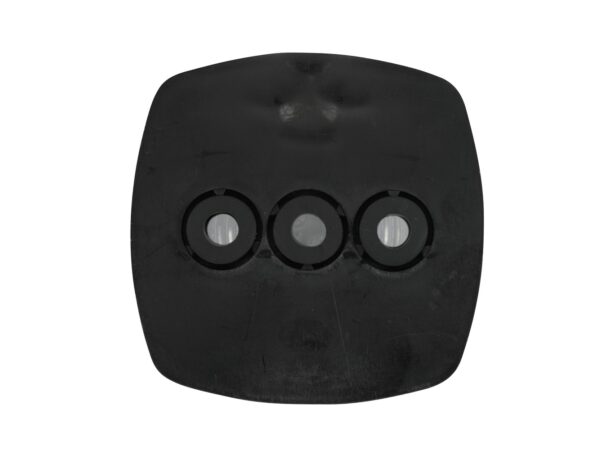

  • Lamp type: C5W, without bulbs, 2 holes for fixing screws M5, black plastic base plate
  • Length: 62mm - Width: 62mm - Height: 40mm - Lamp Type: C5W - without bulbs
  • Light functions: 1 - with position light
  • Registration Type: ECE - fulfils ECE norm: R7 - Prot.type (IP Code): IPX9K/IP5K4K
  • Housing Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsPosition light
IP ratingIP54K
Mountingmounting / Screw Connection
Fasteningfor horizontal fastening / for vertical fastening
Bulb typeC5W
Fitting positionright / left
Height40 mm
Width62 mm
Length62 mm
ECE approvalR7
Housing colourblack
Power consumption5 W
Weight56 g
Part numberPT/003057041
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PF 003 057-041
  • V76HB15442BB
  • 94463190500
  • 1427048
  • 17057041
  • 1906654
  • 8520062
  • 99708520062
  • 1335
  • CC6262010
  • 56024
  • 66053
  • 1000106419
  • 2800037001
  • 314140
  • 1020000359
  • 17893
  • 7706725
  • 9952910
  • 9952911
  • W270005746
