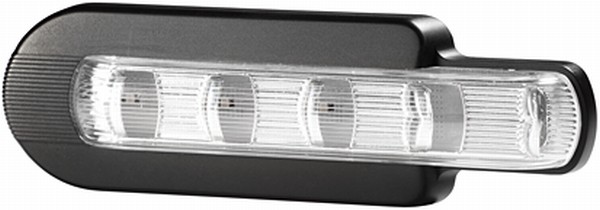

Auxiliary Direction Indicator - LED - 24V

Hella Part no. A25-002429 Previously PT/011788021

Auxiliary Direction Indicator - LED - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£36.80 ex VAT
£44.16 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
LED
Lens colour
Amber, Clear
Light functions
Indicator
IP rating
IP69K

About this indicator lamp

Auxiliary Direction Indicator - LED - 24V is a Hella indicator lamp for 24V electrical systems. The light source is LED, the lens is amber, clear, the housing is sealed to IP69K. Light functions: indicator. Mounting: mounting / screw connection. It carries R6 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-002429 (previously PT/011788021), and it replaces or is equivalent to 2BM 011 788-021, NG00555015, 1438889, 90012064300, 76112204.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. We also rely on the highest quality and the use of efficient technologies for these luminaires. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • State-of-the-art LED technology enables an optimum signal image with low power consumption
  • Tested according to IP 6K9, this luminaire is protected against the ingress of dust and water during continuous immersion
  • The luminaires have been tested according to HELLA standard 67101 class 6.1 and therefore meet the requirements for buses, trucks and tractors in large series over 6.5 tonnes
  • To extend the service life of the luminaire, the components are arranged in a temperature-optimised manner. This prevents the LEDs from overheating at high temperatures.
  • Reverse polarity protection: Incorrect contact between poles ensures that the luminaire is not damaged
  • Length: 210mm - Width: 32mm - Height: 26mm - Lamp Type: LED - Number of LEDs: 5 - with pipe/Electromagnetic Compatibility (EMC)/with frame
  • Light functions: 1 - with indicator (LED)

Specifications

Voltage24V
TechnologyLED
Lens colourAmber, Clear
Light functionsIndicator
IP ratingIP69K
Mountingmounting / Screw Connection
Fasteningfor horizontal fastening
Bulb typeLED
Fitting positionLateral Mounting
Conductor number2 -conductor
Height26 mm
Length210 mm
Width32 mm
ECE approvalR6
Connectoropen cable ends
Number of LEDs5
Led colouryellow
Cable500 mm
Weight133 g
Part numberA25-002429
BrandHella

Part numbers

Our part number for this item is A25-002429. It was previously listed as PT/011788021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2BM 011 788-021
  • NG00555015
  • 1438889
  • 90012064300
  • 76112204
