LED/Symmetric-Headlight - Modul 60 - 12V

Hella Part no. A25-005789 Previously PT/998670021

LED/Symmetric-Headlight - Modul 60 - 12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£98.08 ex VAT
£117.70 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12V
Technology
LED
Lens colour
Clear
Light functions
Dipped beam
IP rating
IP67, IP69K

About this tractor headlight

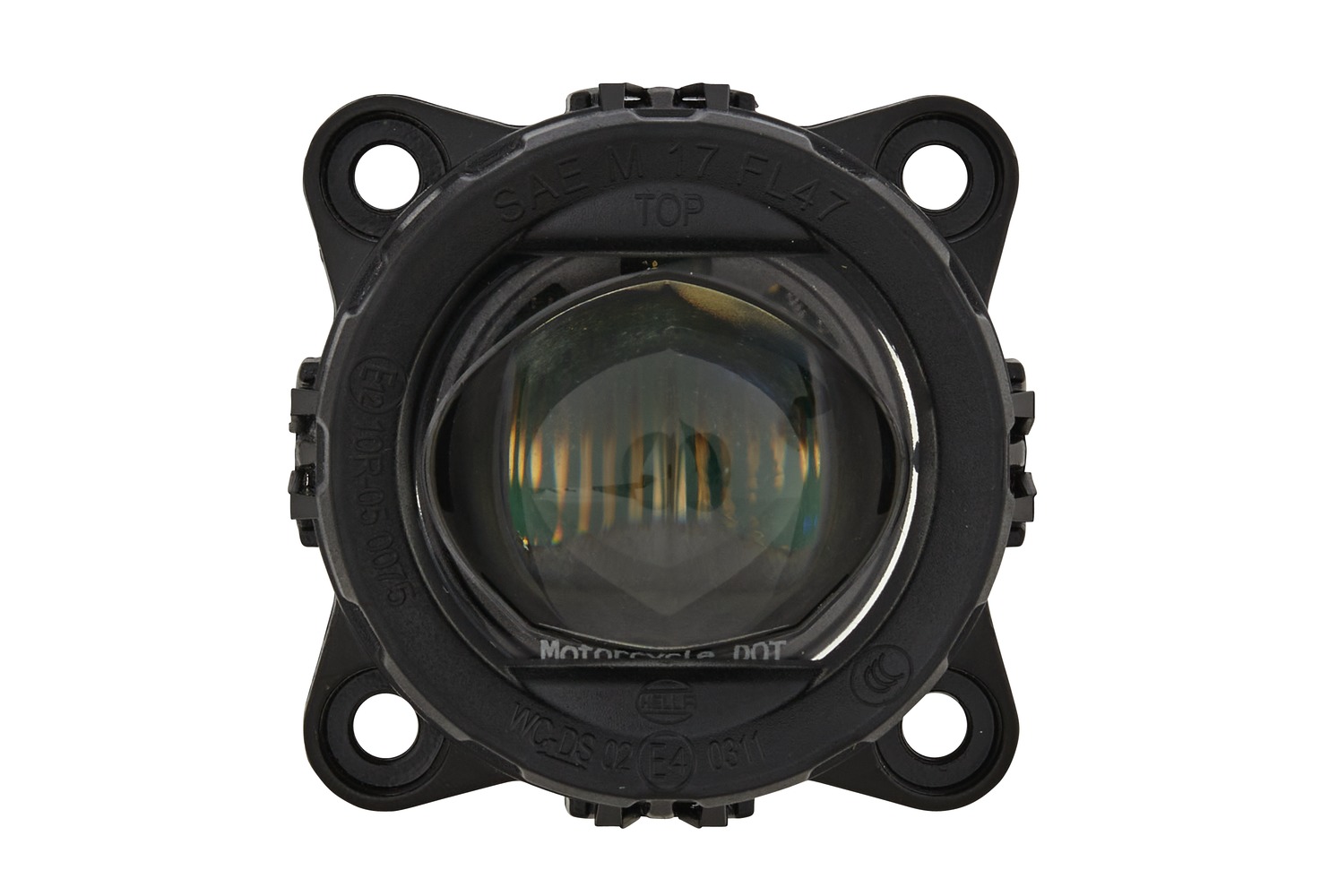

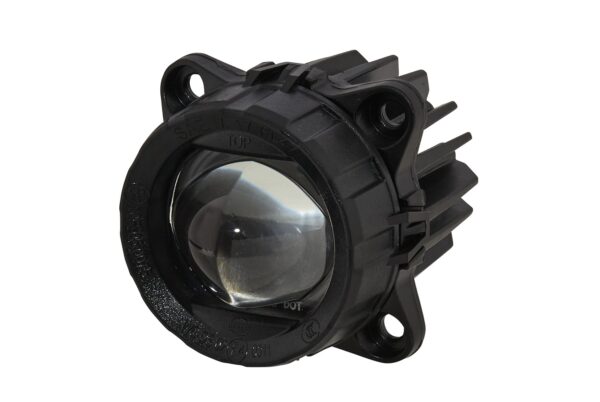

LED/Symmetric-Headlight - Modul 60 - 12V is a Hella tractor headlight for 12V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: dipped beam. Mounting: fitting. It carries R10 / R113 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005789 (previously PT/998670021), and it replaces or is equivalent to 1TL 998 670-021, 46840001.

Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA's compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.

  • Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
  • The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
  • The products are also durable and resistant to vibration, dirt and water.
  • Enables easy changeover from halogen to LED technology.

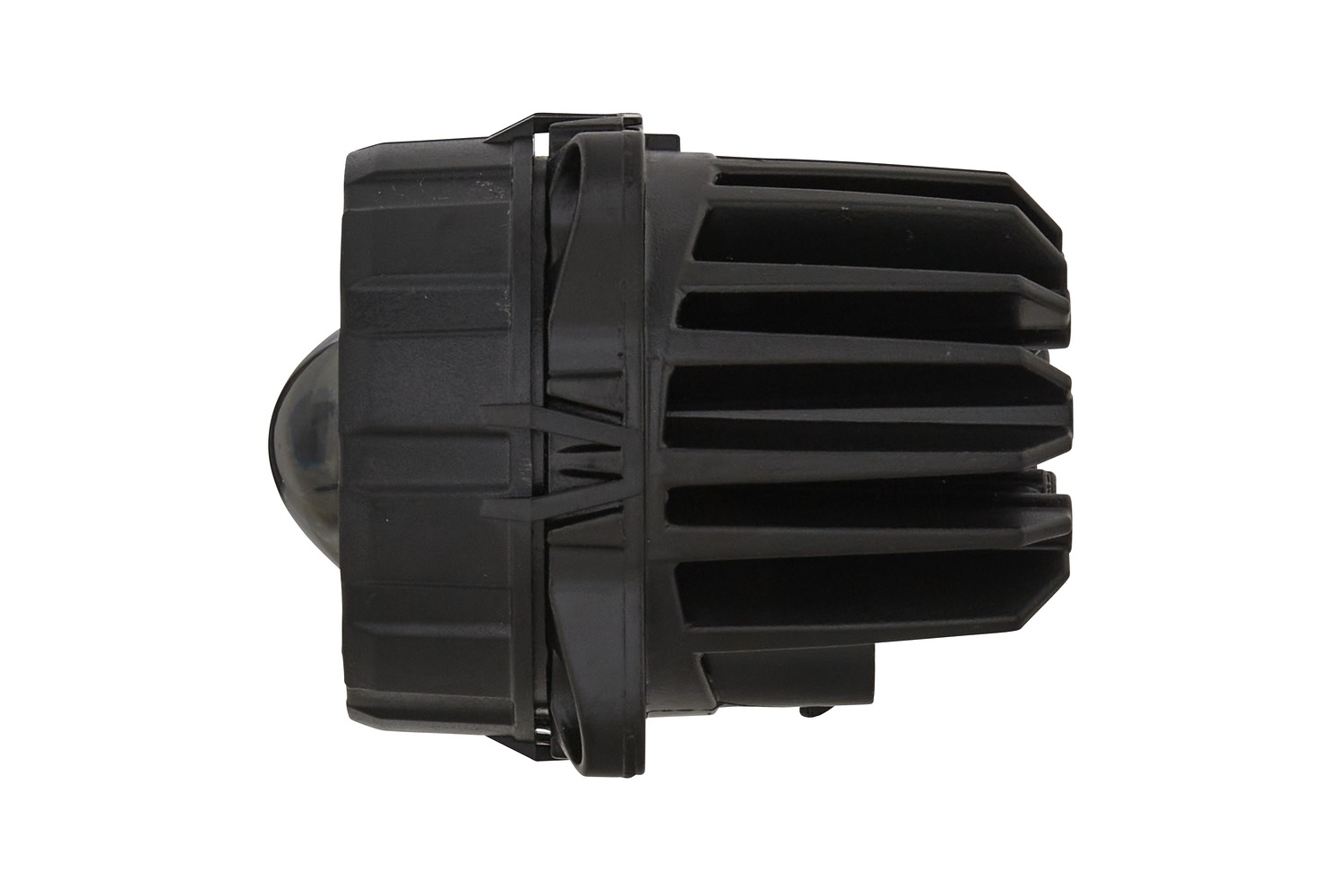

  • Width: 68mm - Height: 68mm - Depth: 84mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)/without carrier frame
  • Light functions: 1 - with low beam (LED)
  • Registration Type: CCC - fulfils ECE norm: R10/R113 - for right-hand traffic - Prot.type (IP Code): IP6K9K/IP6K7

Specifications

Voltage12V
TechnologyLED
Lens colourClear
Light functionsDipped beam
IP ratingIP67, IP69K
MountingFitting
Fastening3-point attachment
Bulb typeLED
Fitting positionleft / right
Width68 mm
Height68 mm
Depth84 mm
ECE approvalR10 / R113
Housing colourblack
Illuminated area46 mm

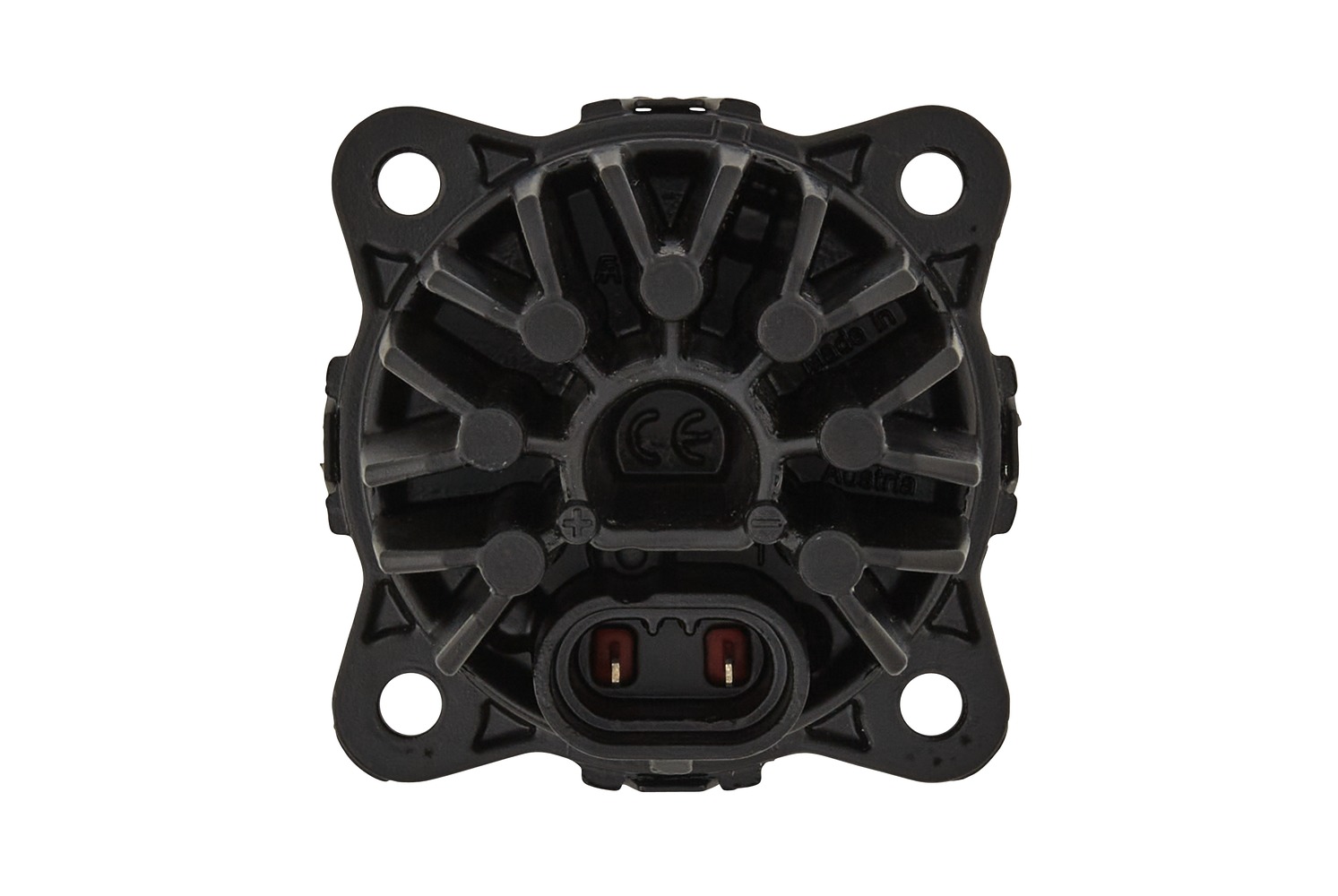

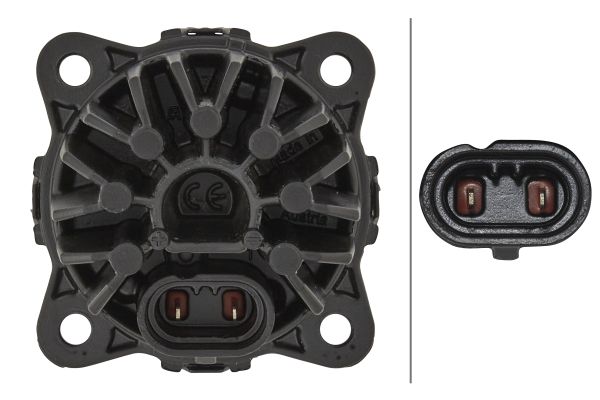

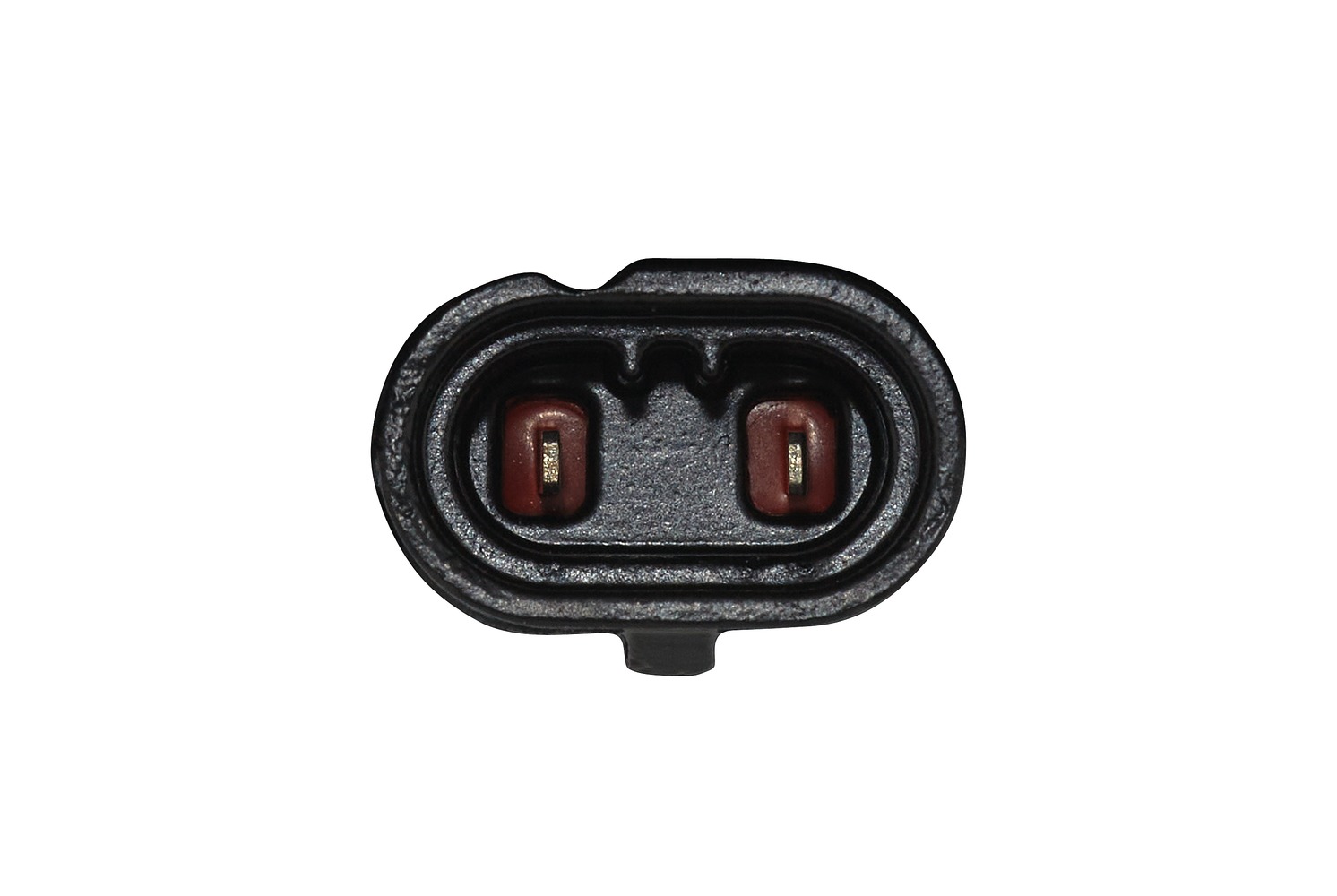

Connector typeTYCO connector (HB3)
Diffusing lens materialGlass
Left-hand/right-hand trafficfor right-hand traffic
Weight284 g
Part numberA25-005789
BrandHella

Part numbers

Our part number for this item is A25-005789. It was previously listed as PT/998670021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1TL 998 670-021
  • 46840001
