LED-Headlight - M133 - 12V

Hella Part no. A25-006144 Previously PT/996362011

LED-Headlight - M133 - 12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£210.40 ex VAT
£252.48 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12V
Technology
LED
Lens colour
Clear
Light functions
Dipped beam, High beam, Position light
IP rating
IP67, IP69K

About this tractor headlight

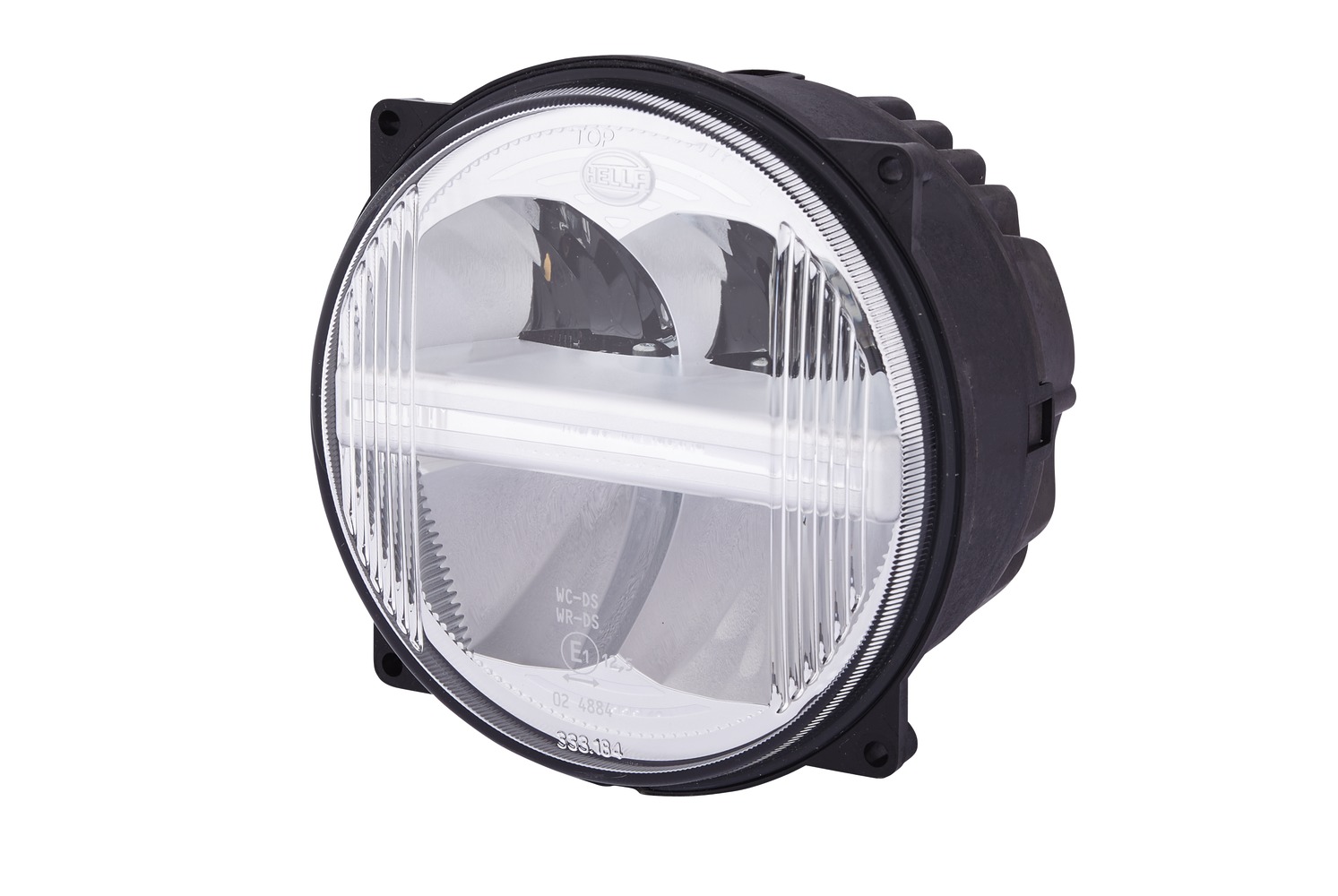

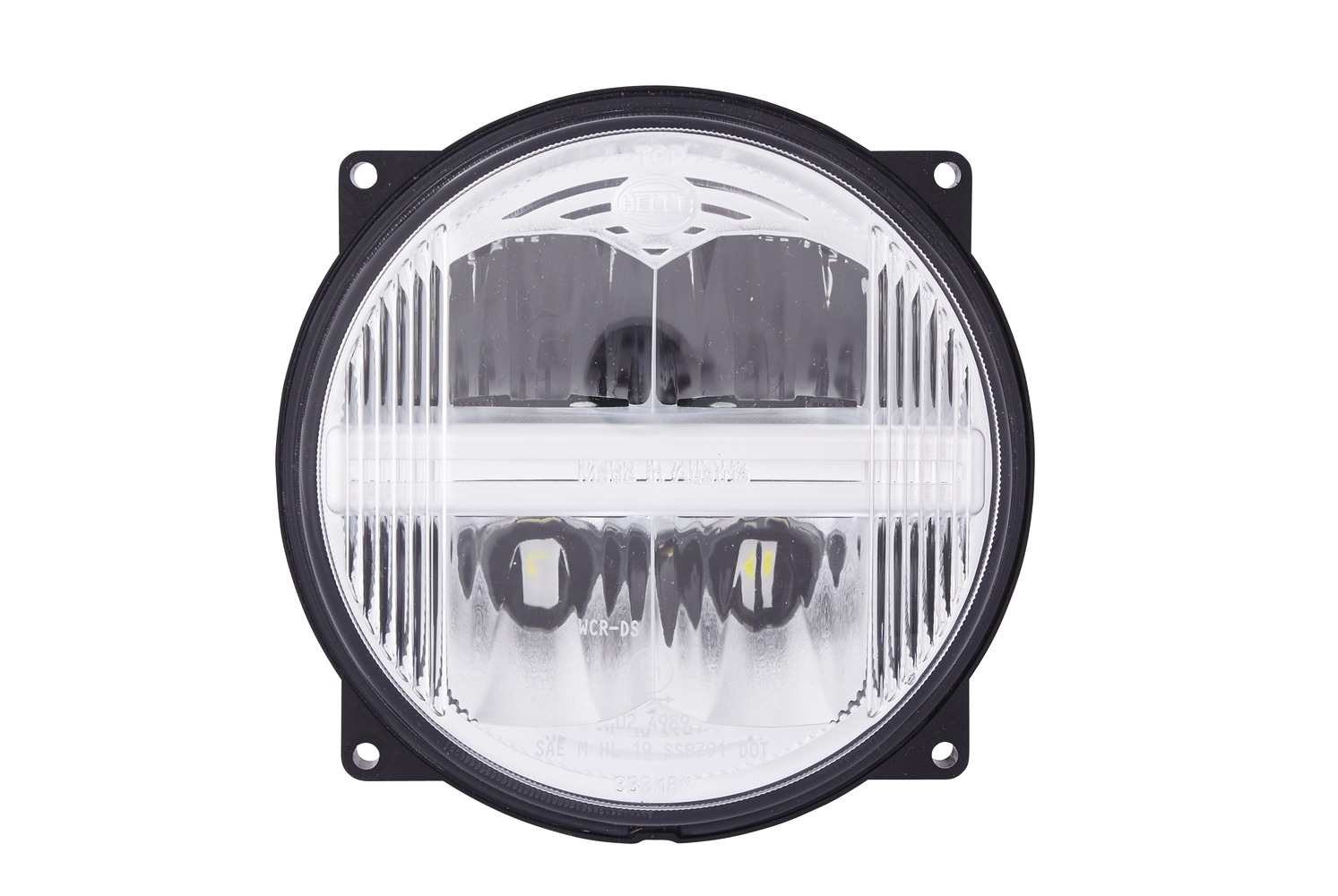

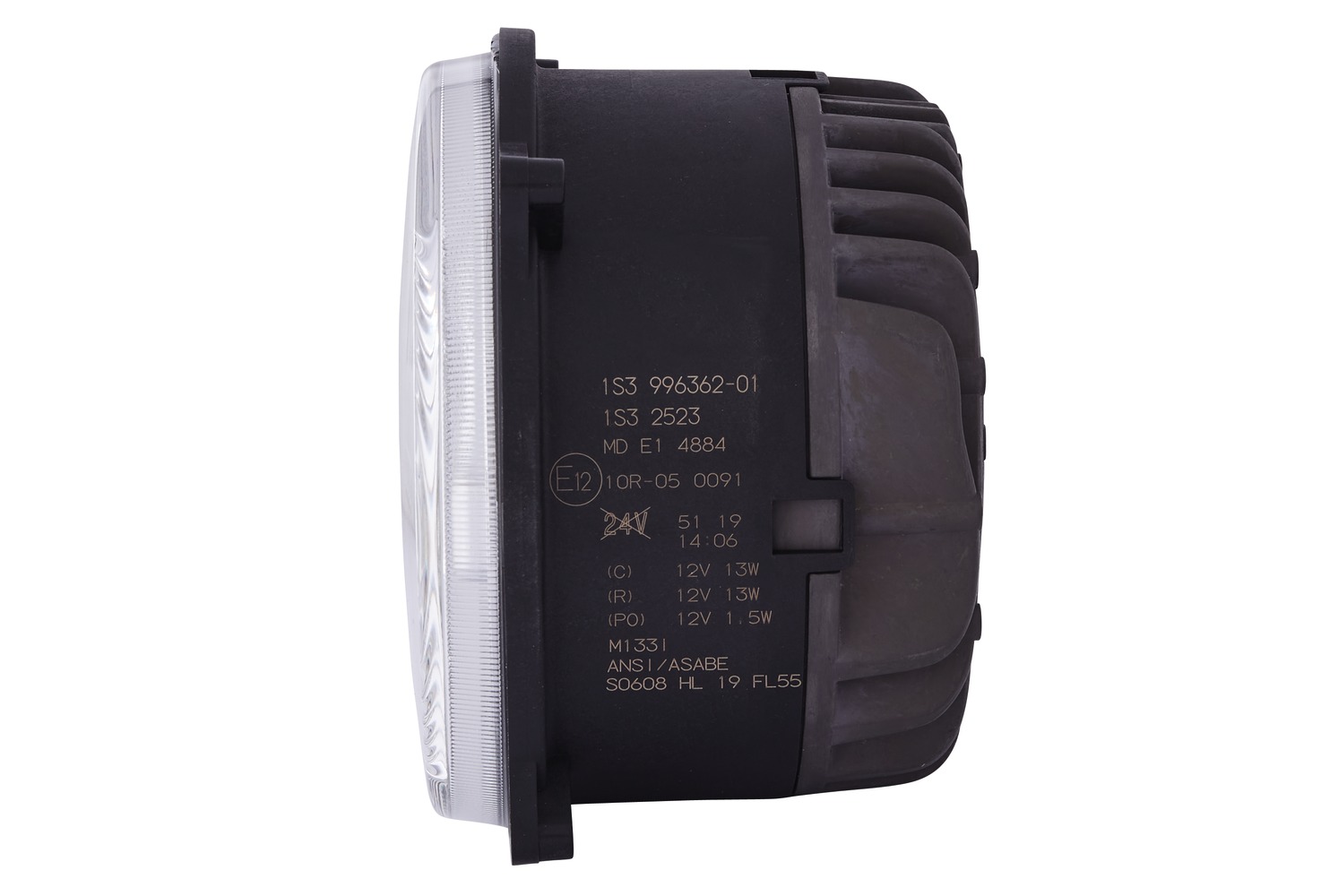

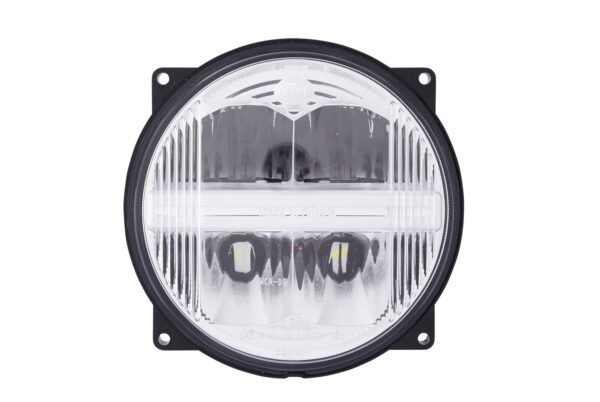

LED-Headlight - M133 - 12V is a Hella tractor headlight for 12V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: dipped beam, high beam, position light. Mounting: fitting. It carries R10 / R7.02 / R113 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-006144 (previously PT/996362011), and it replaces or is equivalent to 1S3 996 362-011.

The M133 LED main headlamp from HELLA makes it easy to switch from halogen to LED technology, especially as the low beam and high beam are combined in one housing. In addition, the headlamp is optionally available with or without position light and as a recessed or surface-mounted version. The robust aluminium housing protects the headlamps optimally and reliably against impacts and vibrations and thus withstands harsh conditions such as in the agricultural and construction machinery industry.

  • As a combination headlamp of low beam and high beam, it offers the advantage of combining low beam and high beam in one housing

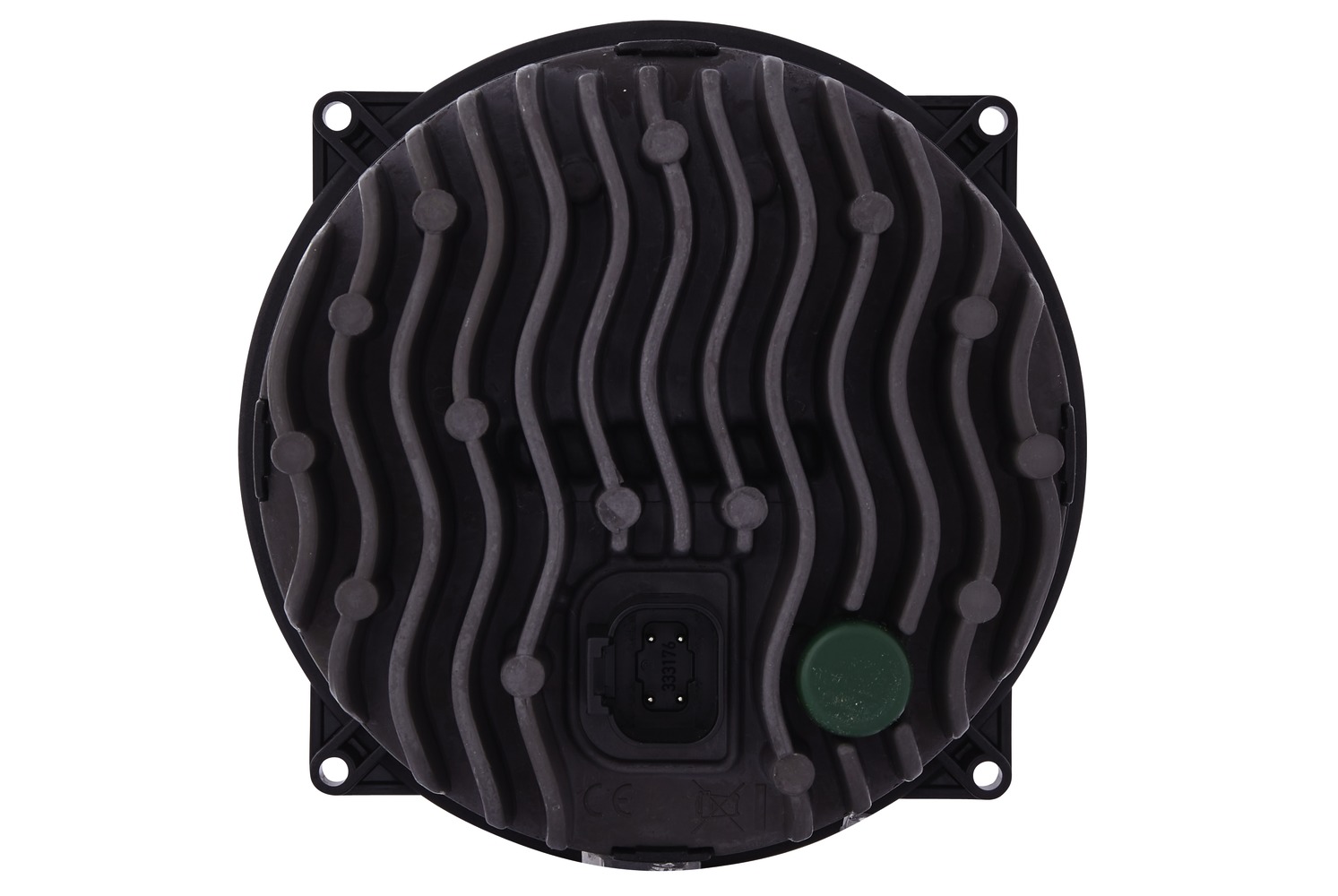

  • The robust aluminium housing protects the headlamps optimally and reliably against shocks and vibrations.
  • It can therefore withstand the harsh conditions such as those found in the agricultural and construction machinery sector.
  • Width: 106mm - Height: 139mm - Depth: 98mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
  • Light functions: 3 - with high beam (LED)/with low beam (LED)/with position light (LED)
  • Registration Type: FMVSS-tested/ECE/SAE - fulfils ECE norm: R10/R113/R7.02 - fulfils SAE norm: J222 - for left-hand traffic/for right-hand traffic - Prot.type (IP Code): IP6K7/IP6K9K
  • Diffusing Lens Material: Glass - Lens Colour: transparent

Specifications

Voltage12V
TechnologyLED
Lens colourClear
Light functionsDipped beam, High beam, Position light
IP ratingIP67, IP69K
MountingFitting
FasteningFrame holder
Bulb typeLED
Fitting positionright / left
Width106 mm
Height139 mm
Depth98 mm
Colour temperature6000 K
ECE approvalR10 / R7.02 / R113
Fulfils sae normJ222

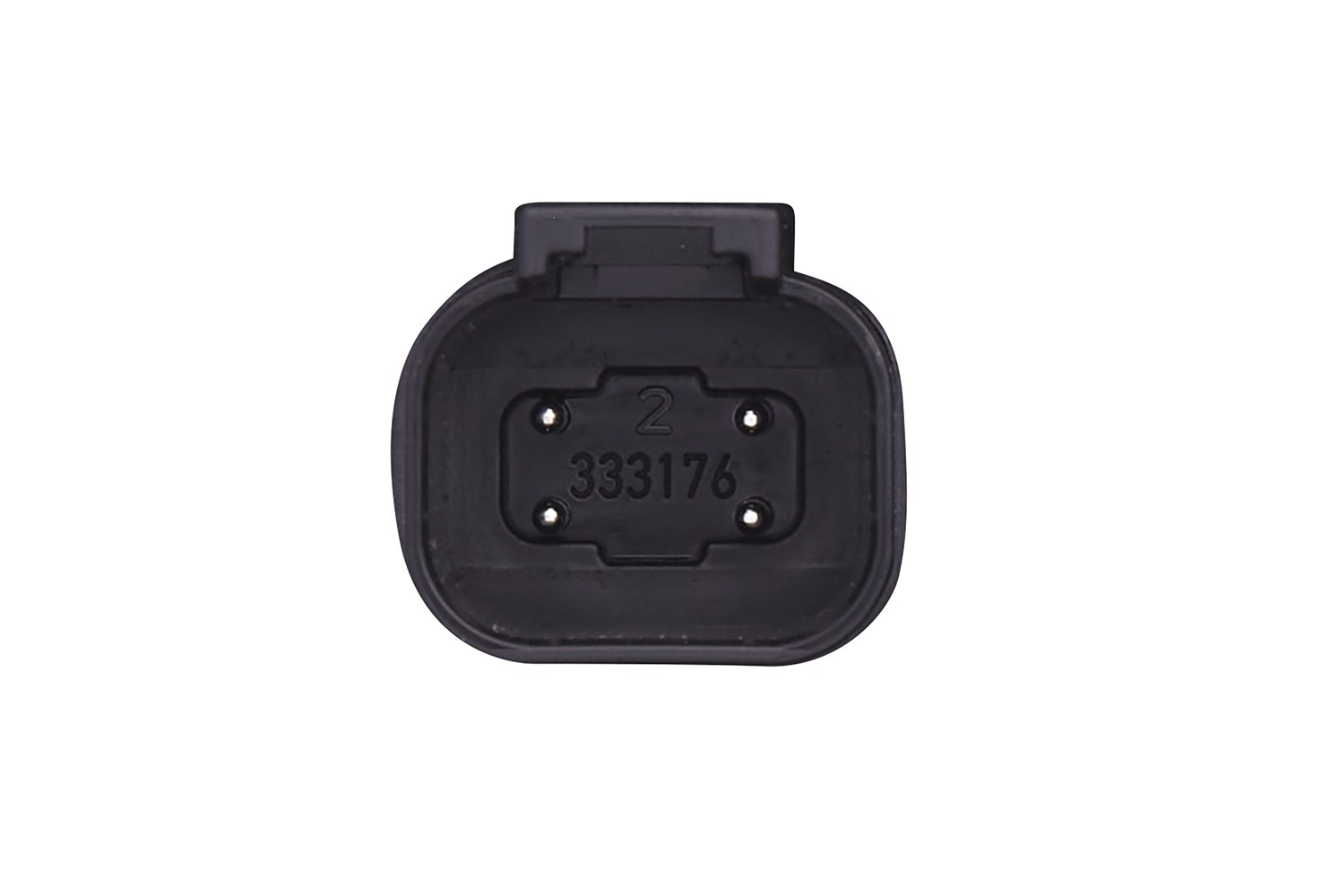

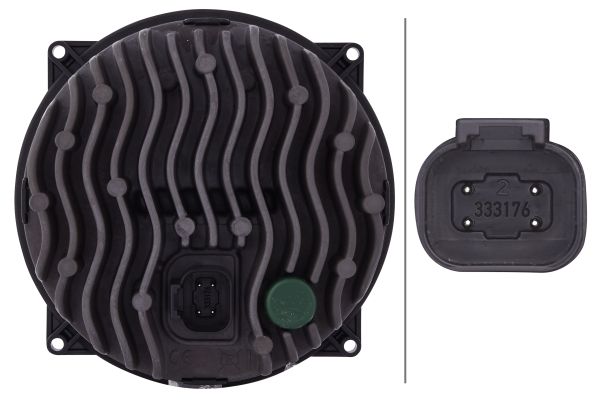

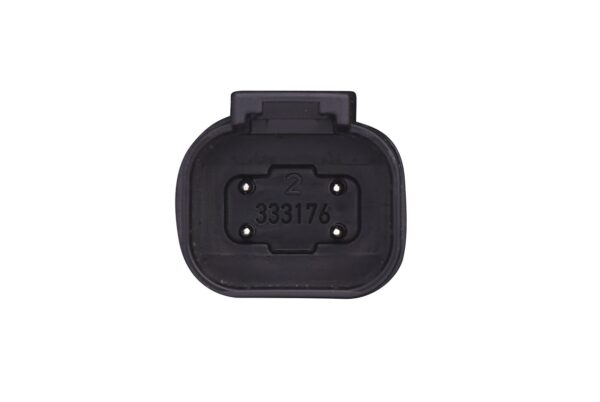

ConnectorDEUTSCH plug
Left-hand/right-hand trafficfor right-hand traffic / for left-hand traffic
Diffusing lens materialGlass
Diffusing lens typeClear diffusing lens
Weight860 g
Weight960 g
Part numberA25-006144
BrandHella

Part numbers

Our part number for this item is A25-006144. It was previously listed as PT/996362011, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1S3 996 362-011
