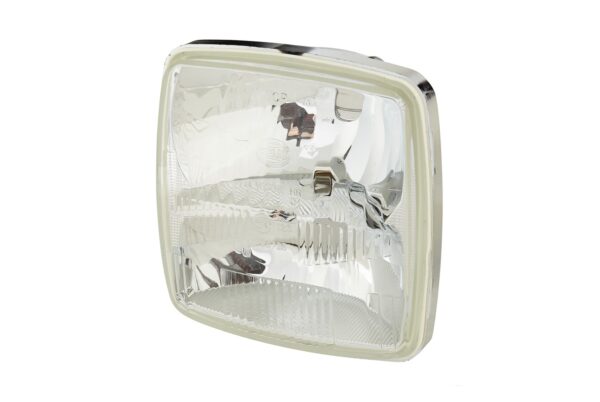

Halogen-Insert, headlight - 12/24V

Hella Part no. A25-005345 Previously PT/990185101

Halogen-Insert, headlight - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£47.05 ex VAT
£56.46 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
Dipped beam, High beam, Position light

About this tractor headlight

Halogen-Insert, headlight - 12/24V is a Hella tractor headlight for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: dipped beam, high beam, position light. Mounting: screw connection / fitting. It carries R112 / R113 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005345 (previously PT/990185101), and it replaces or is equivalent to 1SA 990 185-101, 961670, 12.5.

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

  • Halogen headlamp insert, main headlamp (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
  • The headlamp insert has 3 light functions: Low beam / High beam / Position light
  • Lamp type: H7/H3/T4W, without bulbs
  • Ø: 140mm - Length: 140mm - Width: 140mm - Height: 140mm - Depth: 73mm - Lamp Type: H7/H3/T4W - without bulb - without bulbs
  • Light functions: 3 - with low beam/with position light/with high beam
  • fulfils ECE norm: R113/R112/R7 - for right-hand traffic/for left-hand traffic
  • Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsDipped beam, High beam, Position light
MountingScrew Connection / Fitting
FasteningClamp Mounting
Bulb typeT4W / H7 / H3
Fitting positionright / left
Height140 mm
Width140 mm
Length140 mm
Depth73 mm
Ø140 mm
ECE approvalR112 / R113 / R7
ConnectorBlade Terminal
Left-hand/right-hand trafficfor right-hand traffic / for left-hand traffic
Housing colourblack
Illuminated area120 x 120 mm
Shaperectangular
Diffusing lens materialGlass
Weight403 g
Part numberA25-005345
BrandHella

Part numbers

Our part number for this item is A25-005345. It was previously listed as PT/990185101, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1SA 990 185-101
  • 961670
  • 12.5

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
