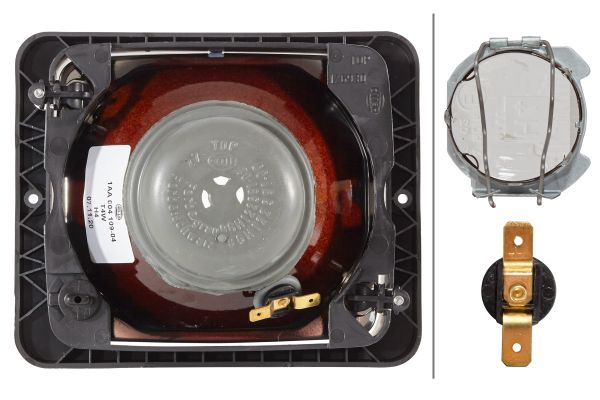

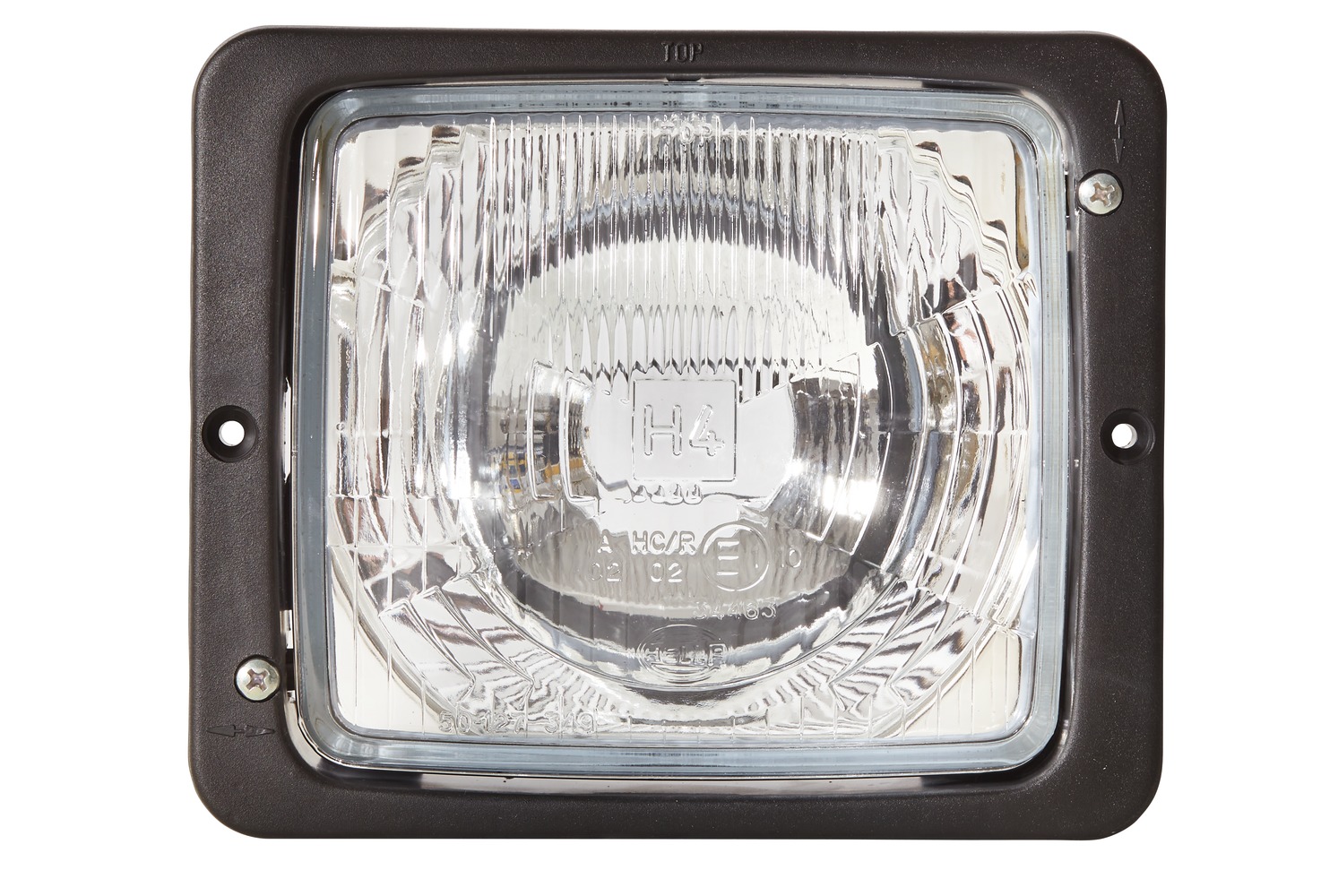

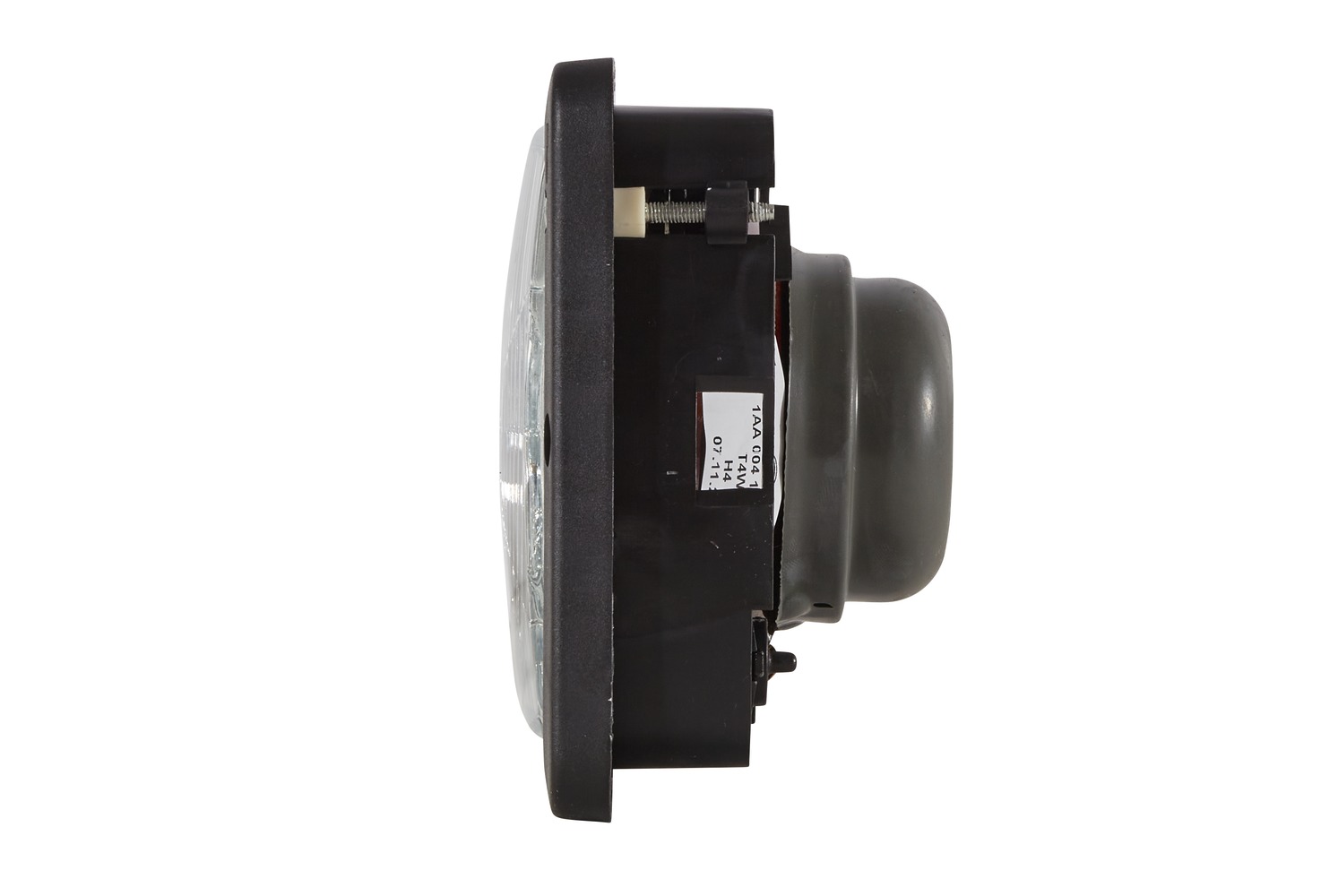

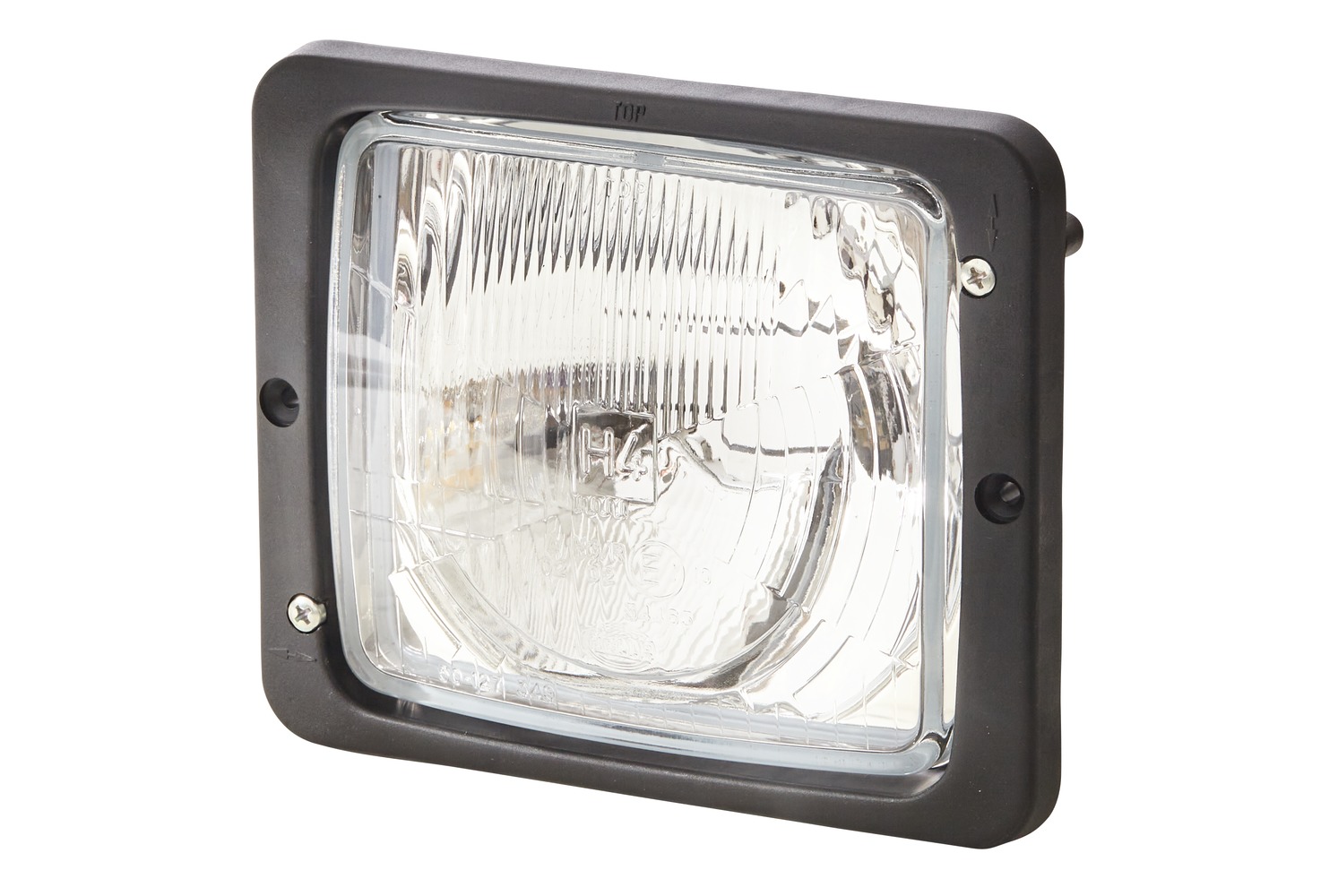

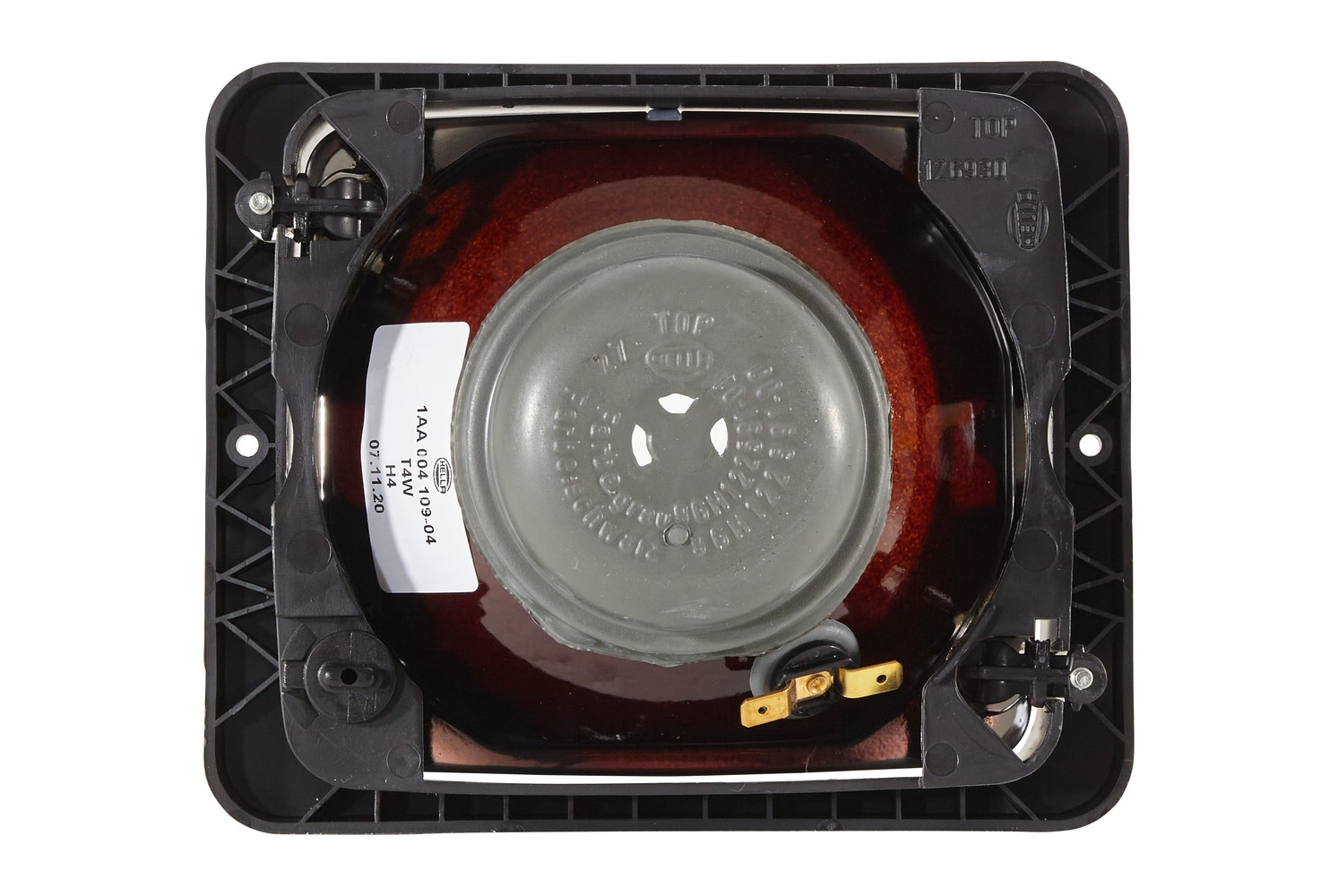

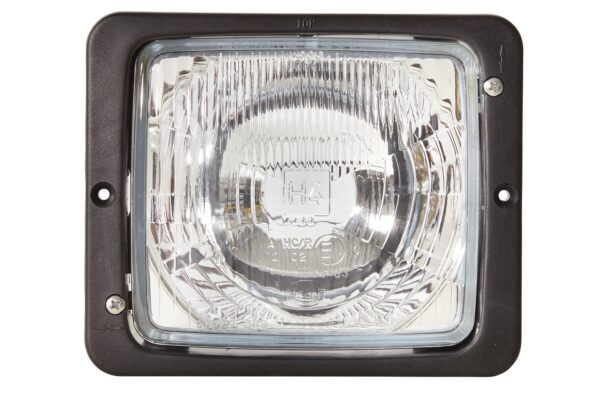

Halogen-Headlight - 12/24V
5.0 Excellent, from 2 customer reviewsIn stock, 100 available
-
Dispatched within 1 working day
UK mainland delivery usually takes 2 to 3 working days - UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international
In stock
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- Halogen
- Lens colour
- Clear
- Light functions
- Dipped beam, High beam, Position light
- IP rating
- IP54K
About this tractor headlight
Halogen-Headlight - 12/24V is a Hella tractor headlight for 12/24V electrical systems. The light source is Halogen, the lens is clear, the housing is sealed to IP54K. Light functions: dipped beam, high beam, position light. Mounting: fitting.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is PT/004109041, and it replaces or is equivalent to 1AA 004 109-041, 7512029000, 75120290000, 82251016029, 14529032, 438195130 and 22 more.
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.
- Halogen main headlamp for installation - for right-hand traffic, with ECE approval
- The headlamp has 3 light functions: Low beam / High beam / Position light

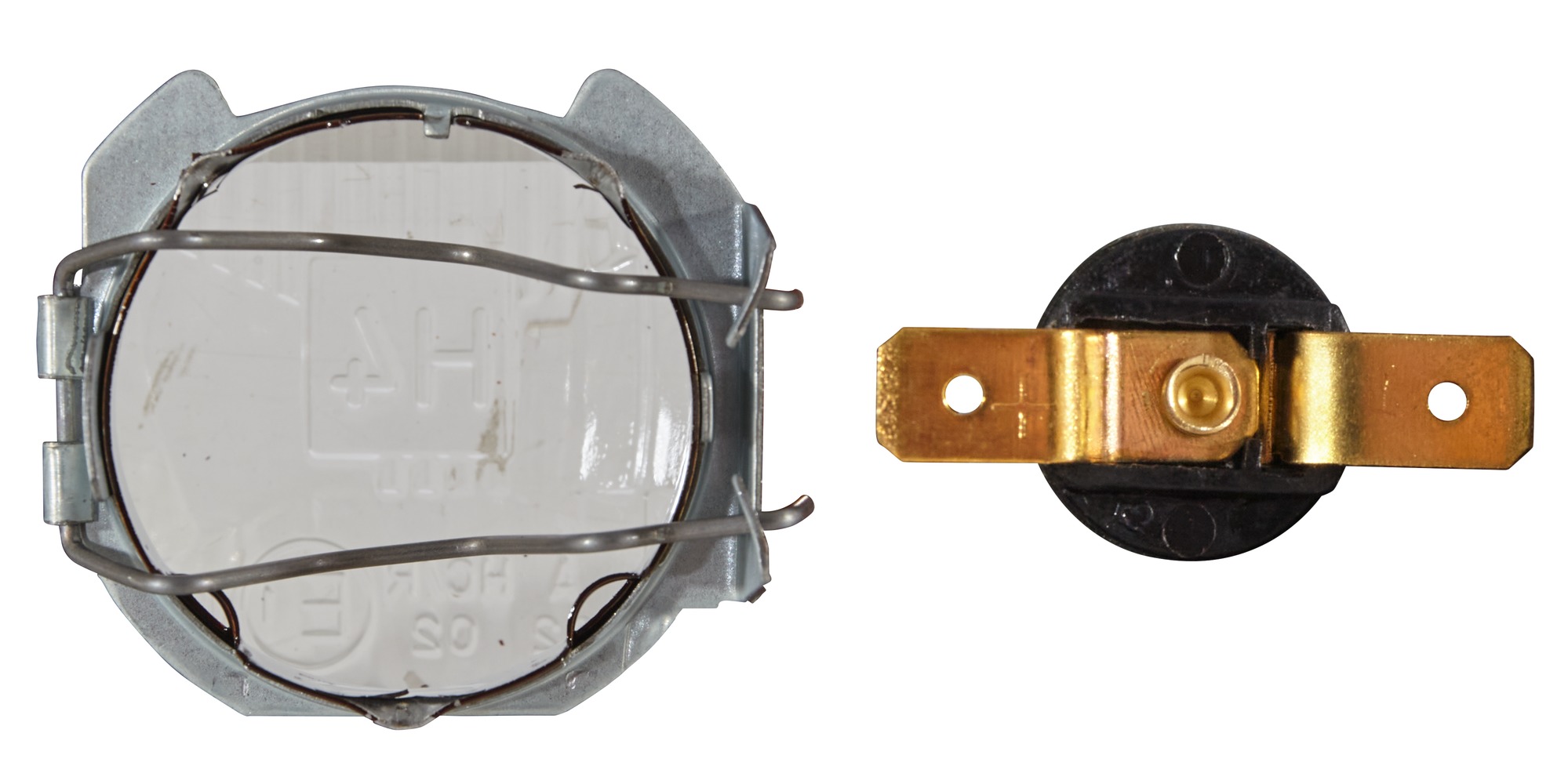

- Lamp type: H4/T4W, without bulbs
- Width: 173mm - Height: 144mm - Depth: 99mm - Lamp Type: T4W/H4 - without bulbs
- Light functions: 3 - with position light/with high beam/with low beam
- Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IP5K4K
- Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: transparent
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | Halogen |
| Lens colour | Clear |
| Light functions | Dipped beam, High beam, Position light |
| IP rating | IP54K |
| Mounting | Fitting |
| Bulb type | T4W / H4 |
| Fitting position | right / left |
| Width | 173 mm |
| Height | 144 mm |
| Depth | 99 mm |
| Outer diameter | 131 mm |
| Connector | Blade Terminal |
| Left-hand/right-hand traffic | for right-hand traffic |
| Housing colour | Black |
| Illuminated area | 138 x 124 mm |
| Diffusing lens material | Glass |
| Weight | 520 g |
| Part number | PT/004109041 |
| Brand | Hella |
Part numbers
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1AA 004 109-041
- 7512029000
- 75120290000
- 82251016029
- 14529032
- 438195130
- 27347
- D45085800
- 4918463M91
- 56021
- U56021
- 1709575
- 1709675
- 3404170R94
- 71403698
- 34041170P94
- 331466
- 80331466
- 4177577
- 6001191
- 607142808
- 335350660915
- 5350660915
- 4918463M
- 503771
- 602448
- 5800023
- 19700400
