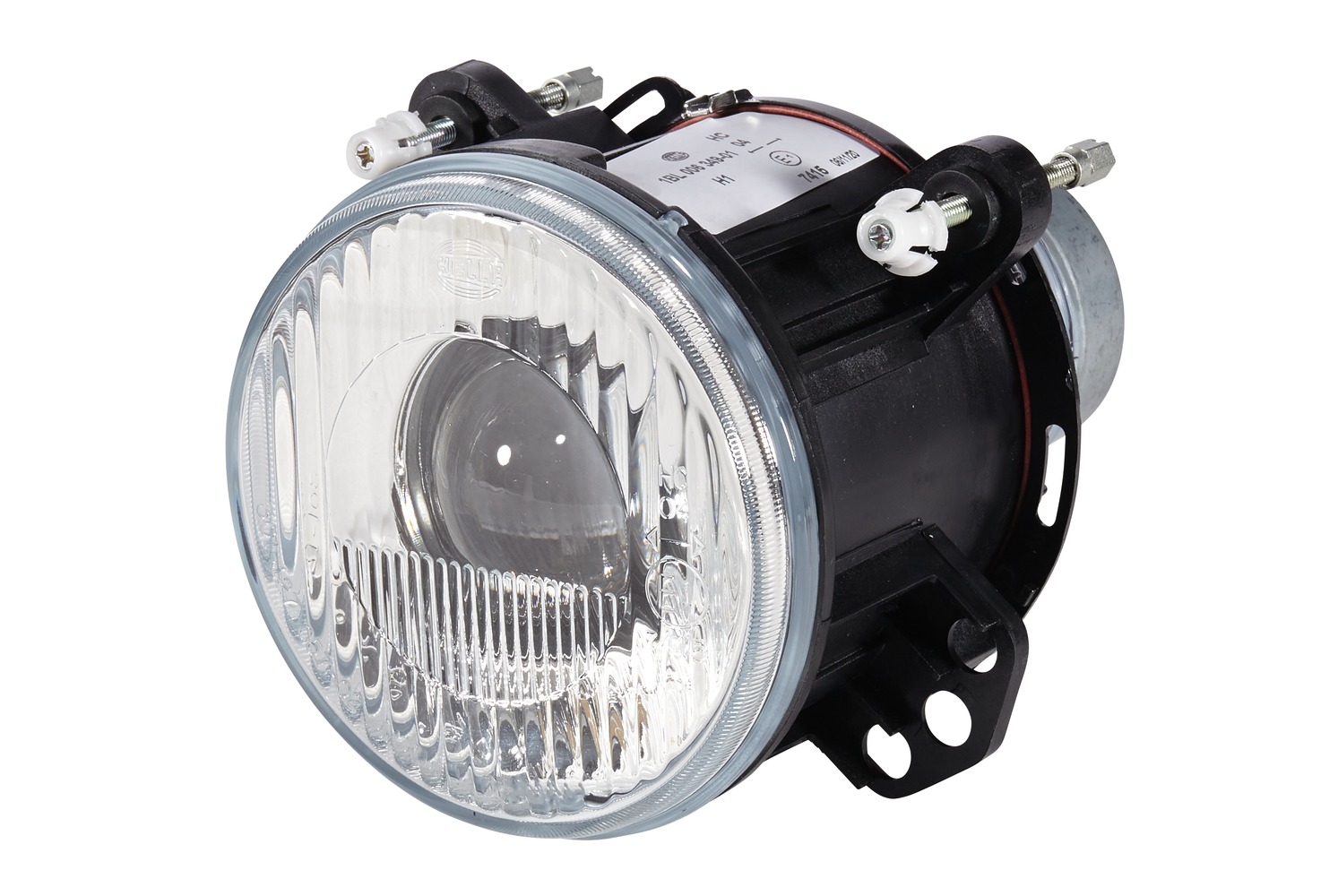

Halogen/DE-Insert, headlight - 24/12V

Hella Part no. PT/006349011

Halogen/DE-Insert, headlight - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£88.36 ex VAT
£106.03 inc VAT

Out of stock

Out of stock

Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
Dipped beam

About this tractor headlight

Halogen/DE-Insert, headlight - 24/12V is a Hella tractor headlight for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: dipped beam. Mounting: fitting. It carries R8 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/006349011, and it replaces or is equivalent to 1BL 006 349-011, 1H0052167A, 853VAG656A, HLA006349011, 1017227, 2704119 and 3 more.

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

  • DE/Halogen headlamp insert, main headlamp for installation - for right-hand traffic, with ECE approval
  • The headlamp insert has 1 light function: Low beam
  • Lamp type: H1, with adjusting screw for headlamp levelling
  • Ø: 124mm - Length: 167mm - Width: 124mm - Height: 92mm - Depth: 189mm - Lamp Type: H1 - with adjuster - without bulbs
  • Light functions: 1 - with low beam
  • fulfils ECE norm: R8 - for right-hand traffic
  • Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsDipped beam
MountingFitting
FasteningFour-point attachment
Bulb typeH1
Fitting positionright / left
Height92 mm
Width124 mm
Length167 mm
Depth189 mm
Ø124 mm
ECE approvalR8
ConnectorMale
Left-hand/right-hand trafficfor right-hand traffic
Housing colourblack
Illuminated area120 mm
Shaperound
Diffusing lens materialGlass
Weight733 g
Part numberPT/006349011
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1BL 006 349-011
  • 1H0052167A
  • 853VAG656A
  • HLA006349011
  • 1017227
  • 2704119
  • 417067
  • 41706700
  • 87768800
