Halogen/DE-Headlight - Modul 60 - 12/24V

Hella Part no. PT/998570001

Halogen/DE-Headlight - Modul 60 - 12/24V

5.0 Excellent, from 2 customer reviews
£46.92 inc VAT
£39.10 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £6.50, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
Halogen
Light functions
Dipped beam

About this tractor headlight

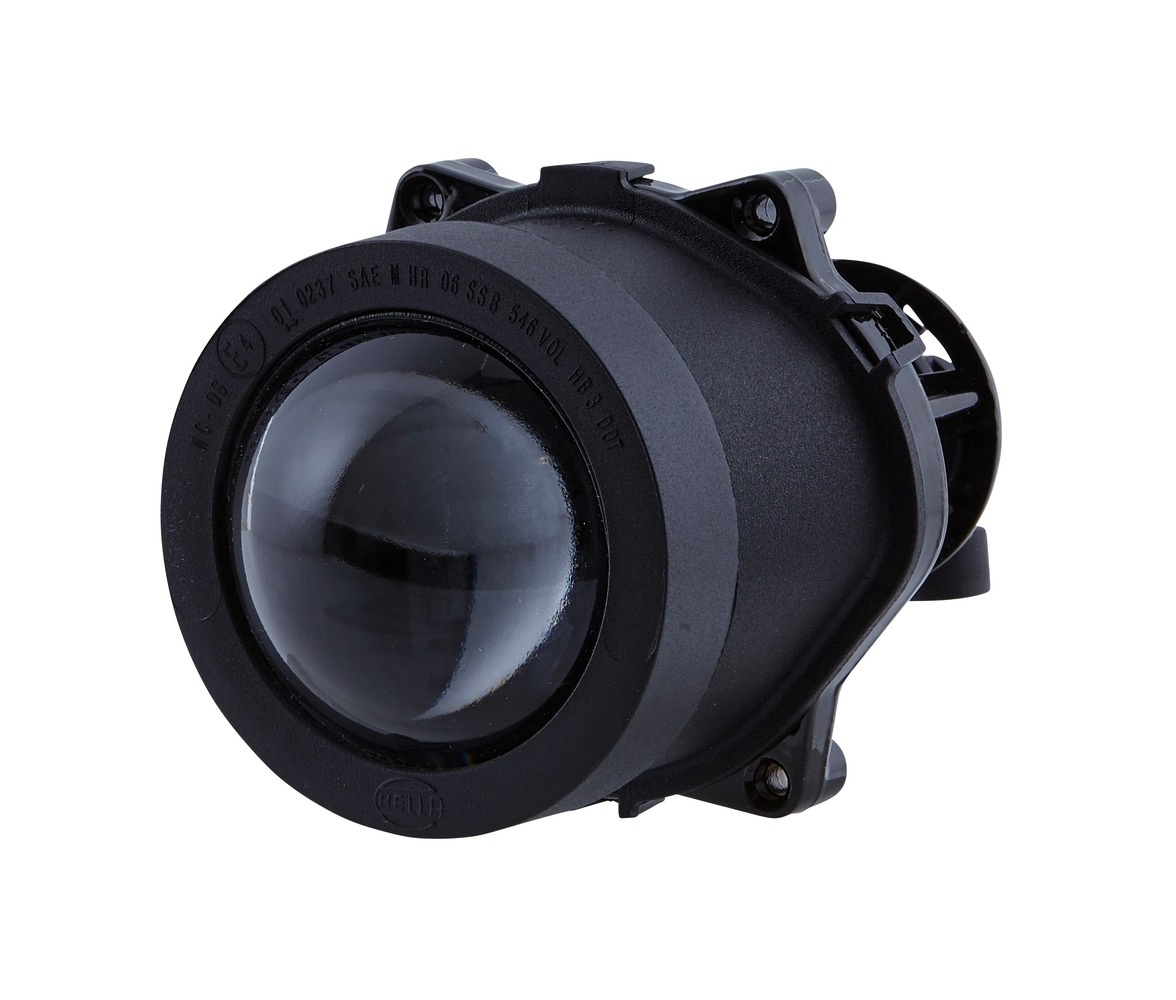

Halogen/DE-Headlight - Modul 60 - 12/24V is a Hella tractor headlight for 12/24V electrical systems. The light source is Halogen. Light functions: dipped beam. Mounting: fitting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/998570001, and it replaces or is equivalent to 1BL 998 570-001, 21521560, 23119205, 3010414, 401017, 90507369 and 4 more.

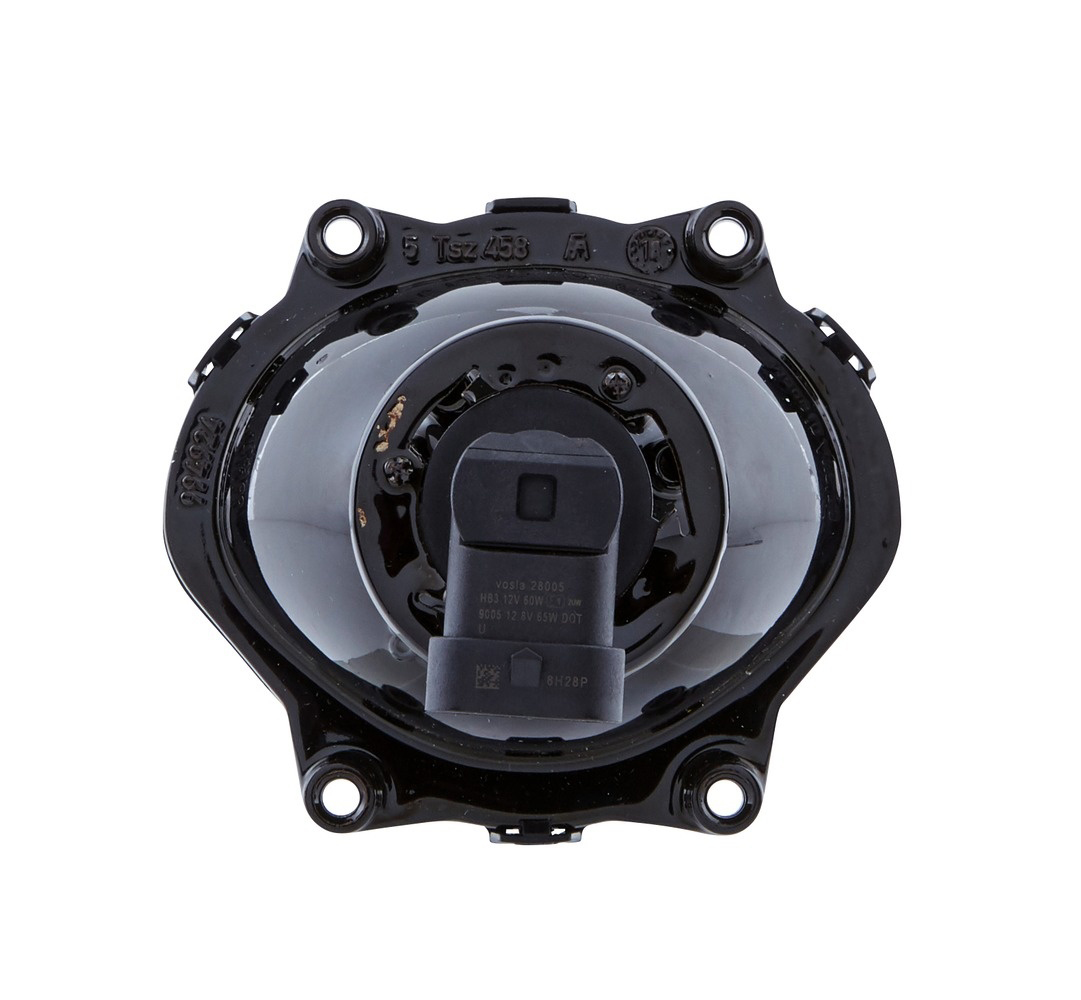

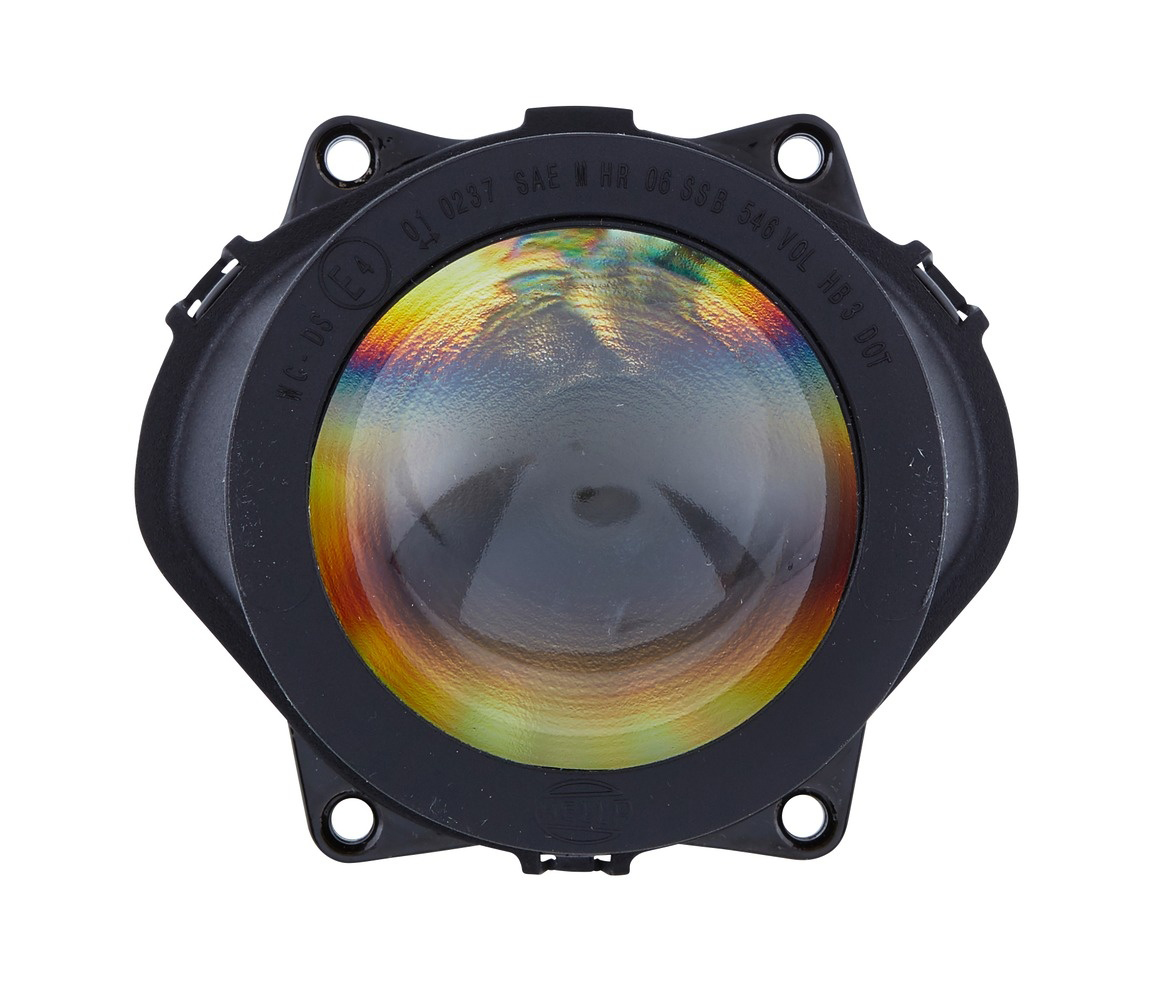

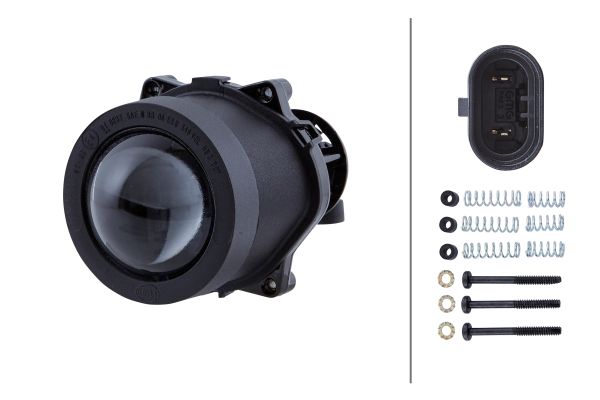

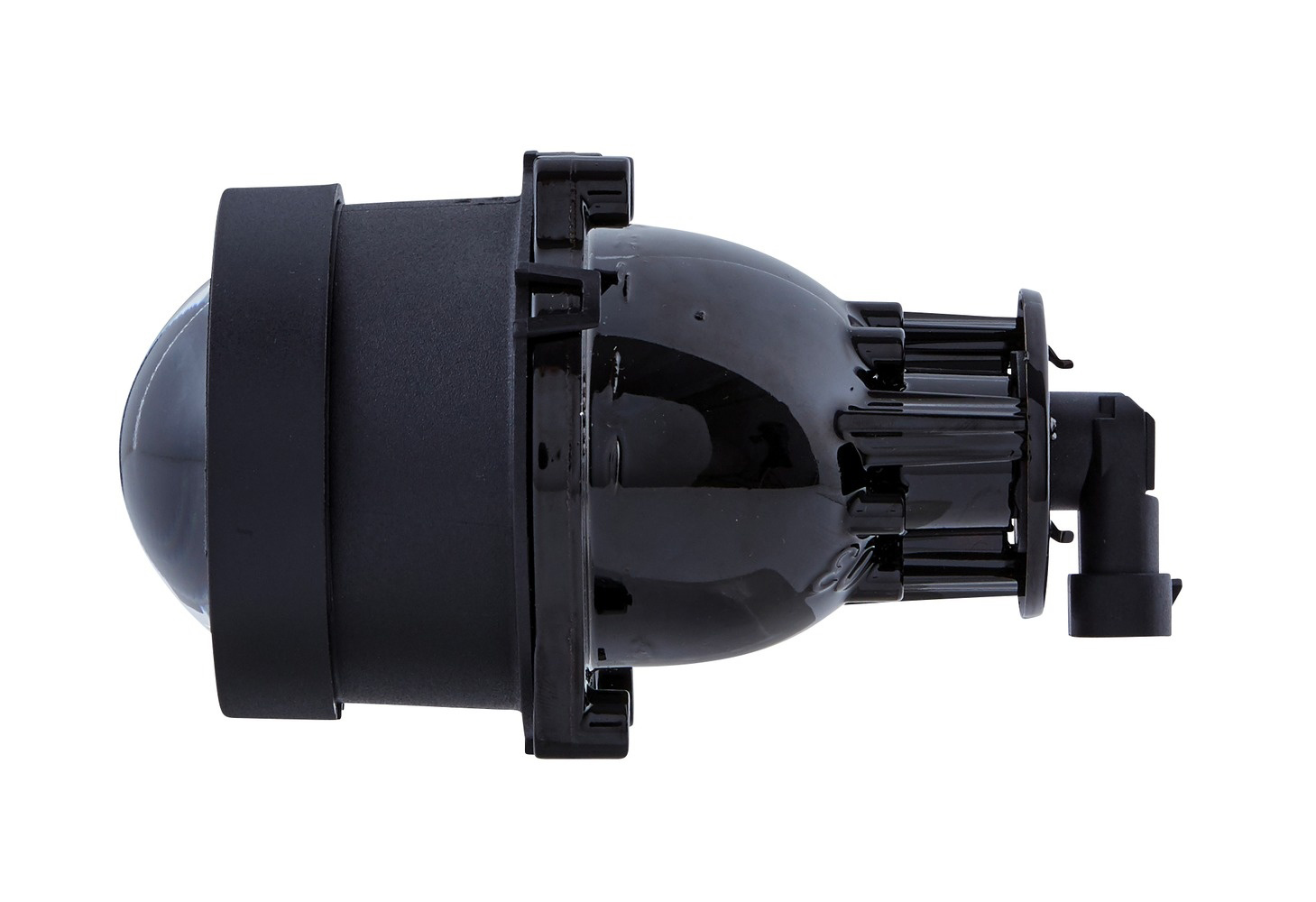

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

  • Universally usable
  • Compact design
  • Outstanding lighting performance
  • Width: 103mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb - with bulbs
  • Light functions: 1 - with low beam
  • Registration Type: ECE/SAE - for right-hand traffic
  • Housing Colour: Black

Specifications

Voltage12/24V
TechnologyHalogen
Light functionsDipped beam
MountingFitting
Bulb typeHB3
Fitting positionleft / right
Width103 mm
Height89 mm
Depth157 mm
Left-hand/right-hand trafficfor right-hand traffic
Shaperound
Housing colourblack
Illuminated area60 mm
Weight336 g
Part numberPT/998570001
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1BL 998 570-001
  • 21521560
  • 23119205
  • 3010414
  • 401017
  • 90507369
  • 17856502000
  • 11095076
  • 1057059
  • 76214002000
