DE/FF/Halogen-Headlight - 90mm Performance - 24V

Hella Part no. A25-003872 Previously PT/247043021

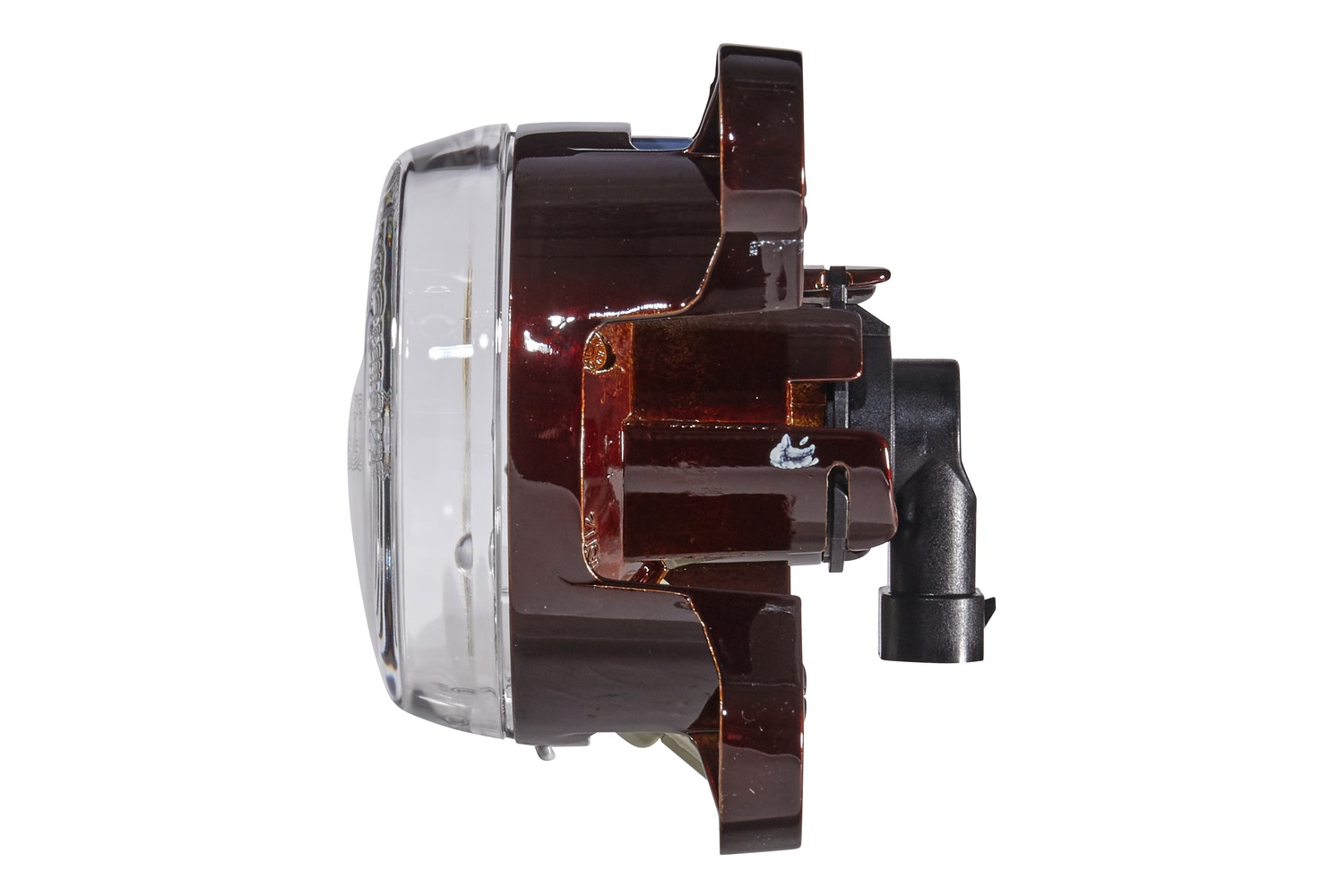

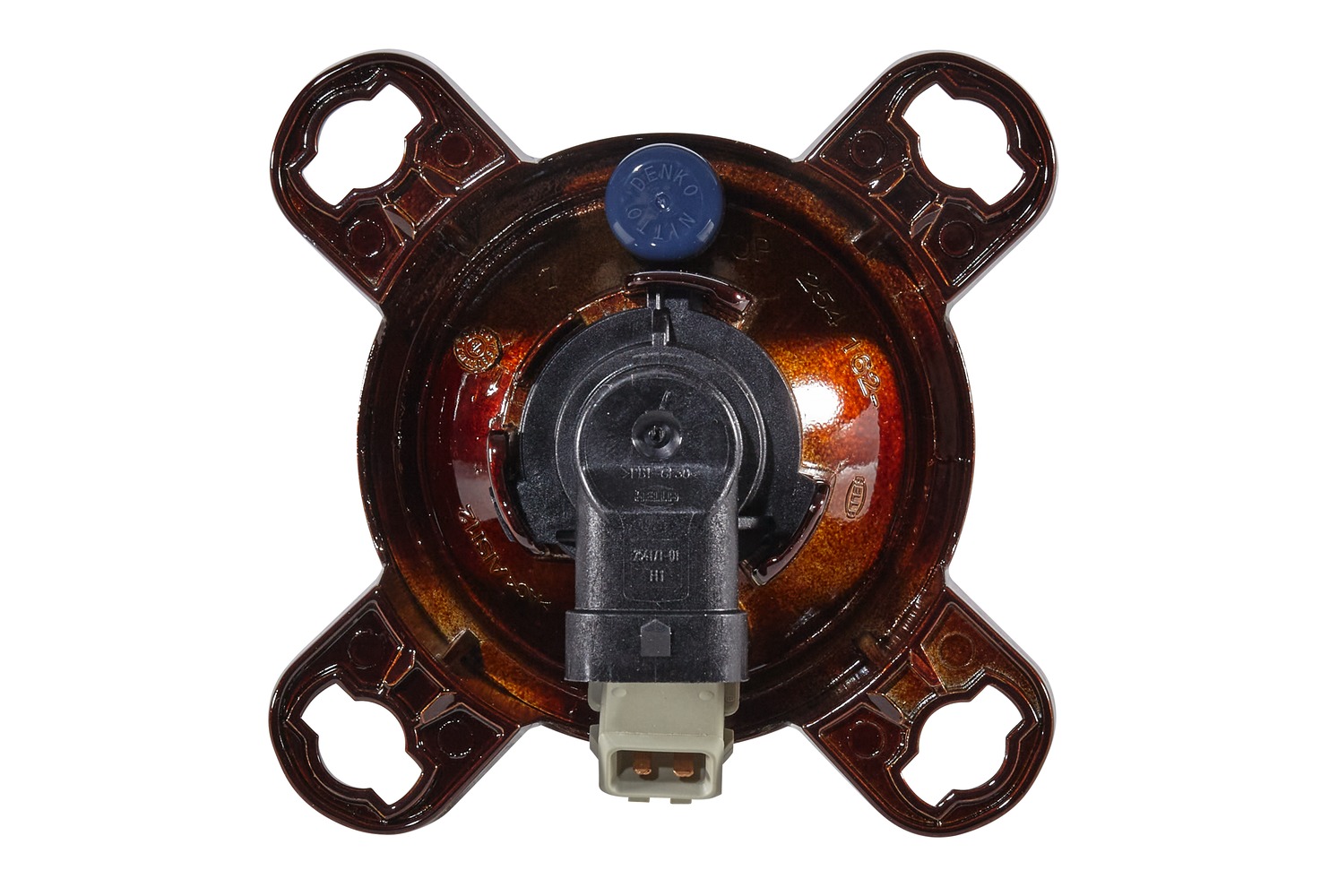

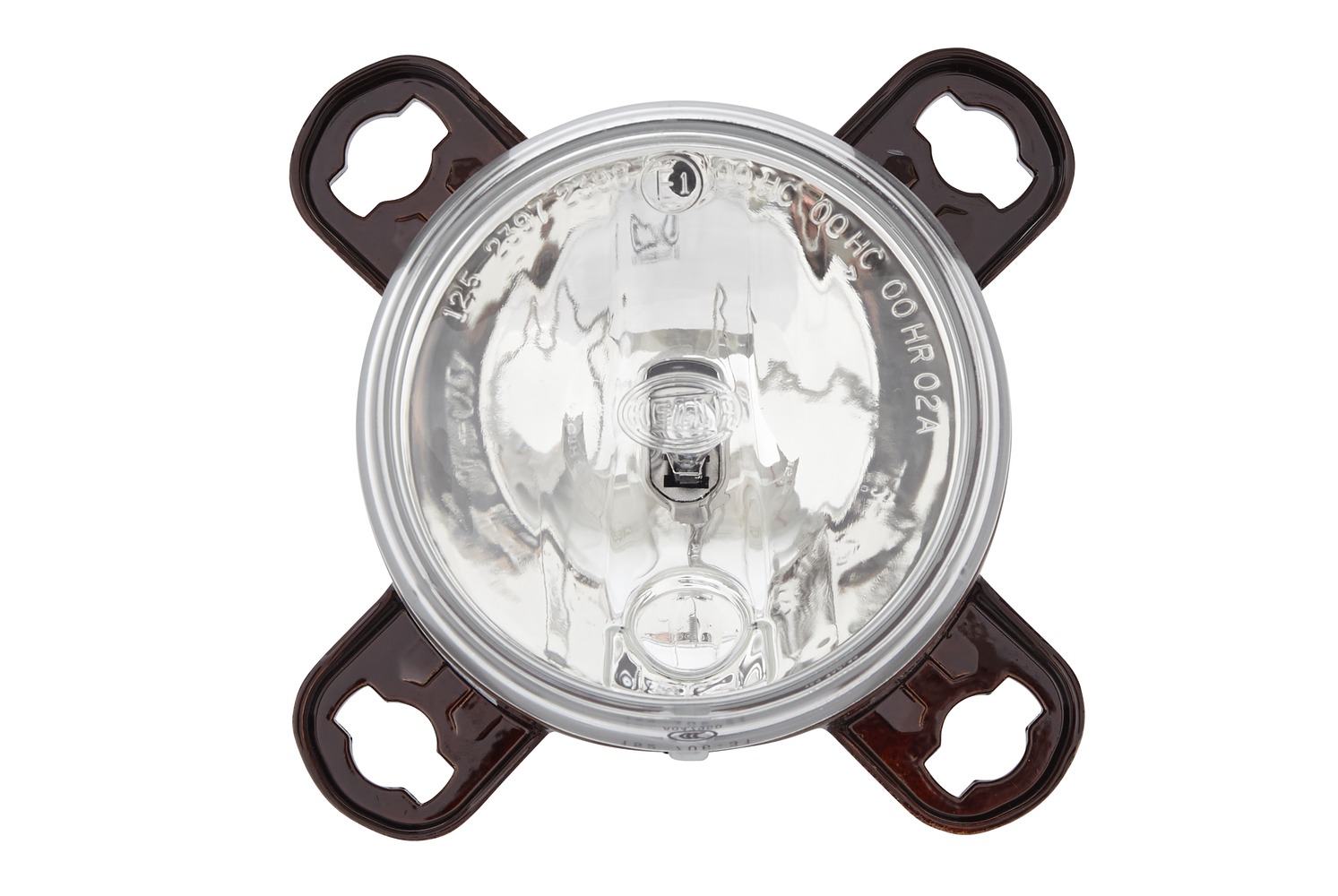

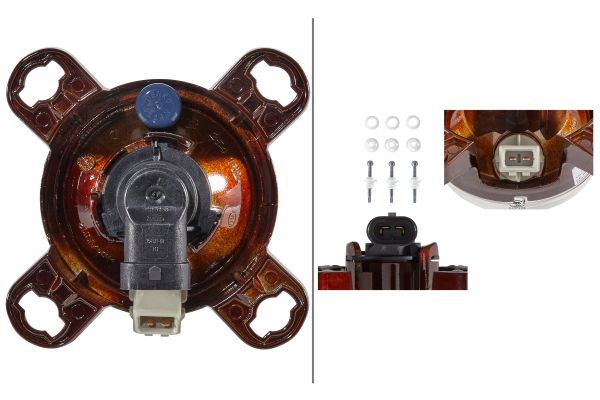

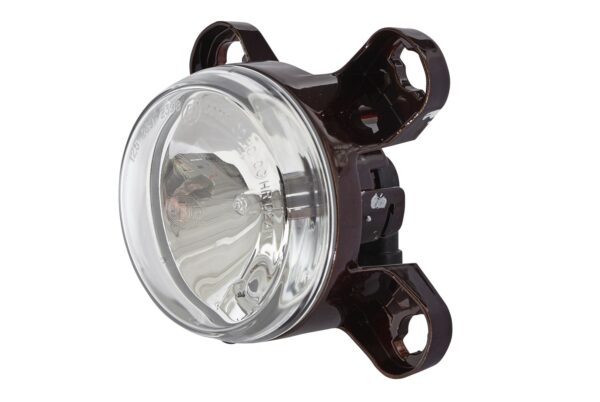

DE/FF/Halogen-Headlight - 90mm Performance - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£41.69 ex VAT
£50.03 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £6.50 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
Halogen
Light functions
High beam, Position light

About this tractor headlight

DE/FF/Halogen-Headlight - 90mm Performance - 24V is a Hella tractor headlight for 24V electrical systems. The light source is Halogen. Light functions: high beam, position light. Mounting: fitting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-003872 (previously PT/247043021), and it replaces or is equivalent to 1K0 247 043-021, 9568200239, 15122942, 21464473, 5801342354, 11341458 and 5 more.

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

  • Individual front design thanks to modular construction
  • Numerous application possibilities even in more demanding environments
  • Optimised light output and homogeneous illumination with little stray light

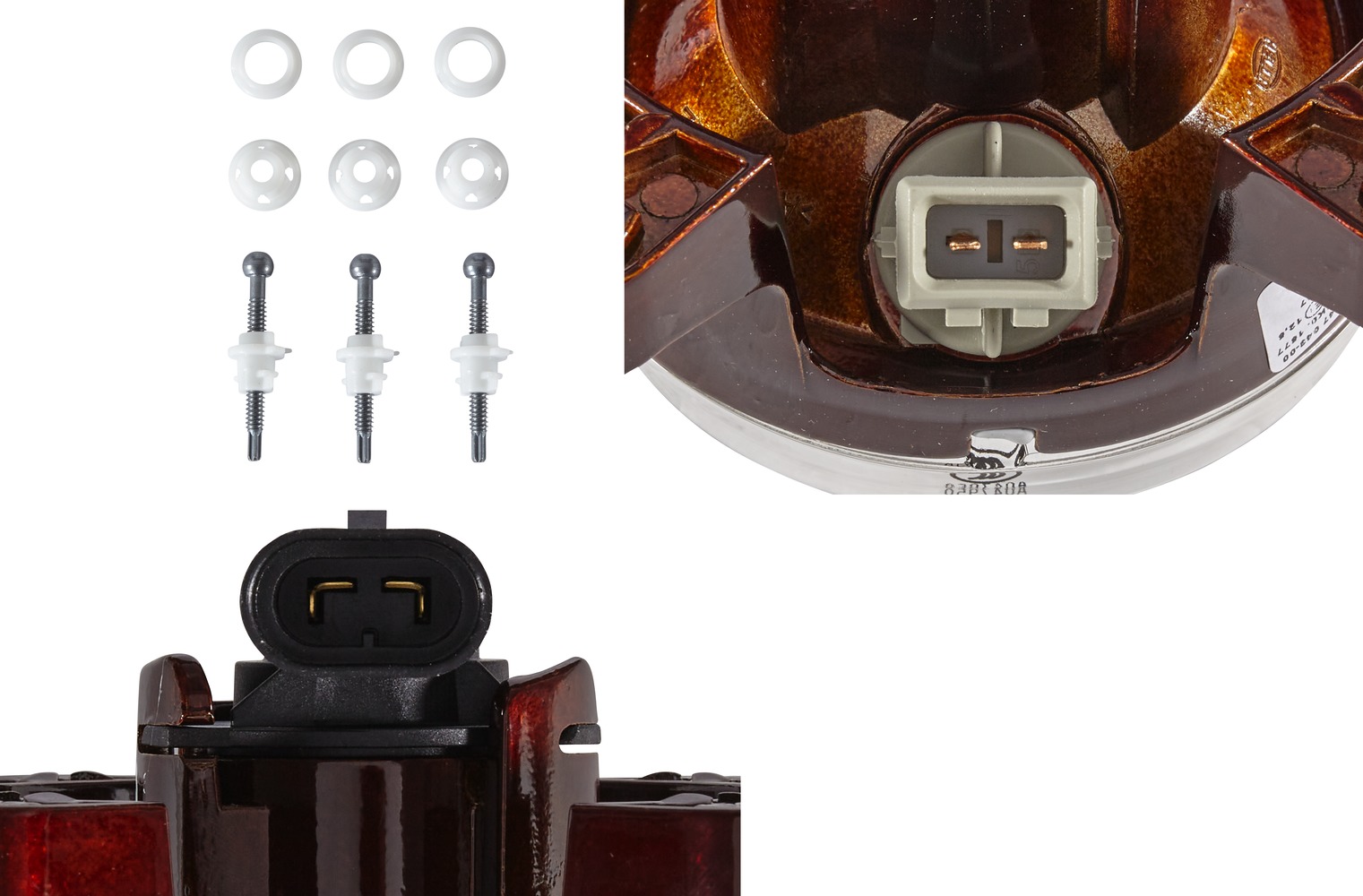

  • Water-protected standard plug-in system for incandescent lamps
  • Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1/T4W - with bulbs
  • Light functions: 2 - with high beam/with position light
  • Registration Type: ECE/CCC - for left-hand traffic/for right-hand traffic

Specifications

Voltage24V
TechnologyHalogen
Light functionsHigh beam, Position light
MountingFitting
Fastening3-point attachment
Bulb typeH1 / T4W
Fitting positionleft / right
Width113 mm
Height113 mm
Depth97 mm
Left-hand/right-hand trafficfor left-hand traffic / for right-hand traffic
Shaperound
Illuminated area90 mm
Weight261 g
Part numberA25-003872
BrandHella

Part numbers

Our part number for this item is A25-003872. It was previously listed as PT/247043021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1K0 247 043-021
  • 9568200239
  • 15122942
  • 21464473
  • 5801342354
  • 11341458
  • 10356824
  • 260529
  • 591586MA
  • A9568200239
  • 12.5

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £6.50 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
