LED-Daytime Running Light Set - 90mm - 24/12V
Shop rating 4.3, from 4 customer reviews of Agri LightingAvailable to order
-
Ordered in from our supplier
It usually reaches us the next working day and is dispatched the day it arrives - Free UK mainland delivery on this item. Surcharge postcodes and international
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- LED
- Lens colour
- Clear
- Light functions
- Daytime running light
- IP rating
- IP59K
About this daytime running light

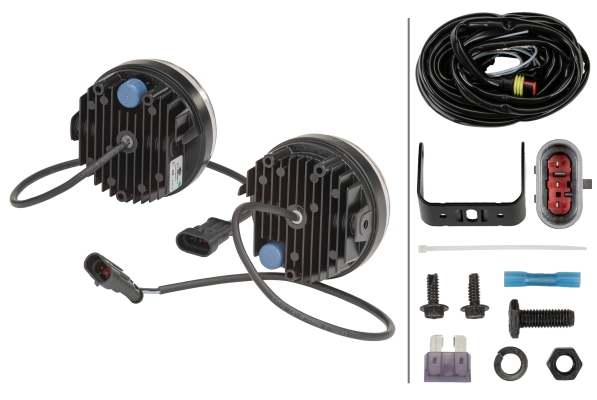

LED-Daytime Running Light Set - 90mm - 24/12V is a Hella daytime running light for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP59K. Light functions: daytime running light. Mounting: mounting. It carries R10 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is A25-001600 (previously PT/009599811), and it replaces or is equivalent to 2PT 009 599-811, 5431242, 600000223, 60000780, 60000870, 1528562 and 10 more.
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
- With 3 white LEDs
- Lens crystal clear
- Black aluminium housing
- Multivolt: 9V - 33V; power consumption: 12V < 5 W, 24V < 11 W, current consumption approx. 0.36 A at 12V/24V
- Weight per single unit: 320 g
- Height: 116mm - Lamp Type: LED - Number of LEDs: 3
- Light functions: 1 - with daytime running light (LED)
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | LED |
| Lens colour | Clear |
| Light functions | Daytime running light |
| IP rating | IP59K |
| Mounting | mounting |
| Fastening | Horizontal fastening |
| Bulb type | LED |
| Fitting position | Vehicle Front |
| Height | 116 mm |
| ECE approval | R10 |
| Number of LEDs | 3 |
| Shape | round |
| Power consumption | 11 W |
| Reverse polarity protection | Yes |
| Diffusing lens material | PC (Polycarbonate) |
| Weight | 980 g |
| Part number | A25-001600 |
| Brand | Hella |
Part numbers
Our part number for this item is A25-001600. It was previously listed as PT/009599811, and either number finds it in the search.
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 2PT 009 599-811
- 5431242
- 600000223
- 60000780
- 60000870
- 1528562
- 5801246744
- E5801246744
- 36252040047
- 2008002
- 2025803
- 4024760
- 410200028
- 410200028410200029
- 410200029
- A0005431242
