Hella Part no. A25-001599 Previously PT/009599141

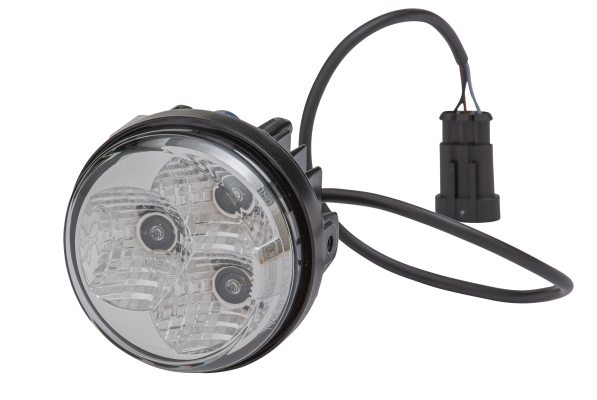

LED-Daytime Running Light - 90mm - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£76.91 ex VAT
£92.29 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Clear, White
Light functions
Daytime running light, Position light

About this daytime running light

LED-Daytime Running Light - 90mm - 12/24V is a Hella daytime running light for 12/24V electrical systems. The light source is LED, the lens is clear, white. Light functions: daytime running light, position light. It carries R87 / R7 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-001599 (previously PT/009599141), and it replaces or is equivalent to 2PT 009 599-141, 38206056, 5431342, HRK405001X069, 21434144, 20223141 and 15 more.

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

  • With 3 white LEDs
  • Lens crystal clear
  • Black aluminium housing
  • Multivolt: 9V - 33V; power consumption: 12V < 5 W, 24V < 11 W, current consumption approx. 0.36 A at 12V/24V
  • Weight per single unit: 320 g
  • Length: 93mm - Width: 93mm - Height: 66mm - Depth: 66mm - Lamp Type: LED - Number of LEDs: 3 - with cable
  • Light functions: 2 - with daytime running light (LED)/with position light (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear, White
Light functionsDaytime running light, Position light
Fitting positionright
Bulb typeLED
Length93 mm
Height66 mm
Width93 mm
Depth66 mm
ECE approvalR87 / R7 / R10
Number of LEDs3
ConnectorAMP
Cable500 mm
Led colourwhite
Shaperound
Housing colourblack
Weight263 g
Part numberA25-001599
BrandHella

Part numbers

Our part number for this item is A25-001599. It was previously listed as PT/009599141, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PT 009 599-141
  • 38206056
  • 5431342
  • HRK405001X069
  • 21434144
  • 20223141
  • 2300518
  • N007309
  • A0038206056
  • 172690
  • 11358909
  • 76102161
  • T092201556
  • 900530259
  • 5104150101
  • 410200039
  • 410200055
  • A0005431342
  • AHRK405001X069
  • 1640520
  • 30046075

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery is free for this item, as it is on every order over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
