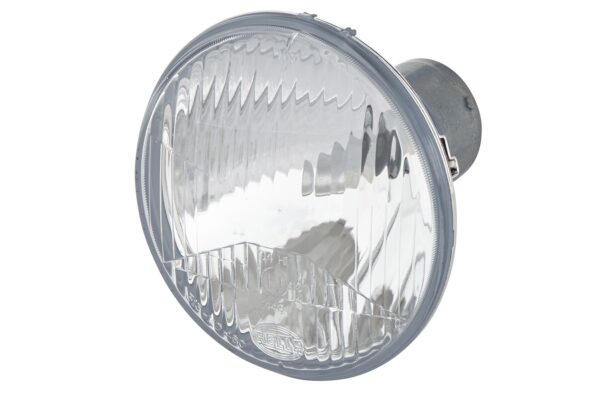

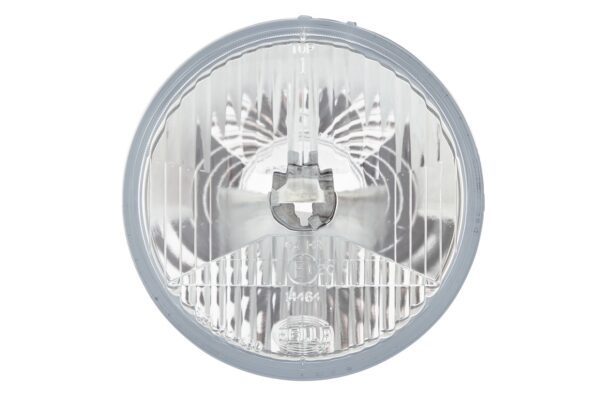

Halogen-Insert, headlight - 24/12V

Hella Part no. A25-003320 Previously PT/114155001

Halogen-Insert, headlight - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£26.97 ex VAT
£32.36 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
High beam

About this spare parts lighting

Halogen-Insert, headlight - 24/12V is a Hella spare parts lighting for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam. Mounting: fitting. It carries R8 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-003320 (previously PT/114155001), and it replaces or is equivalent to 1K3 114 155-001, 823941653, 1356409, 63121356409, 135640900, 96263104140 and 5 more.

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.

  • H1 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
  • The headlamp insert has 1 light function: High beam
  • Lamp type: H1, without bulb
  • Ø: 145mm - Height: 89mm - Depth: 88mm - Lamp Type: H1 - without bulb - with reflector
  • Light functions: 1 - with high beam
  • fulfils ECE norm: R8 - for right-hand traffic/for left-hand traffic
  • Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam
MountingFitting
FasteningClamp Mounting
Bulb typeH1
Fitting positionleft / right
Height89 mm
Depth88 mm
Ø145 mm
ECE approvalR8
Left-hand/right-hand trafficfor left-hand traffic / for right-hand traffic
Housing colourchrome / black
Illuminated area135 mm
Shaperound
Diffusing lens materialGlass
Weight417 g
Part numberA25-003320
BrandHella

Part numbers

Our part number for this item is A25-003320. It was previously listed as PT/114155001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1K3 114 155-001
  • 823941653
  • 1356409
  • 63121356409
  • 135640900
  • 96263104140
  • YBC988
  • 438179563
  • 609005W
  • 591023MA
  • 71401066

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
